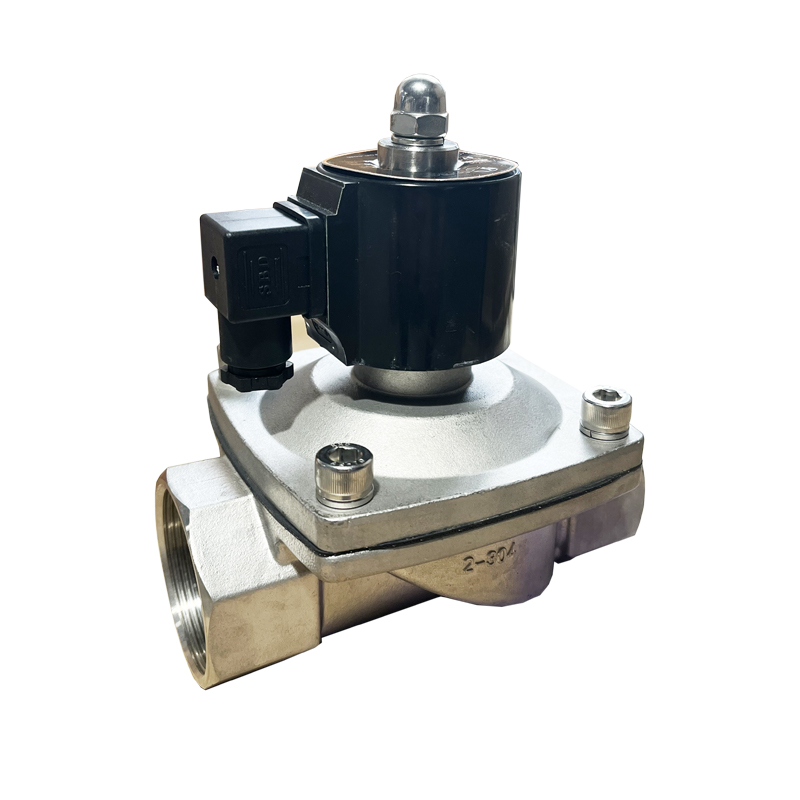

Model | 2S500 / 2S500-k |
Media | Air/ Water/ Oil |
Working Type | Direct Action |
Pattern | Normally Close / Normally Open |
Orifice | 50mm |
Cv Value | 48 |
Connection Ports | 2" |
Fluid Viscosity | ＜20CST |
Working Pressure | Air, Water, Gas 0~0.7 MPa |
Max Pressure | 1.0 MPa |
Working Temp. | -5~80 ℃ |
Rated Voltage | DC12-24V AC24V-380V ±10% |
Valve Body Material | Stainless Steel |
Seal Material | NBR / VITON / EPDM |
| Mode | A | B | C | D | K |
| 2S160-10 | 93 | 56 | 106 | 69 | G3/8" |
| 2S160-15 | 93 | 56 | 106 | 69 | G1/2" |
| 2S200-20 | 100 | 55 | 117 | 73 | G3/4" |
| 2S250-25 | 104 | 78 | 125 | 99 | G1" |
| 2S350-35 | 141 | 93 | 172 | 124 | G11/4" |
| 2S400-40 | 141 | 93 | 172 | 124 | G11/2" |
| 2S500-50 | 157 | 124 | 195 | 172 | G2" |
