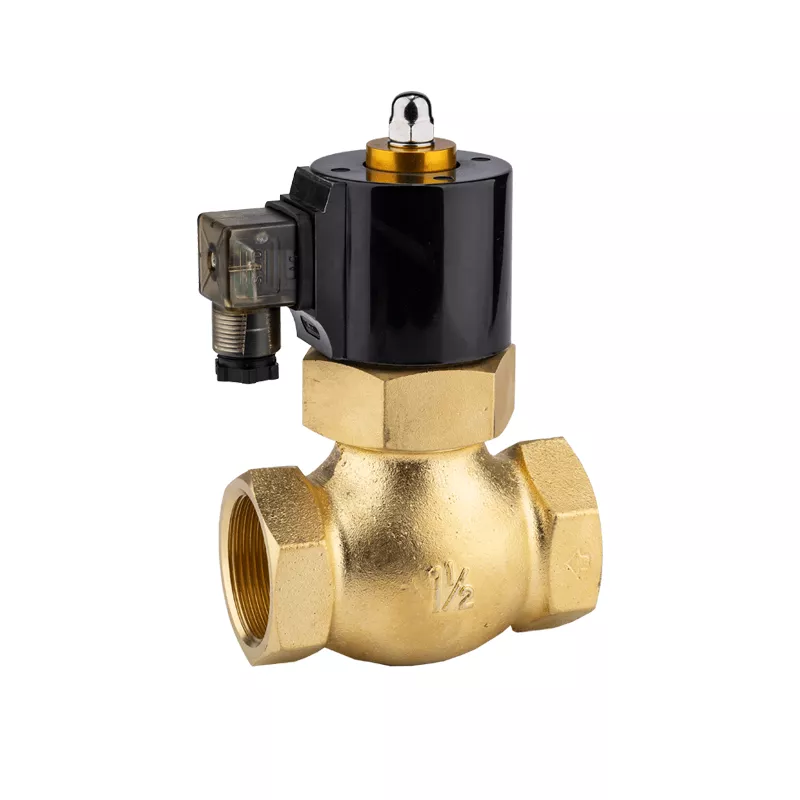

2L Valve
2L Valve
Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.
Standard Features: NC mode with a Brass body and NBR seal.
Thread: Uses standard G type.
Body Options: Available in SS304 or SS316 stainless steel.
Customizations: Viton seal for enhanced resistance; NPT threading available.

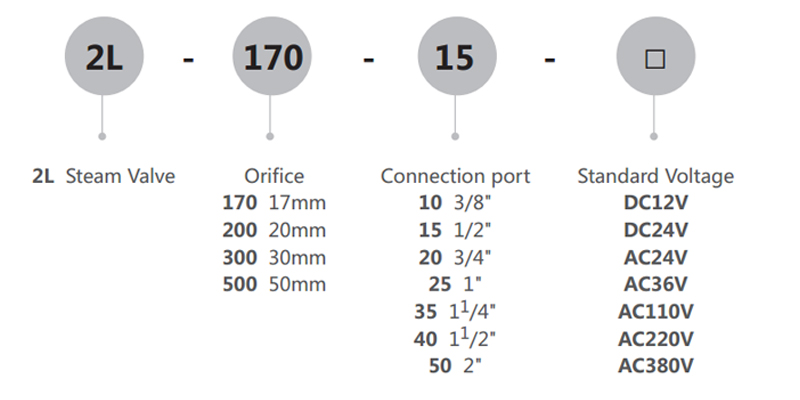

Ordering Code
Parameter
| Model | 2L-300 |
| Media | Air/ Water/ Oil |
| Working Type | Piston Type |
| Pattern | Normally Close |
| Orifice | 30mm |
| Cv Value | 20 |
| Connection Ports | 1-1/4" / 1-1/2" |
| Fluid Viscosity | ＜20CST |
| Working Pressure | 0~1.5 MPa |
| Max Pressure | 2.5 MPa |
| Working Temp. | -5~180 ℃ |
| Rated Voltage | DC12-24V AC24V-380V ±10% |
| Valve Body Material | Brass |
| Seal Material | NBR / VITON / EPDM |

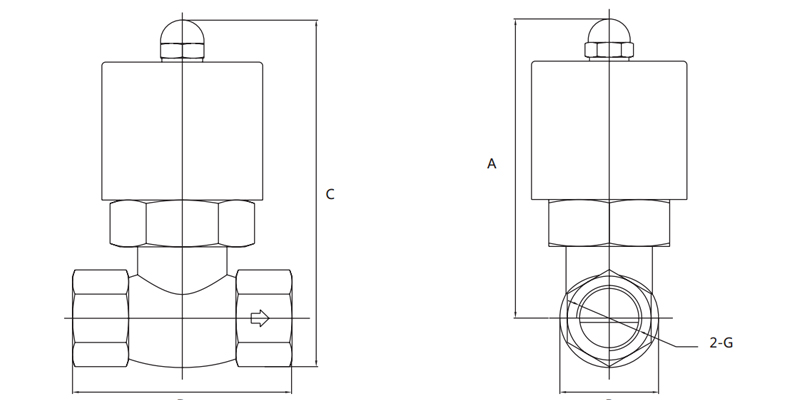

Overall Dimension
| Mode | A | B | C | D | G |
| 2L170-10 | 125 | 42 | 146 | 82 | 3/8" |
| 2L170-15 | 125 | 42 | 146 | 82 | 1/2" |
| 2L170-20 | 125 | 42 | 146 | 82 | 3/4" |
| 2L200-25 | 136 | 52 | 162 | 90.5 | 1" |
| 2L300-35 | 148 | 74 | 185 | 111 | 11/4" |
| 2L300-40 | 148 | 74 | 111 | 185 | 11/2" |
| 2L500-50 | 176 | 94.5 | 223 | 163 | 2" |
