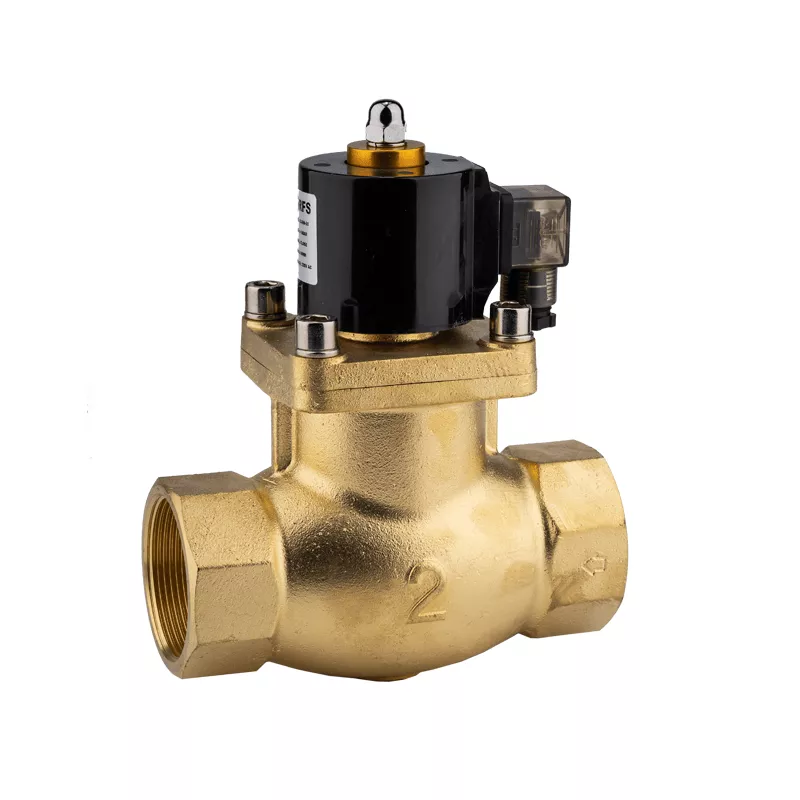

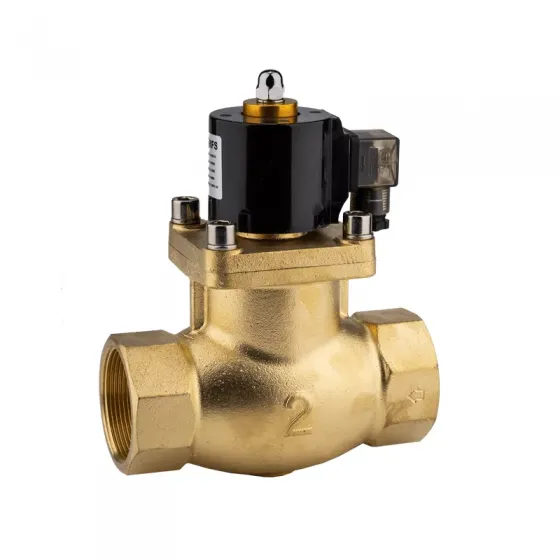

2L-500 Solenoid Valve

  • Pressure Handling: Two-way valves are designed to handle specific pressure ranges. It's important to select a valve that can withstand the operating pressure of the system.

  • Flow Control: They are used for on/off control but can also be used for basic throttling of flow. Some two-way valves are designed to control flow rate.

  • Applications: These valves are used in a wide range of applications including HVAC systems, water supply, industrial process control, and irrigation systems.

  • Sealing Mechanisms: The sealing of the valve is crucial for preventing leaks. Common sealing materials include PTFE (Teflon), EPDM, and NBR, chosen based on compatibility with the fluid.

  • Connection Types: Connection types can vary, including threaded, flanged, or compression fittings, depending on the system requirements.

  • Maintenance and Durability: Generally, two-way valves are low-maintenance and have a long service life, but this can vary based on the type of valve and application.



2L Solenoid Valve Datesheet

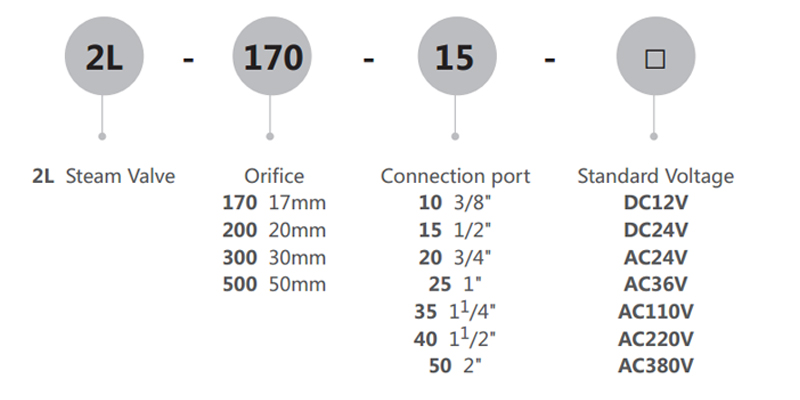

Ordering Code

2L-500 Solenoid Valve


Parameter

Model2L-500
MediaAir/ Water/ Oil
Working TypePiston Type
PatternNormally Close
Orifice50mm
Cv Value48
Connection Ports2"
Fluid Viscosity<20CST
Working Pressure0~1.5 MPa
Max Pressure2.5 MPa
Working Temp.-5~180 ℃
Rated VoltageDC12-24V AC24V-380V ±10%
Valve Body MaterialBrass
Seal MaterialNBR / VITON / EPDM

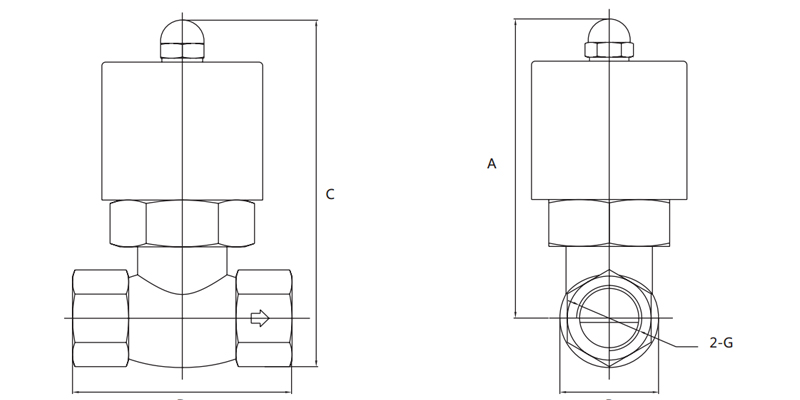

Overall Dimension

2L-500 Solenoid Valve


ModeABCDG
2L170-1012542146823/8"
2L170-1512542146821/2"
2L170-2012542146823/4"
2L200-251365216290.51"
2L300-351487418511111/4"
2L300-401487411118511/2"
2L500-5017694.52231632"
