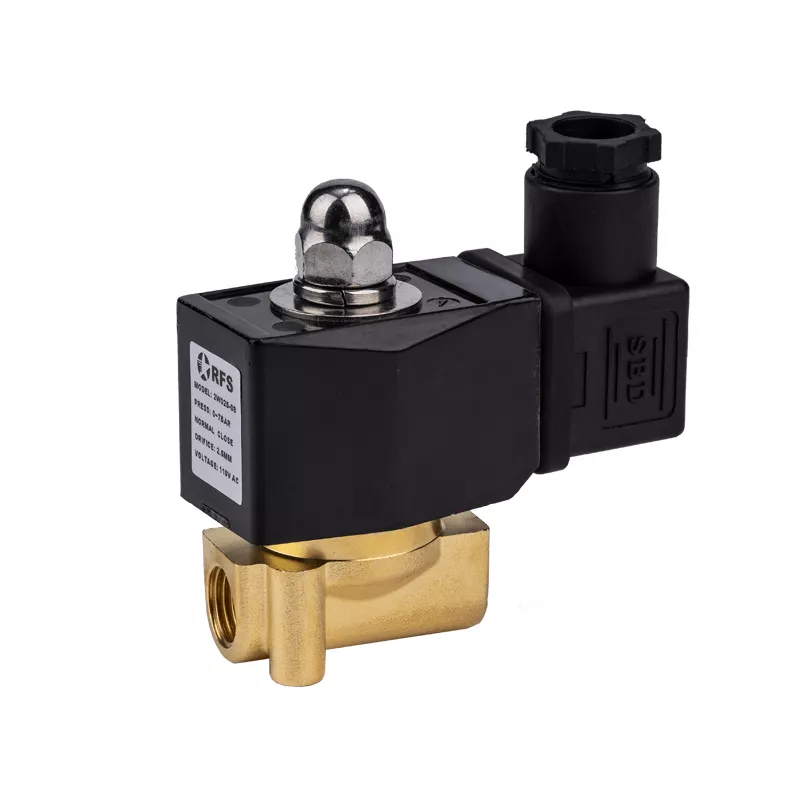

2W/S Valve
2W/S Valve
Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.
Standard Features: NC mode with a Brass body and NBR seal.
Thread: Uses standard G type.

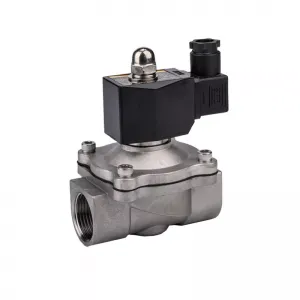

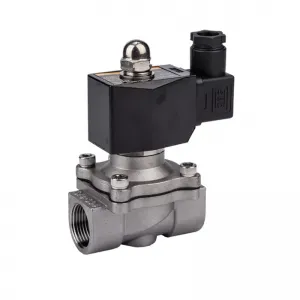

Body Options: Available in SS304 or SS316 stainless steel.
Customizations: Viton seal for enhanced resistance; NPT threading available.

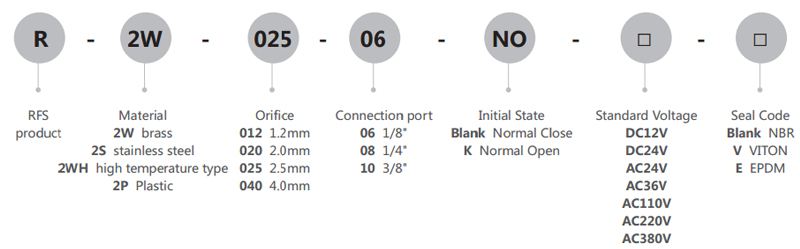

Ordering Code
Parameter
| Model | 2W025 / 2W025-K |
| Media | Air/ Water/ Oil |
| Working Type | Direct Action |
| Pattern | Normally Close / Normally Open |
| Orifice | 2.5mm |
| Cv Value | 0.23 |
| Connection Ports | 1/8" or 1/4" |
| Fluid Viscosity | ＜20CST |
| Working Pressure | Air, Water, Gas 0~0.7 MPa |
| Max Pressure | 1.0 MPa |
| Working Temp. | -5~80 ℃ |
| Rated Voltage | DC12-24V AC24V-380V ±10% |
| Valve Body Material | Brass |
| Seal Material | NBR / VITON / EPDM |

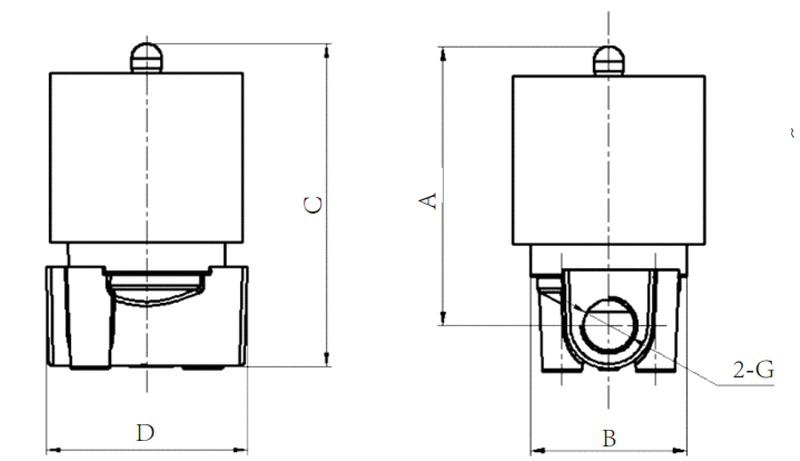

Overall Dimension
| Mode | A | B | C | D | G |
| 2W025-06 | 66 | 30 | 75 | 40.5 | G1/8" |
| 2W025-08 | 66 | 30 | 75 | 40.5 | G1/4" |
| 2W040-10 | 72.5 | 32 | 83.5 | 55 | G3/8" |
| 2W012-06 | 66 | 30.3 | 75 | 40.5 | G1/8" |
| 2W012-08 | 66 | 30.3 | 75 | 40.5 | G4/8" |
| 2W020-10 | 74 | 32.2 | 85.5 | 52.5 | G3/8" |
