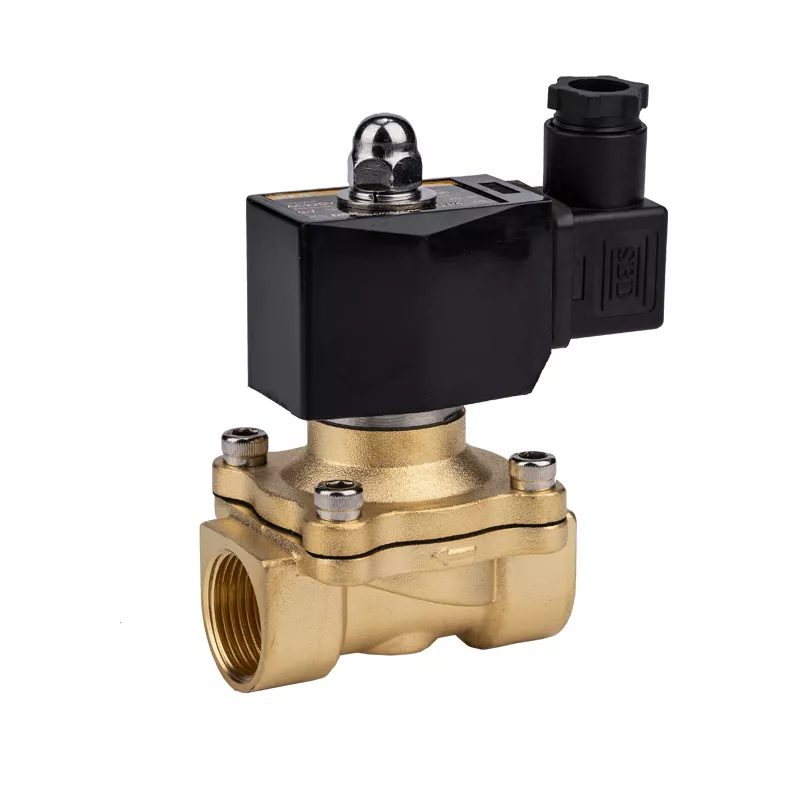

2W/S Valve
2W/S Valve
Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.
Standard Features: NC mode with a Brass body and NBR seal.
Thread: Uses standard G type.
Body Options: Available in SS304 or SS316 stainless steel.
Customizations: Viton seal for enhanced resistance; NPT threading available.
2W(S) Valve Datesheet

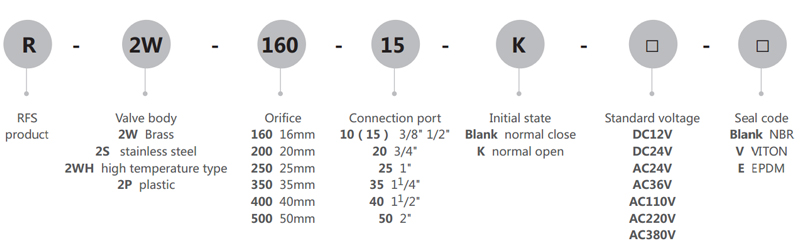

Ordering Code
Parameter
| Model | 2W250 / 2W250-K |
| Media | Air/ Water/ Oil |
| Working Type | Direct Action |
| Pattern | Normally Close / Normally Open |
| Orifice | 25mm |
| Cv Value | 12 |
| Connection Ports | 1" |
| Fluid Viscosity | ＜20CST |
| Working Pressure | Air, Water, Gas 0~0.7 MPa |
| Max Pressure | 1.0 MPa |
| Working Temp. | -5~80 ℃ |
| Rated Voltage | DC12-24V AC24V-380V ±10% |
| Valve Body Material | Brass |
| Seal Material | NBR / VITON / EPDM |

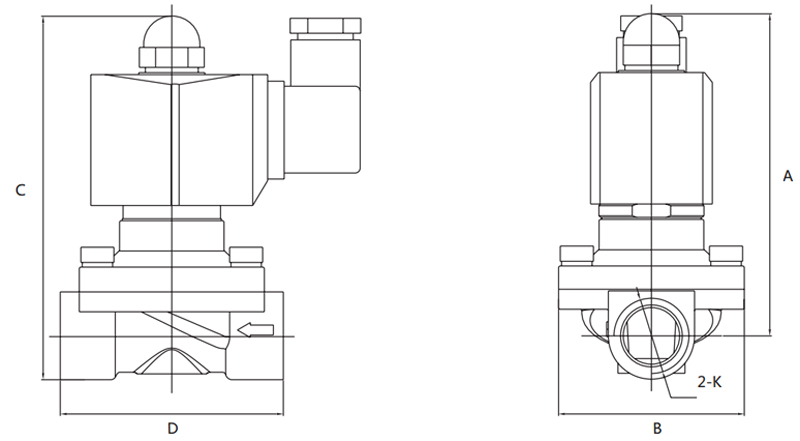

Overall Dimension
| Mode | A | B | C | D | K |
| 2w160-10 | 93 | 56 | 106 | 69 | G3/8" |
| 2w160-15 | 93 | 56 | 106 | 69 | G1/2" |
| 2w200-20 | 100 | 55 | 117 | 73 | G3/4" |
| 2w250-25 | 104 | 78 | 125 | 99 | G1" |
| 2w350-35 | 141 | 93 | 172 | 124 | G11/4" |
| 2w400-40 | 141 | 93 | 172 | 124 | G11/2" |
| 2w500-50 | 157 | 124 | 195 | 172 | G2" |
