Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.
Standard Features: NC mode with a Brass body and NBR seal.
Thread: Uses standard G type.
Body Options: Available in SS304 or SS316 stainless steel.
Customizations: Viton seal for enhanced resistance; NPT threading available.
2W(S) Valve Datesheet

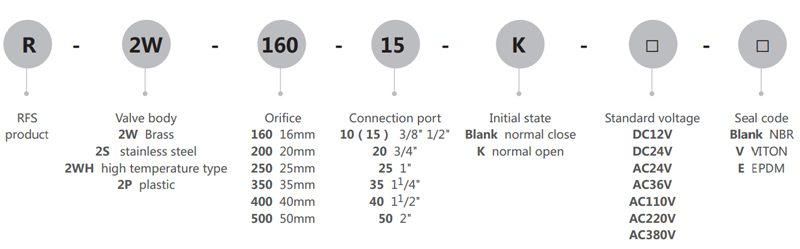

Ordering Code
Parameter
Model | 2W400 / 2W400-K |
Media | Air/ Water/ Oil |
Working Type | Direct Action |
Pattern | Normally Close / Normally Open |
Orifice | 40mm |
Cv Value | 29 |
Connection Ports | 1-1/2" |
Fluid Viscosity | <20CST |
Working Pressure | Air, Water, Gas 0~0.7 MPa |
Max Pressure | 1.0 MPa |
Working Temp. | -5~80 ℃ |
Rated Voltage | DC12-24V AC24V-380V ±10% |
Valve Body Material | Brass |
Seal Material | NBR / VITON / EPDM |

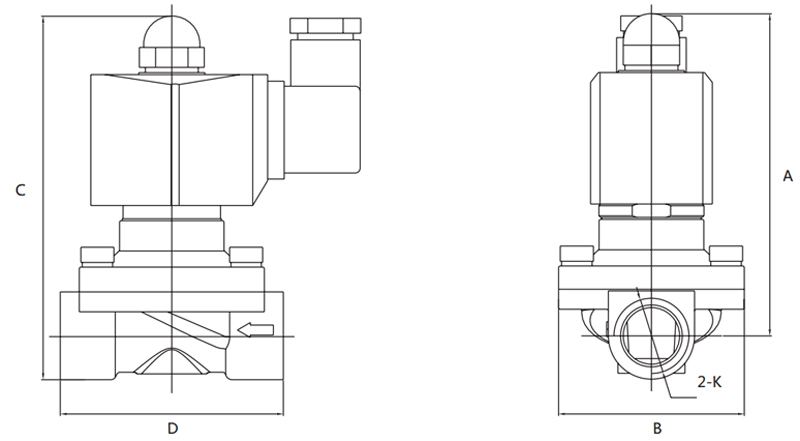

Overall Dimension
Mode | A | B | C | D | K |
2w160-10 | 93 | 56 | 106 | 69 | G3/8" |
2w160-15 | 93 | 56 | 106 | 69 | G1/2" |
2w200-20 | 100 | 55 | 117 | 73 | G3/4" |
2w250-25 | 104 | 78 | 125 | 99 | G1" |
2w350-35 | 141 | 93 | 172 | 124 | G11/4" |
2w400-40 | 141 | 93 | 172 | 124 | G11/2" |
2w500-50 | 157 | 124 | 195 | 172 | G2" |
