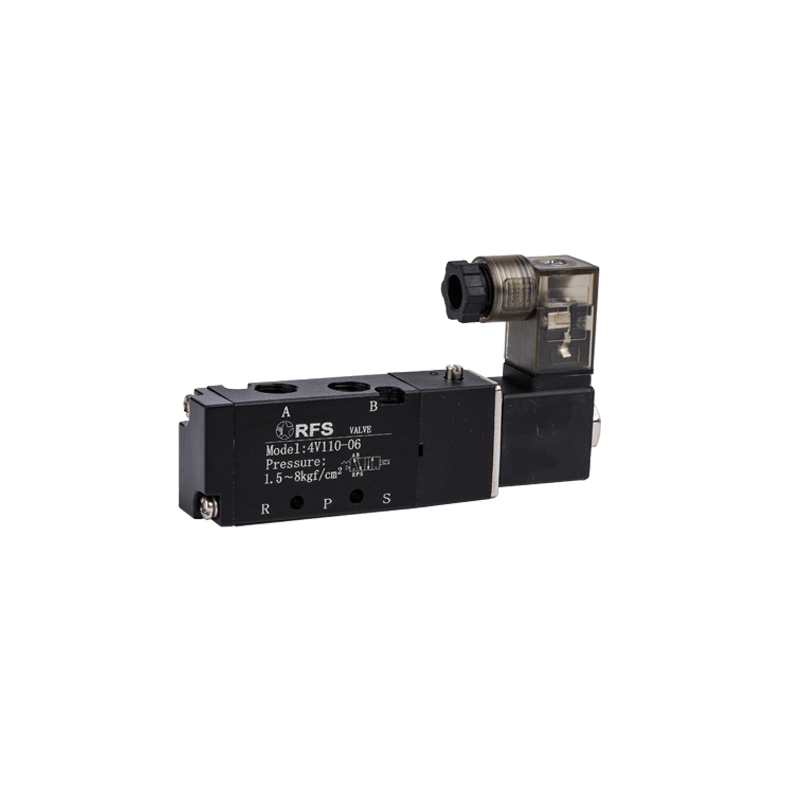

4V110-06

Share to:

4V100 Series Pneumatic valve have 5/2 ,5/3 ,3/2 type solenoid control valve and air control valve ,With M5x0.8 and 1/8 connection size ,Thread and Namur type are available ,Voltage can be customized from 12V - 240V DC/AC

  • 4V110-06
  • RFS
Availability:

Product Details

Ordering Code

20170515161920_85156

Mode 4V110-M5 4V120-M5 4V130C-M5 4V130E-M5 4V130P-M5 4V110-06 4V120-06 4V130C-06 4V130E-06 4V130P-06
4A110-M5 4A120-M5 4A130C-M5 4A130E-M5 4A130P-M5 4A110-06 4A120-06 4A130C-06 4A130E-06 4A130P-06
Type 5/2 5/3 5/2 5/3
Flow rate 10mm2(Cv=0.56) 7mm2(Cv=0.40) 12mm2(Cv=0.67) 9mm2(Cv=0.5)
Model 3V110-M5 3V120-M5 3A110-M5 3A120-M5 3V110-06 3V120-06 3A110-06 3A120-06
Type 3/2 3/2
Flow rate 10mm2(Cv=0.56) 12mm2(Cv=0.67)
Connection ports Inlet = Outlet = Exhaust = M5x0.8 Inlet = Outlet = Exhaust = G1/8"
Media Clean air
Working type Pilot
Working pressure 0.15 ~ 0.8MPa
Max. pressure 1.2MPa
Ambient temp -5 ~ 50℃
Voltage tolerance ±10%
Power AC:2.5VA DC:2.5W
Insulation class
Protection class
F class. IP65
Terminal Flying Lead Or Din43650C PIN
Frequency 5 cycles/s
Response time 0.05s

Overall Dimension

4v110-06
