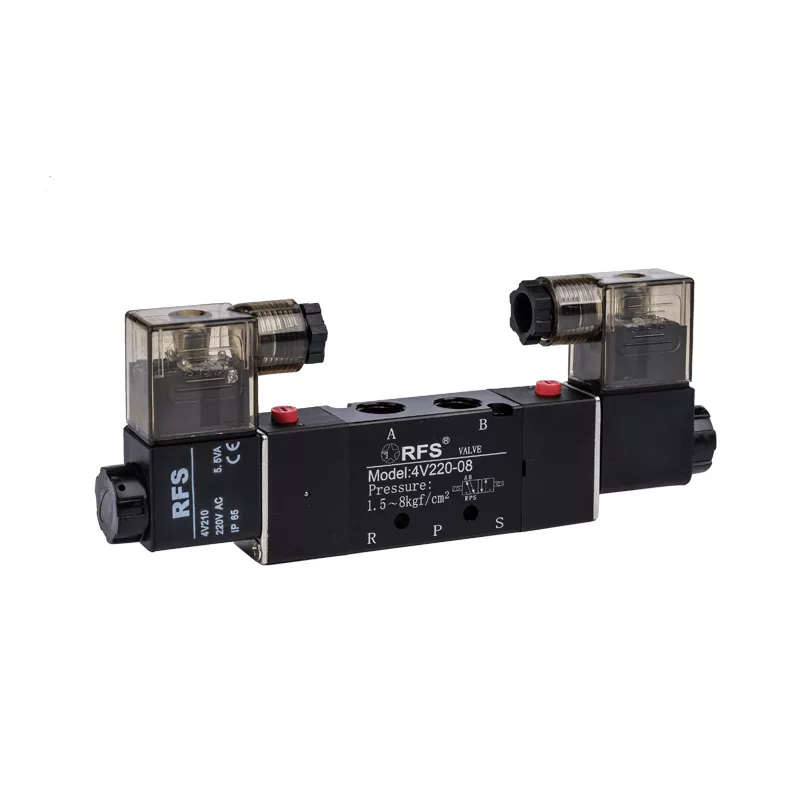

4V Valve
4V Valve
Multiple Mounting Options: Can be base mounted, sub-base mounted, or manifold mounted for flexibility in installation.
Manual Override Option: Often includes a manual override for troubleshooting or manual operation in case of power failure.
Low Power Consumption: Engineered to operate efficiently with low power consumption.
Wide Range of Operating Pressures: Suitable for a broad range of pressure requirements.
LED Indicators: Visual indicators for easy monitoring of operational status.
4V(3V) 200 Series Datesheet

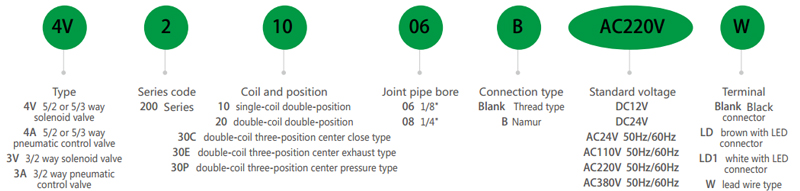

Ordering Code
Parameter
| Mode | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | ||||||||
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |||||||||
| Type | 5/2 | 5/3 | 5/2 | 5/3 | ||||||||||||||
| Flow rate | 14mm2（Cv=0.78） | 12mm2（Cv=0.67） | 16mm2（Cv=0.89） | 12mm2（Cv=0.67） | ||||||||||||||
| Model | 3V210-06 | 3V220-06 | 3A210-06 | 3A220-06 | 3V210-08 | 3V220-08 | 3A210-08 | 3A220-08 | ||||||||||
| Type | 3/2 | 3/2 | ||||||||||||||||
| Flow rate | 14mm2（Cv=0.78) | 16mm2（Cv=0.89） | ||||||||||||||||
| Connection ports | Inlet = Outlet = Exhaust = G1/8" | Inlet = Outlet = G1/4" Exhaust = G1/8" | ||||||||||||||||
| Media | Clean air | |||||||||||||||||
| Working type | Pilot | |||||||||||||||||
| Working pressure | 0.15 ~ 0.8MPa | |||||||||||||||||
| Max. pressure | 1.2MPa | |||||||||||||||||
| Ambient temp | -5 ~ 50℃ | |||||||||||||||||
| Voltage tolerance | ±10% | |||||||||||||||||
| Power | AC:4.5VA DC:3W | |||||||||||||||||
| Insulation class Protection class | F class. IP65 | |||||||||||||||||
| Terminal | Flying Lead Or Din43650B PIN | |||||||||||||||||
| Frequency | 5 cycles/s | |||||||||||||||||
| Response time | 0.05s | |||||||||||||||||

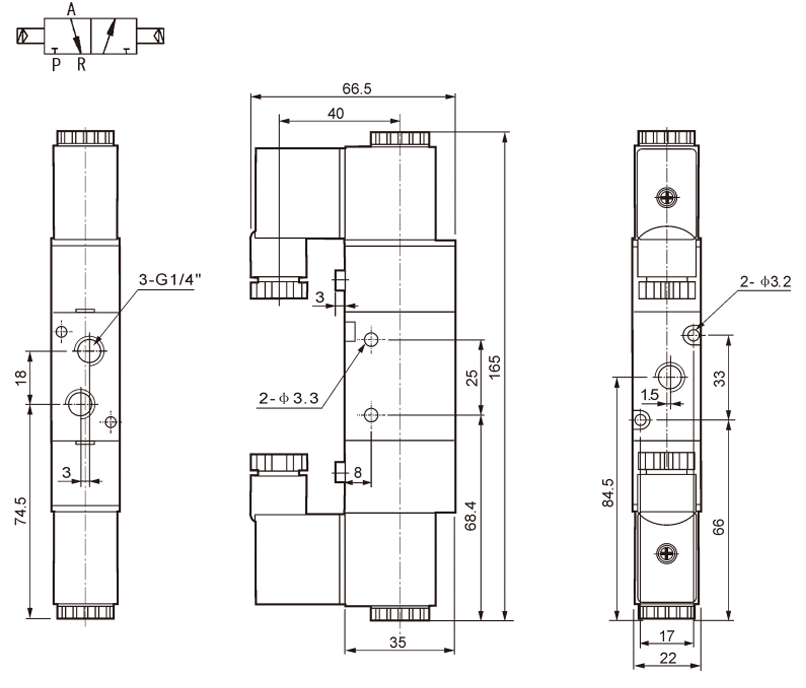

Overall Dimension
