Home - Products-Pneumatic and Automation Components-Directional Control Valve-4V Valve-3V320-10

3V320-10

  • High Flow Rates: Designed to handle high flow rates, ensuring efficient operation in various applications.

  • Robust Construction: Durable build to withstand challenging industrial environments.

  • Double or Single Solenoid Operation: Options for either double solenoid for bistable operation or single solenoid for spring return functionality.

  • Multiple Mounting Options: Can be base mounted, sub-base mounted, or manifold mounted for flexibility in installation.

  • Manual Override Option: Often includes a manual override for troubleshooting or manual operation in case of power failure.


4V(3V) 300 Series Datesheet

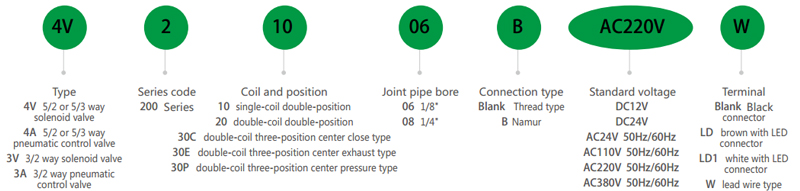

Ordering Code


3V320-10



Parameter


Mode4V310-084V320-084V330C-084V330E-084V330P-084V310-104V320-104V330C-104V330E-104V330P-10
4A310-084A320-084A330C-084A330E-084A330P-084A310-104A320-104A330C-104A330E-104A330P-10
Type5/25/35/25/3
Flow rate25mm2(Cv=1.40)18mm2(Cv=1.00)30mm2(Cv=1.68)18mm2(CV=1.0)
Model3V310-083V320-083A310-083A320-083V310-103V320-103A310-103A320-10
Type3/23/2
Flow rate25mm2(Cv=1.40)30mm2(Cv=1.68)
Connection portsInlet = Outlet = Exhaust = G1/4"Inlet = Outlet = G3/8" Exhaust = G1/4"
MediaClean air
Working typePilot
Working pressure0.15 ~ 0.8MPa
Max. pressure1.2MPa
Ambient temp-5 ~ 50℃
Voltage tolerance±10%
PowerAC:4.5VA DC:3W
Insulation class
Protection class
F class. IP65
TerminalFlying Lead Or Din43650B PIN
Frequency5 cycles/s
Response time0.05s

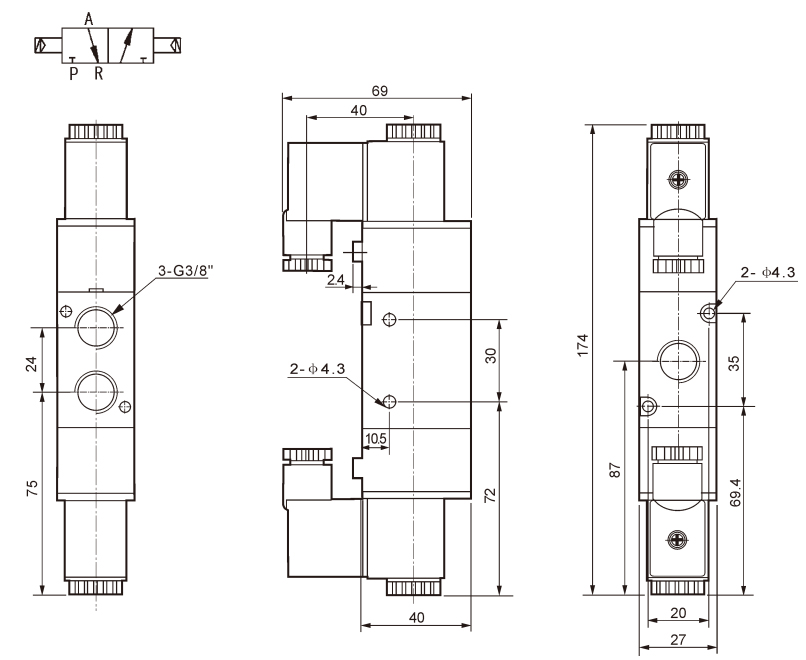

Overall Dimension


3V320-10
