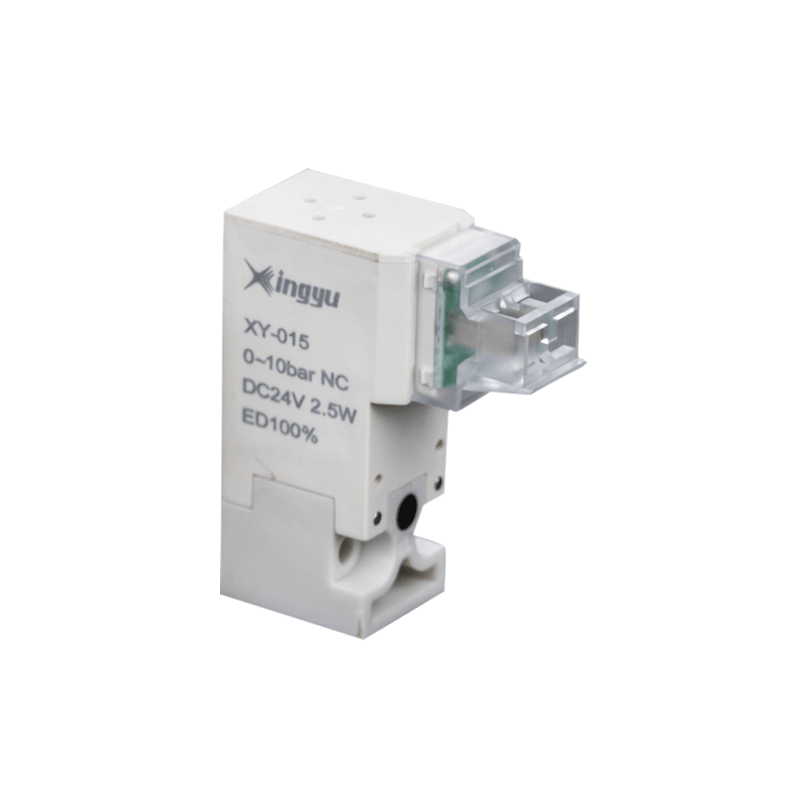

Mirco Valve XY-15

Share to:
Mirco valve is mini solenoid valve.It can used in single or manifold for different application ,One inlet with several outlets based on manifold Mostly used in textile machine ,stocking machine ,Knitting Machine etc ,Also as pilot valve for the pilot type valve or control the mini cylinders.
10mm valves with CE certified,Long life time ,Low power ,Minifold mirco valve also available ,widely used in knniting micro valve.
The valve island is a control component composed of several electric control valves.valve islands integrates signal input/output and signal control as a control island.
  • XY-15
  • RFS
Availability:

Product Details

XY015 订购码

Model

XY-015

Type

3/2

Connection Type

PIN / Vertical / Paraller / Vertical

Working Type

N.C, Direct Action

Voltage

DC12V / DC24V / AC110V / AC220V

Electrified Rate

ED100%

Working Pressure

0-7 bar

Insulation Class

H

Protection Class

IP65

Power

2.5W

Working Temp.

-5~80 ℃

Response Time

Within 10ms

Max. Frequency

30Hz

Ambient Temp.

-10~+55℃

Overall Dimension

xy-015 material

pintypeparallerverticalboth
