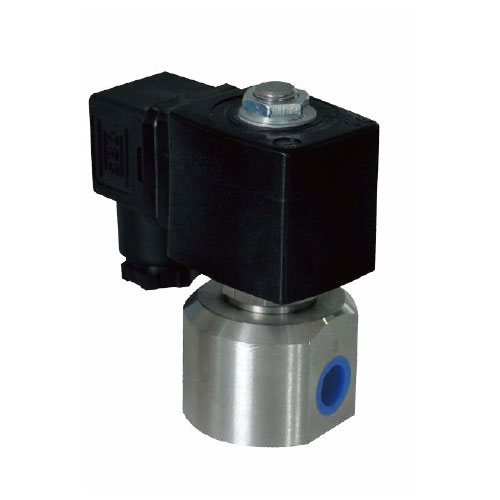

RMF-22.23 Multi-Use SS valve
Home » Products » Solenoid Valve » OEM Solenoid Valve » RMF-22.23 Multi-Use SS valve
RMF-22.23 Multi-Use SS valve RMF-22.23 Multi-Use SS valve

loading

RMF-22.23 Multi-Use SS valve

Share to:
RMF22.23 is inox valves can widely used in different application ,orifice from 2-5mm can be choosed ,G1/8 ,G1/4 ,G3/8 three size available.
Medical valves have the characteristics of good sealing performance and long service life.

  • RMF-22.23

  • RFS

Availability:
Inquire Add to Basket

Product Details

Model RMF23-SS RMF22-SS
Media Clean Air /Water /Oil / Solvent /Weak Acid /Weak Alkali
Working Type Direct Action 3/2 Direct Action 2/2
Pattern Normally Close / Normally Open /Divert
Orifice 2 2 3 3.5 4 5
Working pressure NC NO Divert 5.5 2.5 1.6 1.4 0.8
0.7 0.7 1.6
Connection Port G1/8 .G1/4 ,G3/8
Working Temperature -5~ 80 ℃ / ~40-180 ℃
Valve body material SS316
Seal Material NBR / EPDM / VITON

Overall Dimension

RMF22
