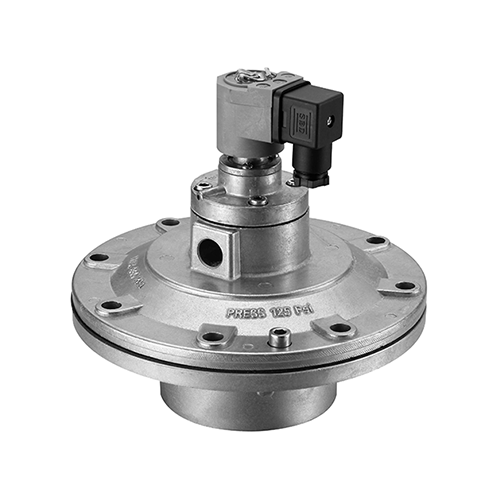

RMF-Y-86S

Share to:
  • Quick mount,86 orifice,DN90 port
  • Quick mounting solenoid pulse valve is easy to operate;
  • Pulse jet solenoid valve suitable for dust remover filter system.
  • Air Control 90mm Pipe Bore Pulse Valve with big flow for effective cleaning;
  • In Line Solenoid Pulse Valve with NBR seal and VITON diaphragm for option;

  • RMF-Y-86S

  • RFS

Availability:
Inquire Add to Basket

Product Details

Model RMF-Y-86S
Working Pressure 0.3 ~ 0.8 Mpa
Ambient Temperature -5 ~ 55 ℃
Relative Humidity ＜85%
Working Medium Clean Air
Voltage AC110V/AC220V/DC24V
Diaphragm Life Over One Million Cycles
Orifice φ 86
Connection Port φ 90

Overall Dimension

RMF-Y-86S
