RV08102
Home » Products » Solenoid Valve » Steam Valves » RV08102
RV08102 RV08102

RV08102

Share to:
  • 220VAC Steam valve is with big flow;
  • 2/2 steam iron valve with VITON seal;
  • Steam iron valve with big orifice with good quality and leadtime;
  • Magnetic valve for ironing
  • Chinese steam valve manufacturer
  • RV08102
  • RFS
Availability:
Inquire Add to Basket

Product Details

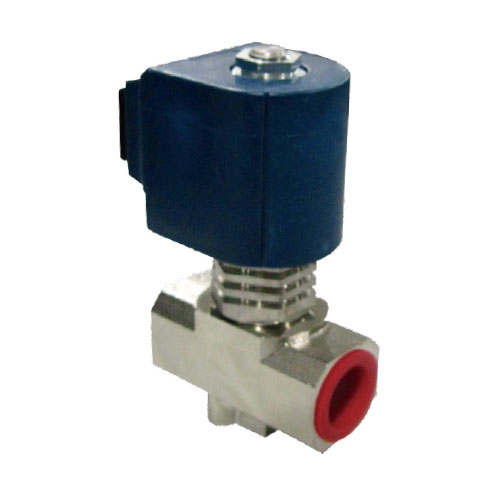

Model RV08102 Steam valve
Media Steam
Pattern Normally close
Orifice 8mm
Connection port G1/2"
Working pressure 0-1.0Mpa
Max.pressure 2.5Mpa
Working temp. 0℃~180℃
Related voltage AC220V +/-10%
Power 19VA
Insulation class H Class
Protection class IP65
Valve body Material Brass
Seal material PTFE/VITON

Overall Dimension

20170614181652_83678
