| Model | SB116(SS)-2A |
| Working Pressure | 0~1.0 MPa |
| Ambient Temp. | -10~+55℃ |
| Medium Temp. | -10~+90℃ |
| Power Consumption | AC (20VA) / DC (13W) |
| Seal Material | NBR / PTFE |
| Working Medium | Air / Water / Gas |
| Available Accessories | Timer / Connector / Ex-proof coil |
| Working Type | Pilot Type |
| Pattern | Normally Closed / Normally Open |
| Body Material | Brass / Stainless steel |
| Model | Orifice (mm) | Kv Value (m³/h) | Connection ports |
| SB116-2A1008 | 10 | 1.4 | 1/4" |
| SB116-2A1010 | 10 | 1.4 | 3/8" |
| SB116-2A1015 | 10 | 1.4 | 1/2" |
| SB116-2A1415 | 14 | 2.52 | 1/2" |

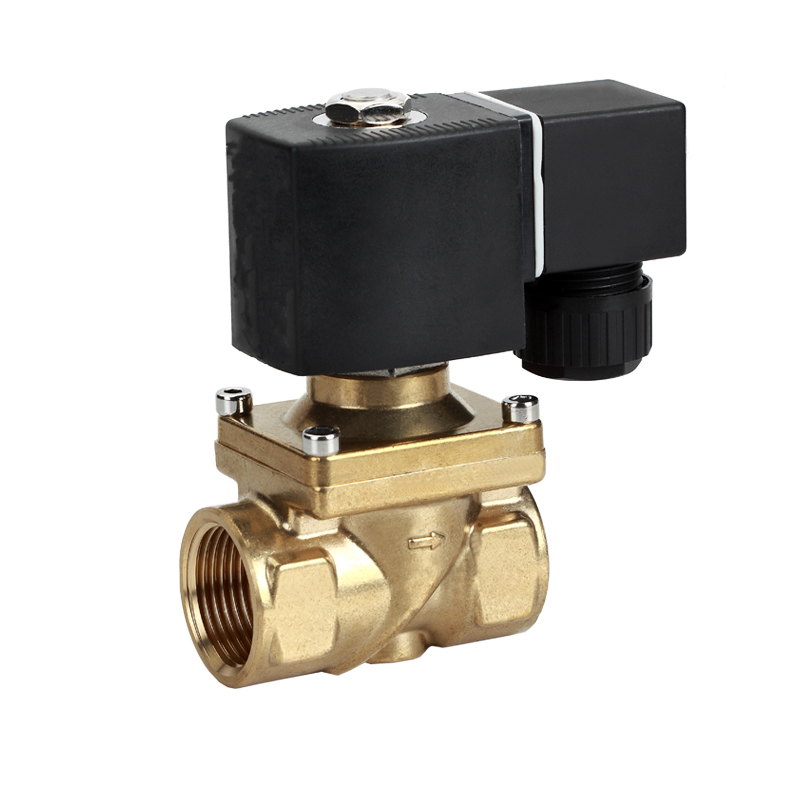

| SB116-2A1420 | 14 | 2.52 | 3/4" |
| SB116-2A2020 | 20 | 5 | 3/4" |
| SB116-2A2025 | 20 | 5 | 1" |
| Model | G | C | F | L | J | A | B | H | K |
| SB116-2A1008 | 1/4" | 38 | 13 | 50 | 26 | 71 | 85 | 36 | 76 |
| SB116-2A1010 | 3/8" | 38 | 13 | 50 | 26 | 71 | 85 | 36 | 76 |
| SB116-2A1015 | 1/2" | 38 | 13 | 50 | 26 | 71 | 85 | 36 | 76 |
| SB116-2A1415 | 1/2" | 44 | 14 | 66 | 26 | 77 | 91 | 36 | 76 |
| SB116-2A1420 | 3/4" | 44 | 14 | 66 | 26 | 77 | 91 | 36 | 76 |
| SB116-2A2020 | 3/4" | 65 | 20 | 83 | 41 | 111 | 131 | 36 | 88 |
| SB116-2A2025 | 1" | 65 | 20 | 83 | 41 | 111 | 131 | 36 | 88 |
