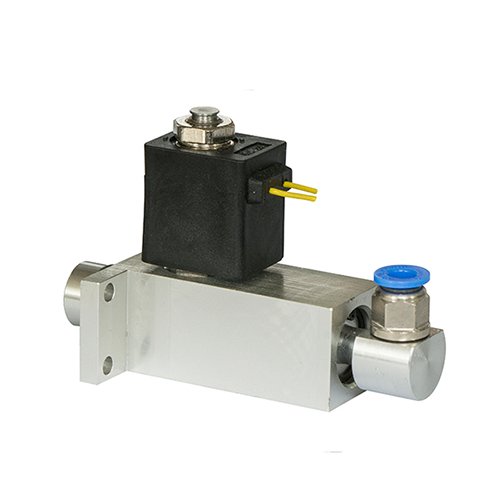

  • XF1 is Direct action type Solenoid Valve for Carbamide ,Body Material made by 6061-T6 ,With H Class coil and IP 65 ,Supplier Xingyu Electron (NINGBO) Co.,lyd was certified by TS 16949 System

  • XF1

Availability:
Inquire Add to Basket

Product Details

Model XF1
Media Carbamide;
Working type 2/2 Direct Action
Pattern Normally Close
Orifice 1.4mm
Connection Port G1/8 - φ6 Pipe
Working Pressure 0.05-1Mpa
Working Temp. -40 ~ +120℃
Rated Voltage 24VDC
Protection Class IP65
Insulation Class H Class
Valve Body Material 6061-T6
Seal Material NBR

Overall Dimension

xf-01
