Plastic Head Angle Seat Valve

The Plastic Head Angle Seat Valve is a highly efficient pneumatic control valve designed for regulating flow in demanding industrial fluid systems. Engineered for durability, fast response, and stable performance, it is widely used in water treatment, food processing, chemical pipelines, and automated production systems.

With its corrosion-resistant structure and optimized angle seat design, this valve ensures high flow capacity with minimal pressure loss, making it an ideal choice for modern automation environments.

What Is a Plastic Head Angle Seat Valve?

A Plastic Head Angle Seat Valve is a pneumatically actuated valve that uses a piston-driven mechanism to control the opening and closing of a flow channel at an angled seat (usually 45°).

The “plastic head” refers to the actuator housing material, typically made from high-strength engineering plastics such as PA (Polyamide) or PPS, offering excellent resistance to corrosion, moisture, and industrial chemicals.

This structure combines:

High durability metal valve body

Lightweight and corrosion-resistant plastic actuator head

Efficient angled seat flow design

Key Features of Plastic Head Angle Seat Valve

1. Corrosion-Resistant Plastic Actuator Head

The actuator housing is made from reinforced engineering plastic, ensuring strong resistance against:

Chemical corrosion

Humidity and water exposure

Acid and alkaline environments

This makes it ideal for harsh industrial applications.

2. High Flow Efficiency Design

The 45-degree angle seat structure allows:

Smooth fluid passage

Reduced turbulence

Higher flow rate compared to straight valves

3. Fast Pneumatic Response

Equipped with a pneumatic piston actuator, the valve provides:

Rapid opening and closing

Short response time

High cycle durability for automation systems

4. Compact and Lightweight Structure

The plastic head design reduces overall weight, making installation easier and reducing mechanical load on pipelines.

5. Long Service Life

High-quality sealing materials and precision machining ensure:

Low leakage rate

Minimal wear and tear

Extended operational lifespan

Technical Specifications (Typical Range)

Valve Type: Angle Seat Valve

Actuation: Pneumatic (Single/Double Acting Optional)

Body Material: Stainless Steel (SS304 / SS316)

Actuator Head Material: Engineering Plastic (PA / PPS)

Sealing Material: PTFE / FKM / EPDM

Pressure Range: 0–16 bar (varies by model)

Temperature Range: -10°C to 180°C (depending on seal material)

Connection Type: Threaded / Flanged / Welded

Applications of Plastic Head Angle Seat Valve

This valve is widely used in industrial automation and fluid control systems, including:

Industrial Applications

Chemical processing systems

Water and wastewater treatment

Steam and hot water pipelines

Air and gas control systems

Food & Beverage Industry

Beverage filling machines

Dairy processing lines

CIP (Clean-in-Place) systems

Pharmaceutical Industry

Sterile fluid control

Clean production environments

Biotech processing systems

General Automation Systems

Pneumatic production lines

Packaging machinery

Industrial washing systems

Advantages Compared to Traditional Valves

The Plastic Head Angle Seat Valve offers significant improvements over conventional solenoid or globe valves:

Higher flow efficiency with less pressure drop

Better corrosion resistance in aggressive environments

Faster switching speed for automation systems

Lower energy consumption in pneumatic control

More stable performance under continuous operation

Why Choose Plastic Head Angle Seat Valve?

Choosing the right control valve directly impacts system efficiency and maintenance costs. This valve is designed to deliver:

Reliable operation in harsh environments

Reduced downtime due to fewer maintenance requirements

Compatibility with automated control systems

Cost-effective long-term performance

It is especially suitable for industries requiring high-frequency switching and clean fluid control.

Installation & Maintenance Tips

To ensure optimal performance:

Install according to flow direction markings

Use clean compressed air for actuator operation

Regularly check seals for wear in high-temperature applications

Avoid exceeding rated pressure limits

Ensure proper pipeline alignment to reduce stress

Proper maintenance significantly extends service life and ensures stable operation.

Frequently Asked Questions (FAQ)

1. What is the function of a plastic head in this valve?

The plastic head serves as the actuator housing, providing corrosion resistance and reducing overall weight while protecting internal pneumatic components.

2. Can it be used for steam applications?

Yes, depending on seal and body material selection, it can handle steam and high-temperature media.

3. Is it suitable for food-grade applications?

Yes, when equipped with food-grade seals and stainless steel body, it is widely used in food and beverage processing.

4. What is the difference between plastic head and aluminum head angle seat valves?

Plastic head valves are lighter and more corrosion-resistant, while aluminum heads offer higher mechanical strength in extreme conditions.

Conclusion

The Plastic Head Angle Seat Valve is a high-performance pneumatic control solution designed for modern industrial systems requiring reliability, efficiency, and corrosion resistance. Its optimized structure, fast response, and wide compatibility make it a preferred choice across multiple industries.

If you are looking for a durable and efficient flow control valve for automated systems, this product offers a balanced combination of performance and cost-effectiveness.

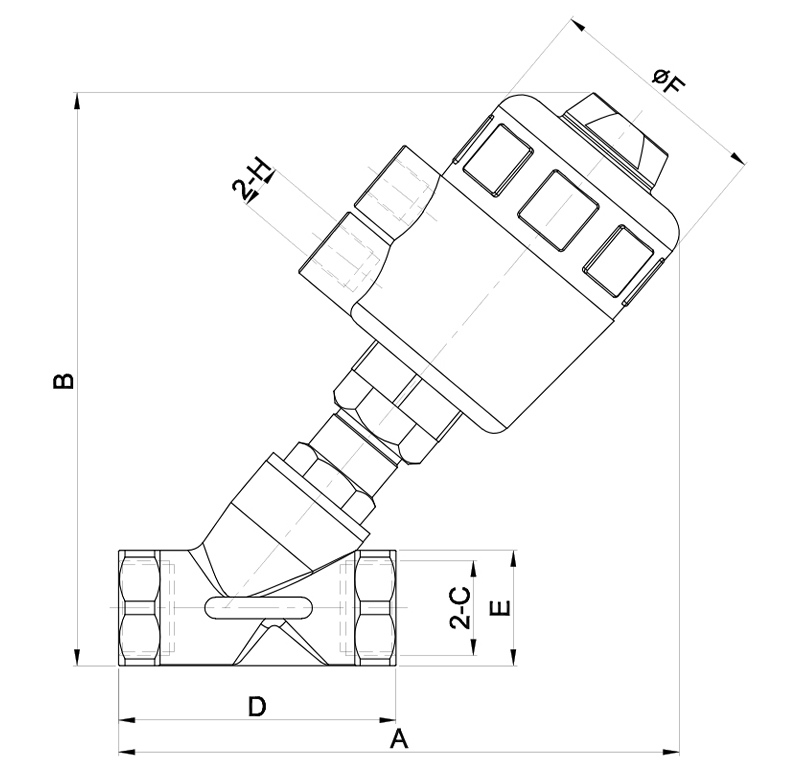

Overall Dimension

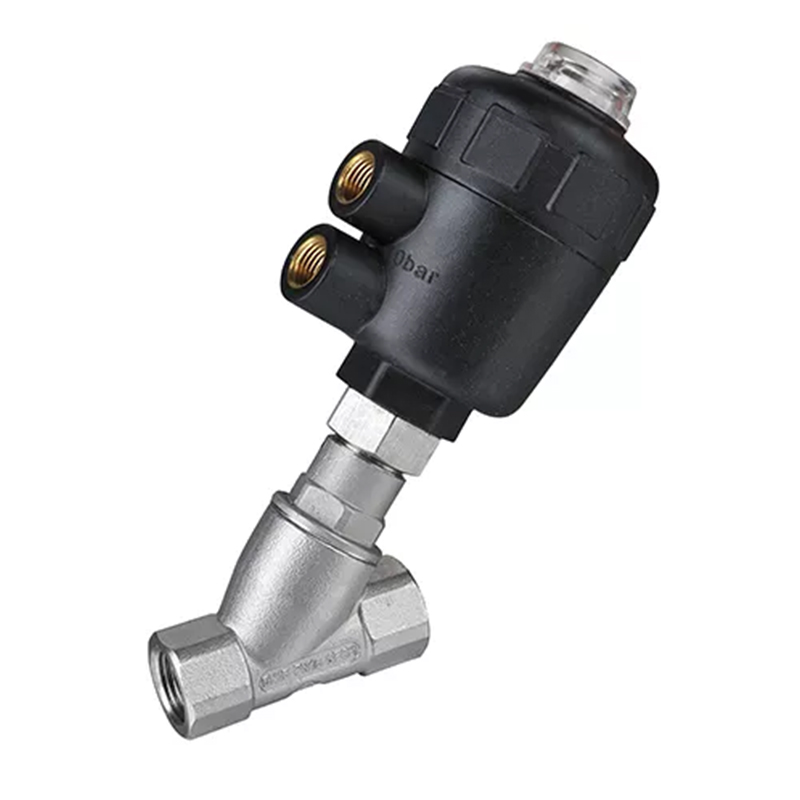

Product Details
