Angle Seat Valve
Angle Seat Valve
High Strength and Durability: Stainless steel is known for its strength and durability, ensuring that these valves can withstand high pressure and harsh operational conditions, contributing to a longer lifespan.
Temperature Resistance: Stainless steel valves can operate effectively in a wide temperature range, making them suitable for both high-temperature and cryogenic applications.
Hygienic and Cleanable: The non-porous surface of stainless steel makes these valves suitable for sanitary applications, such as in the food, beverage, and pharmaceutical industries, as they can be easily cleaned and sterilized.
Angle Seat Design: This design feature allows for a high flow rate and efficient flow control. The angle seat also minimizes fluid resistance, making the valve more efficient in terms of energy consumption.
Pneumatic Actuation: Typically equipped with pneumatic actuators, these valves offer fast and reliable operation, suitable for automated process control systems.
Leak-Proof Performance: The precision engineering of stainless steel angle seat valves ensures tight sealing and leak-proof performance, which is essential in maintaining process integrity and safety.
Stainless steel Angle seat valve Datesheet
An SS (stainless steel) head angle seat valve is a type of Angle Seat Valve designed for controlling the flow of fluids in industrial applications. It features a stainless steel construction, which provides durability and resistance to corrosion, making it suitable for use in various industries such as food and beverage, pharmaceuticals, and chemical processing.These SS Head Angle Seat Valves are typically used for on-off and modulating control of liquids, gases, and steam.
Food and Beverage: These SS Head Angle Seat valves are utilized in food and beverage processing plants for controlling the flow of liquids, gases, and steam in pipelines, tanks, and processing equipment.
Pharmaceuticals: In pharmaceutical manufacturing facilities, SS Head Angle Seat Valves are employed for precise flow control in processes such as ingredient mixing, sterilization, and filling.
Chemical Processing: These valves find applications in chemical processing plants for regulating the flow of corrosive chemicals, solvents, and other fluids in various stages of production and transportation.
Durable Construction: Made from stainless steel, these valves offer excellent durability, corrosion resistance, and longevity, ensuring reliable performance even in harsh environments.
Angle Seat Design: The angle seat design of these valves provides efficient flow control by allowing for higher flow rates with minimal pressure drop, enhancing system efficiency.
Self-Adjusting Stem Seal: Many SS head angle seat valves feature a self-adjusting stem seal, which ensures tight shut-off and prevents leakage, even under high-pressure conditions.
High Temperature and Pressure Resistance: SS head angle seat valves are capable of handling high temperatures and pressures, making them suitable for demanding industrial applications.
As a professional Angle Seat Valve supplier, Xingyu provides high-quality, easy-to-install SS Head Angle Seat Valve, please contact us for consultation!
| Orifice | DN10-DN65 |
| Thread | G3/8"-G2-1/2" |
| Working type | single acting, double acting |
| Valve material | stainless steel 316 |
| Actuator material | stainless steel 304 |
| Valve core seal | PTFE |
| Valve stem seal | PTFE/FKM |
| Applicable medium | water, liquid, neutral gas, oil water steam, weak acid or weak alkalis solution |
| Medium temperature | -10℃~180℃ |
| Environment temperature | -10℃~60℃ |
| Pattern | NC, NO |
| Viscidity | max.600mm 2/S |
| Installation | any position |
| Controlling medium | air or neutral gas |
| Controlling pressure range | 0.3~1Mpa |
| Liquid Working pressure | 0~1.6Mpa |

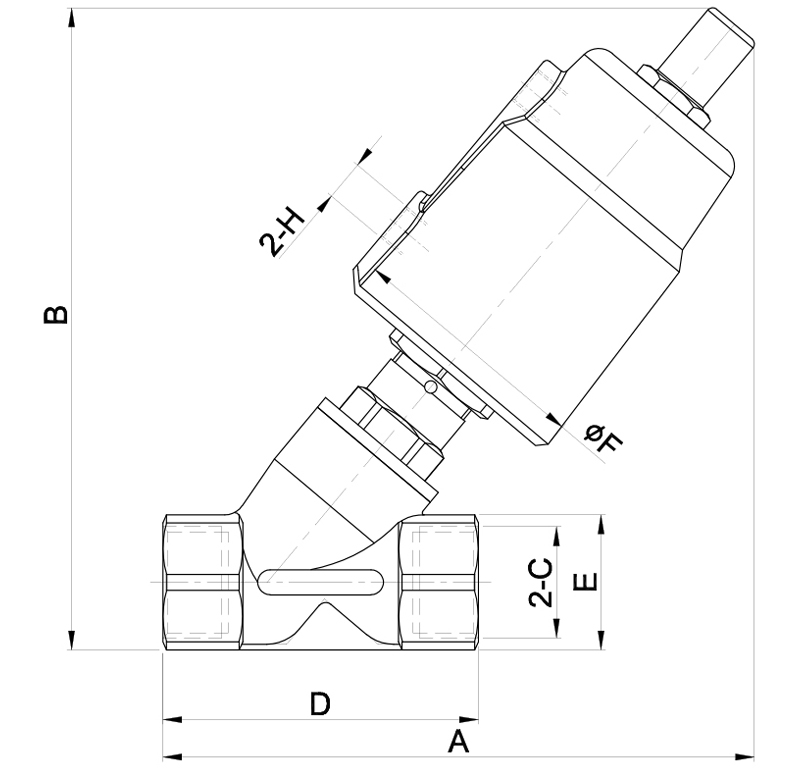

Overall Dimension

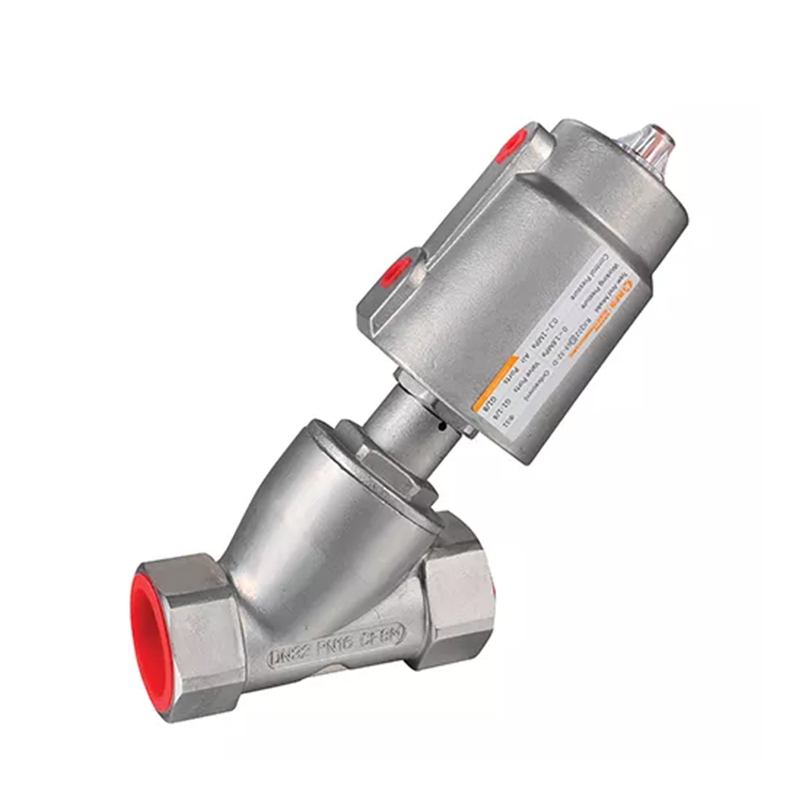

Product Details
| Model | Actuator size | A | B | C | D | E | F | H |
| RJQ22S40-10 | 40 | 127.5 | 136 | G3/8 | 69 | 27 | 50 | G1/8 |
| RJQ22S40-15 | 40 | 127.5 | 136 | G1/2 | 69 | 27 | 50 | G1/8 |
| RJQ22S50-10 | 50 | 140 | 150 | G3/8 | 69 | 27 | 60.5 | G1/8 |
| RJQ22S50-15 | 50 | 140 | 150 | G1/2 | 69 | 27 | 60.5 | G1/8 |
| RJQ22S50-20 | 50 | 143 | 155 | G3/4 | 75.5 | 32 | 60.5 | G1/8 |
| RJQ22S50-25 | 50 | 163.5 | 176 | G1 | 90 | 39 | 60.5 | G1/8 |
| RJQ22S63-25 | 63 | 174.5 | 189.5 | G1 | 90 | 39 | 77 | G1/8 |
| RJQ22S63-32 | 63 | 190.5 | 207.5 | G1-1/4 | 117 | 50 | 77 | G1/8 |
| RJQ22S63-40 | 63 | 190.5 | 207.5 | G1-1/2 | 117 | 55 | 77 | G1/8 |
| RJQ22S63-50 | 63 | 219.5 | 232.5 | G2 | 137 | 70 | 77 | G1/8 |
| RJQ22S80-40 | 80 | 207.5 | 220.5 | G1 1/2 | 117.5 | 55 | 98 | G1/4 |
| RJQ22S80-50 | 80 | 233 | 253 | G2 | 137 | 70 | 98 | G1/4 |
| RJQ22S80-65 | 80 | 273 | 290 | G2-1/2 | 170 | 85 | 116 | G1/4 |
| RJQ22S100-65 | 100 | 270 | 290.5 | G1 1/2 | 170 | 85 | 116 | G1/4 |
