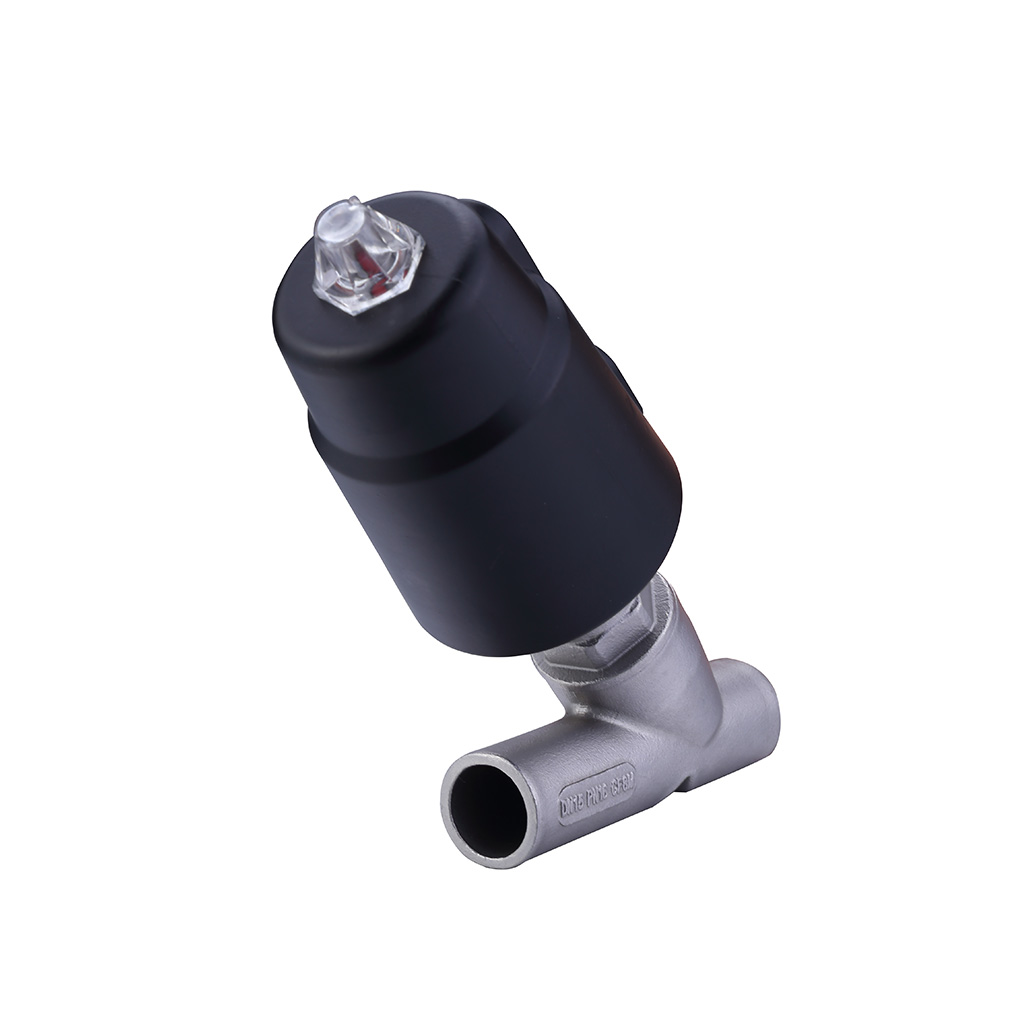

ANGLE SEAT VALVE

Thread

G3/8”- G2-1/2”

Working type

single acting,double acting

Valve material

stainless steel 316

Actuator material

plastic

Valve core seal

PTFE

Valve stem seal

PTFE/FKM

Applicable medium

water,liquid,neutral gas,oil water steam,weak acid or weak alkalis solution

Medium temperature

-10℃~180℃

Environment temperature

-10℃~60℃

Pattern

NC,NO

Viscidity

max.600mm 2/S

Installation

any position

Controlling medium

air or neutral gas

Controlling pressure range

0.3~1Mpa

Liquid Working pressure

0~1Mpa

Model

Actuator size

A

B

C

D

E

F

H

RJQ22P50-10

50

148

157

G3/8

69

27

63.3

G1/4

RJQ22P50-15

50

148

157

G1/2

69

27

63.3

G1/4

RJQ22P50-20

50

151

161.5

G3/4

75.5

32

63.3

G1/4

RJQ22P50-25

50

172

183.5

G1

90.5

39

39

G1/4

RJQ22P63-25

63

213.5

209

G1

90.5

39

39

G1/4

RJQ22P63-32

63

213.5

227

G1 1/4

117.5

50

79.5

G1/4

RJQ22P63-40

63

213.5

227

G1 1/2

117.5

55

79.5

G1/4

RJQ22P80-40

80

229

243.5

G1 1/2

117.5

55

100

G1/4

RJQ22P63-50

63

237.5

251

G2

137.5

70

79.5

G1/4

RJQ22P80-50

80

256

270.5

G2

137.5

70

100

G1/4
