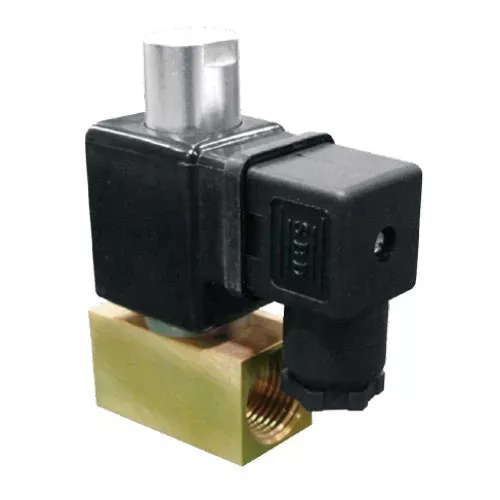

CS Drain Valve
CS Drain Valve
Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.
Standard Features: NC mode with a Brass body and NBR seal.
Thread: Uses standard G type.
Body Options: Available in SS304 or SS316 stainless steel.
Customizations: Viton seal for enhanced resistance; NPT threading available.
Product Details
| Model | CS-720W-CK |
| Valve style | 2/2 Direction action |
| Connection Ports | 1/8" 1/4" 3/8" 1/2" Female |
| Pattern | Normally Open |
| Working pressure | 0-7Bar |
| Working Temp. | -20℃~60℃ |
| Highest Media temperature | 160℃ |
| Valve body | Brass/Stainless steel |
| Orifice | 1.9mm 2.5mm 4.5mm |
| Insulation class | F/H Class |
| Protection class | IP65(with plug) |
| Voltage | 24~240V DC/AC 50/60Hz +/-10% |
| Power | AC22VA/DC20W |
| Mounting | Any place |

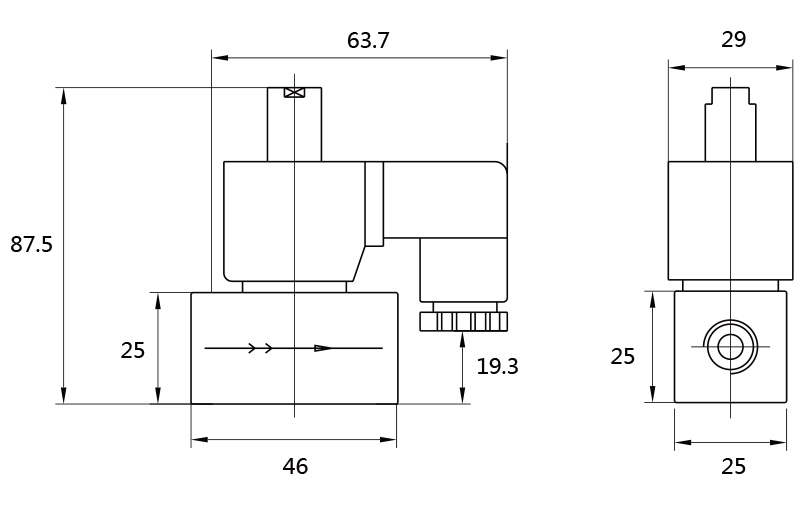

Overall Dimension
