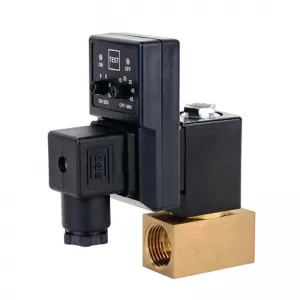

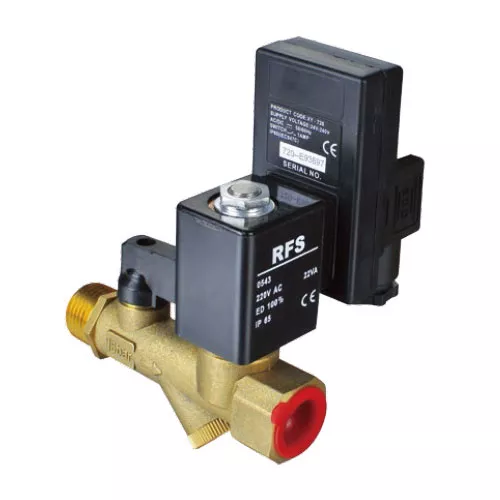

CS Drain Valve
CS Drain Valve
Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.
Standard Features: NC mode with a Brass body and NBR seal.
Thread: Uses standard G type.
Body Options: Available in SS304 or SS316 stainless steel.
Customizations: Viton seal for enhanced resistance; NPT threading available.
Product Details
| Model | CS-728A |
| Valve style | 2/2 Direction action |
| Connection Ports | Inlet:1/4"Male, Outlet:1/2" Female |
| Pattern | Normally close |
| Working pressure | 0-16Bar |
| Working Temp. | 0℃~80℃ |
| Highest Media temperature | 160℃ |
| Valve body | Brass |
| Orifice | 3.5mm |
| Seal material | NBR/VITON |
| Voltage | 24~240V DC/AC +/-10% |
| Power | AC22VA/DC20W |

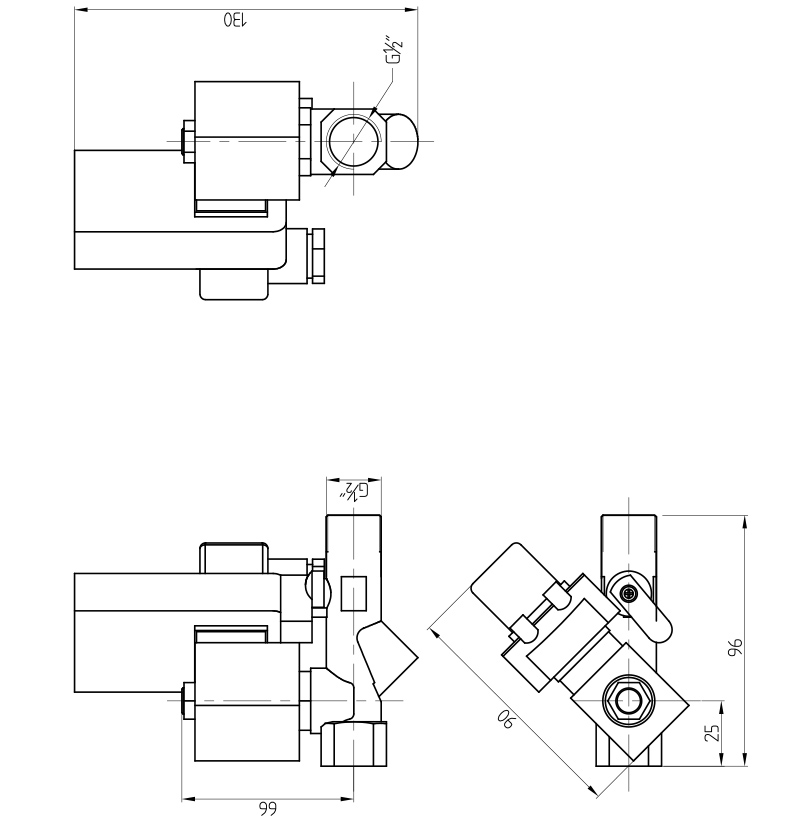

Overall Dimension
