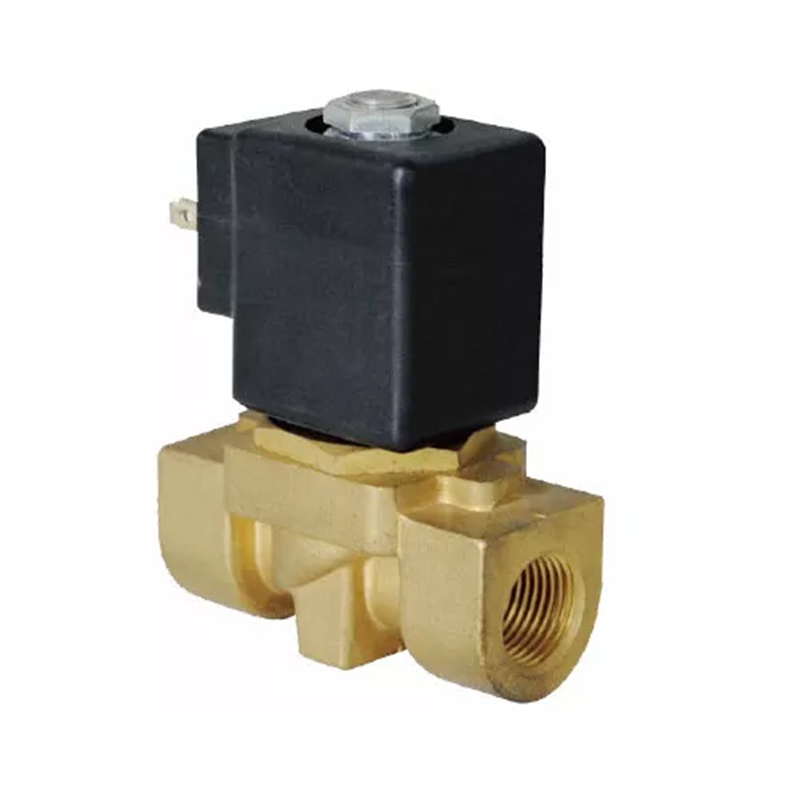

SB167 Drain Valve

Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.

Standard Features: NC mode with a Brass body and NBR seal.

Thread: Uses standard G type.

Body Options: Available in SS304 or SS316 stainless steel.

Customizations: Viton seal for enhanced resistance; NPT threading available.

Product Details

MediaClean Air / water
Working TypeDirect Action 2/2
PatternNormally close
Connection PortG1/4 , G1/2
Working pressure0.1-1.6 Mpa
Working Temperature-20~ 80 ℃
Valve body materialbrass
Seal MaterialNBR

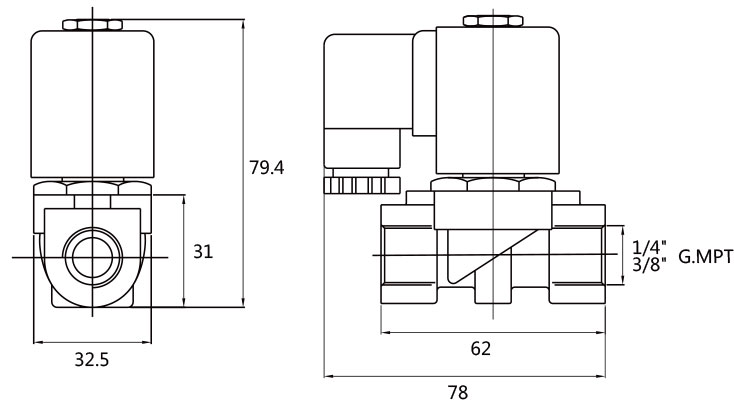

Overall Dimension

SB167 Drain Valve
