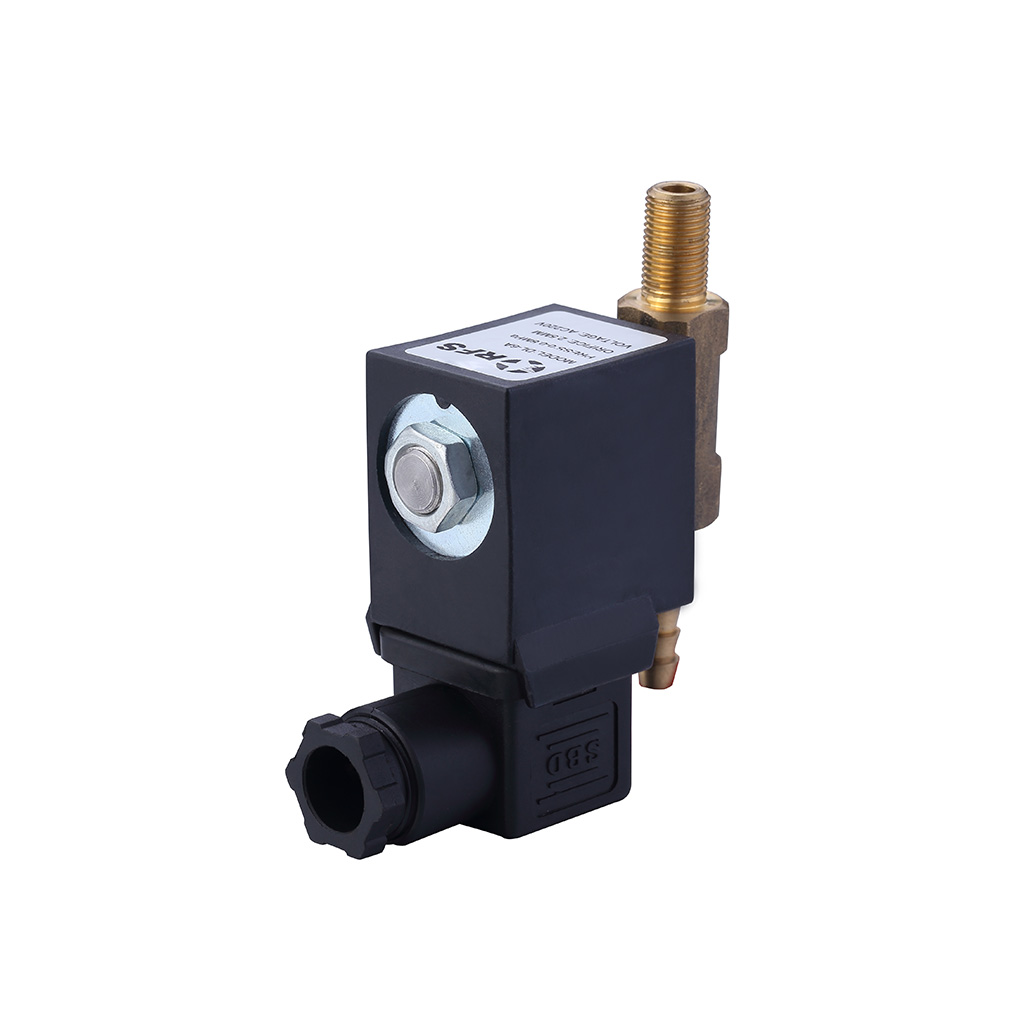

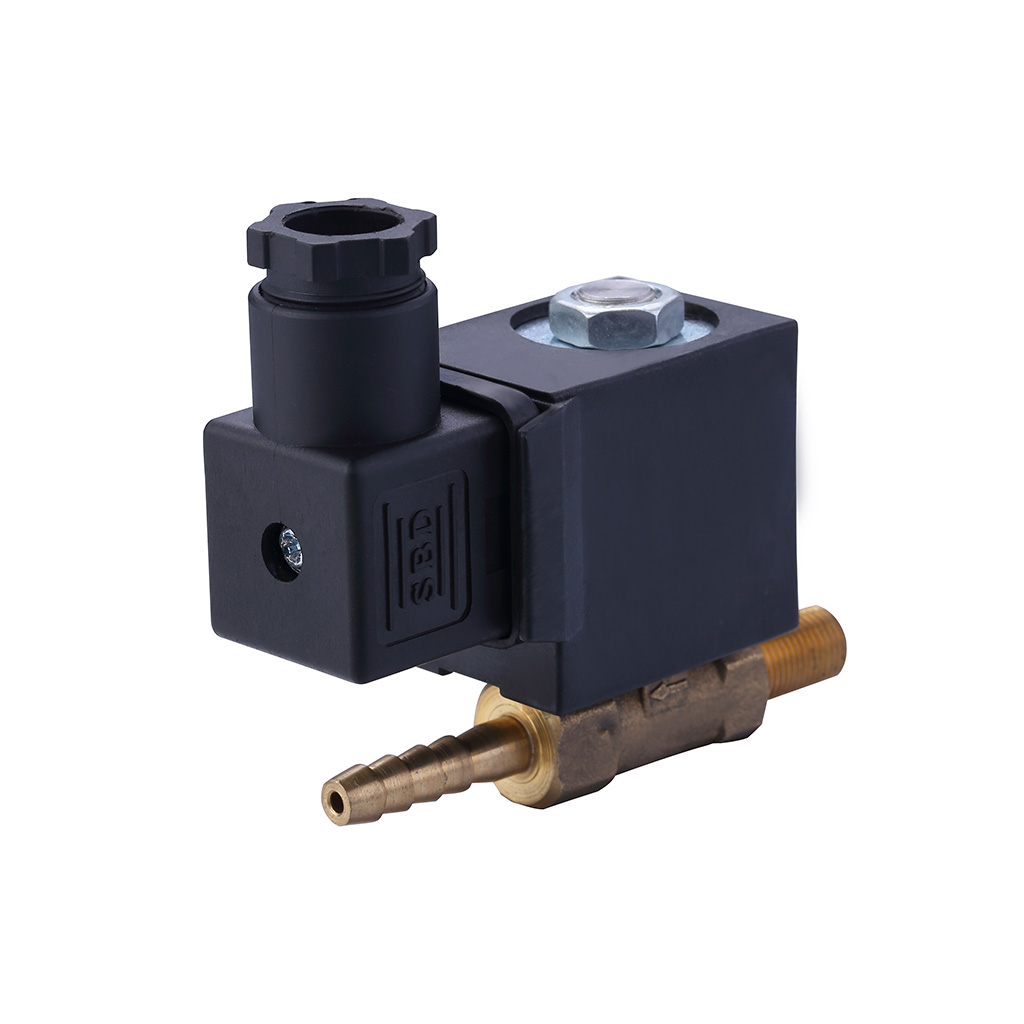

DL-6A STEAM VALVE

Share to:
  • solenoid valve for steam,water,air media
  • Electrical steam iron valve with compact stucture is easy to operate
  • solenoid valve for stem iron with good quality and leadtime
  • solenoid valve for steam generator
Availability:
Inquire Add to Basket

Model

DL-6A

Media

Water/Steam/Clean Air

Working type

2/2 Direct action

Pattern

Normally close

Orifice

2.5mm

Connection port

φ6 Insert pipe,Male G1/8"

Working pressure

0-0.8Mpa

Max.pressure

1.6Mpa

Working temp.

0.1℃~180℃

Related voltage

24~240V DC/AC +/-10%

Power

AC15VA/DC12W

Insulation class

H Class

Protection class

IP65

Valve body Material

brass

Seal material

PTFE/FKM
