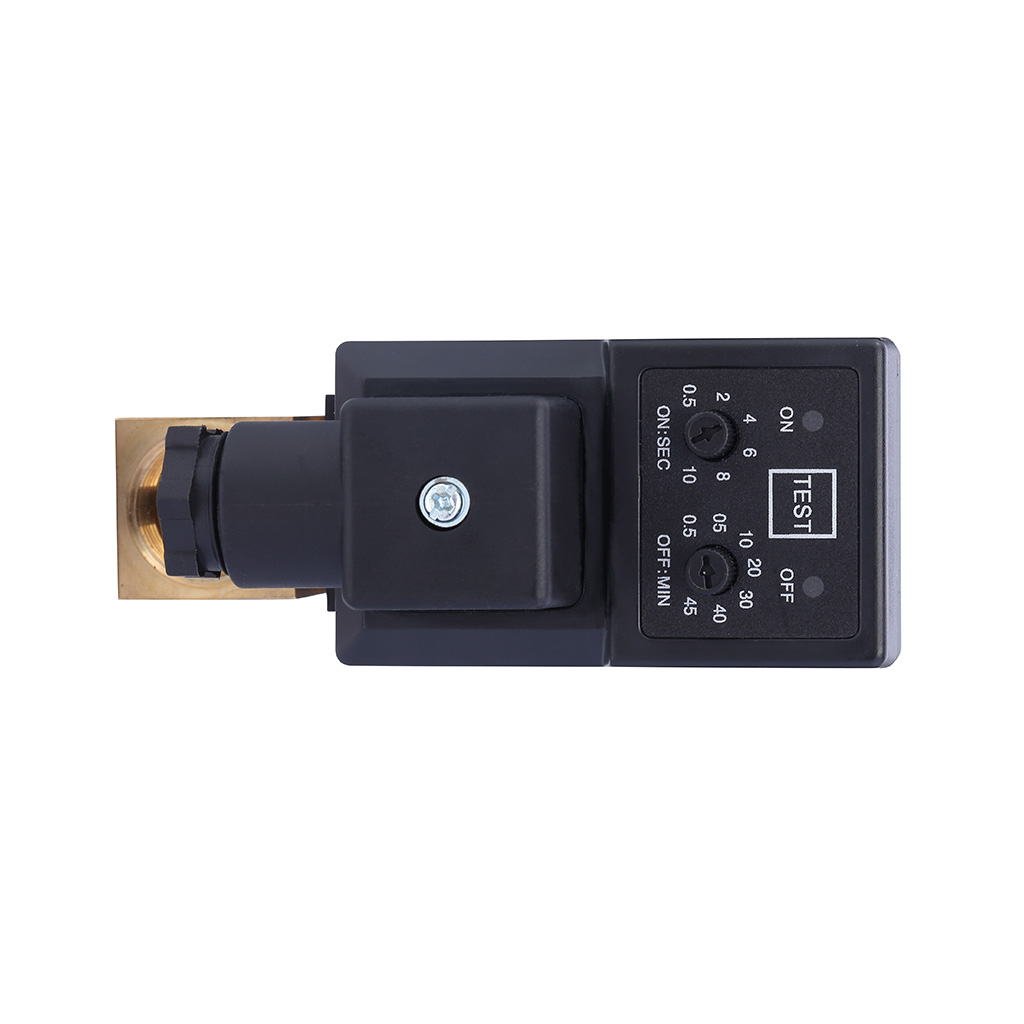

DRAIN VALVE CS-720A

Share to:
  • drain valve with timer XY-720 UL certified
  • timer electic water valve can control the valve open and close automatically.
  • NPT thread drain valve is easy to install,working with strainer to protect against impurity from condensate;
  • 230VAC timer solenoid valve are widely used as spare part of air dryer systm.
  • water valve for air compressor;cleaning machine valves
Availability:
Inquire Add to Basket

Model

CS-720

Vlave style

2/2 Direction action

Connection Ports

1/8" 1/4" 3/8" 1/2" Female

Pattern

Normally close

Working pressure

16Bar 40Bar 80Bar

Timer

XY-720

On/off time

On 0.5~10S, Off 0.5-45min

Working Temp.

-20℃~60℃

Highest Media temperature

160℃

Valve body

Brass/Stainless steel

Orifice

1.9mm 2.5mm 4.5mm

Insulation class

F/H Class

Protection class

IP65(with plug)

Voltage

24~240V DC/AC 50/60Hz +/-10%

Power

AC22VA/DC20W

Mounting

Any place
