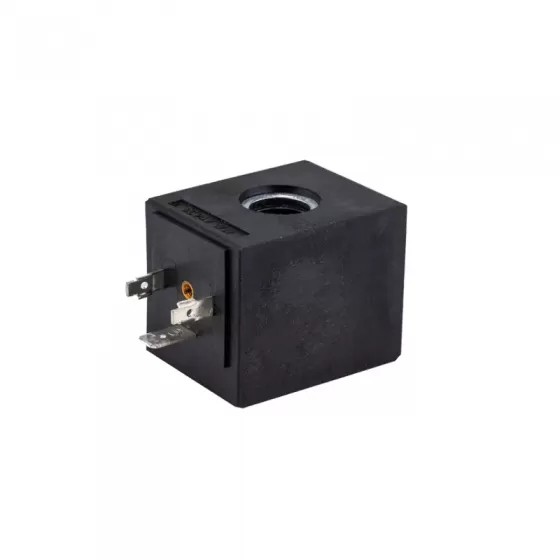

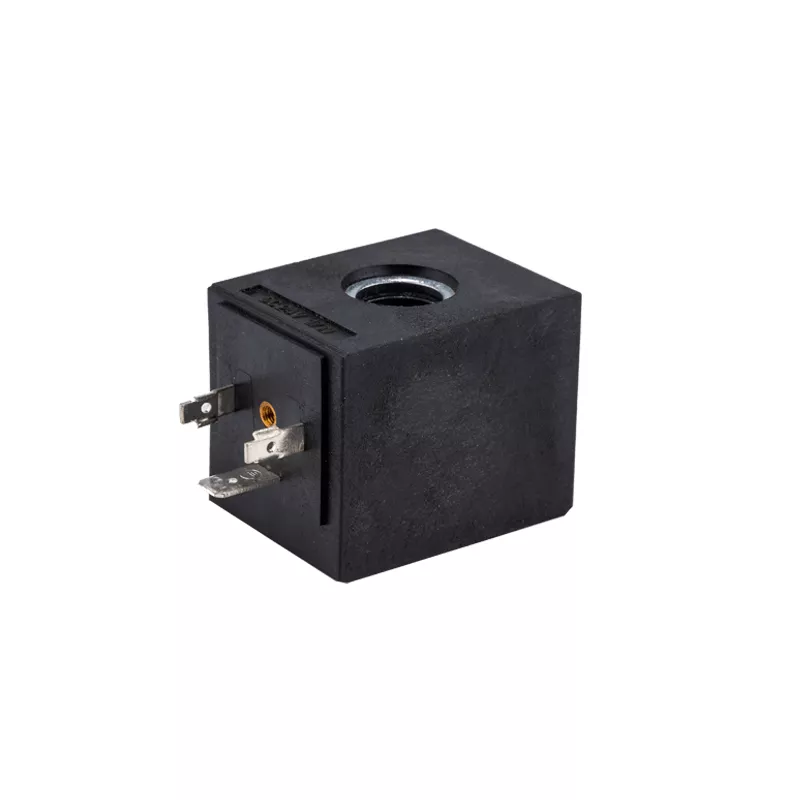

SB518 Hydraulic Coil

SB518 Hydraulic Coil

  • 220V AC solenoid coil for hydraulic valve

  • H class solenoid coil for hydraulic valve

  • Height 37 diameter 13 AC220V AC110V DC24V DC12V


Inquire Now Next Product

Product Details

Normal VoltageAC220V,AC110V,DC24V,DC12V
Normal PowerAC19VA
DC17W
                                 Other voltage   and power can be customized
Insulation ClassH
Connection TypeDIN43650A
Diameter13 mm
Height37 mm

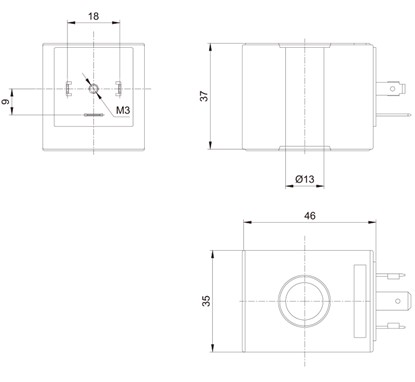

Overall Dimension

SB518
