Home - Products-Pneumatic and Automation Components-Directional Control Valve-Mirco Valve-Mirco Valve XY-15

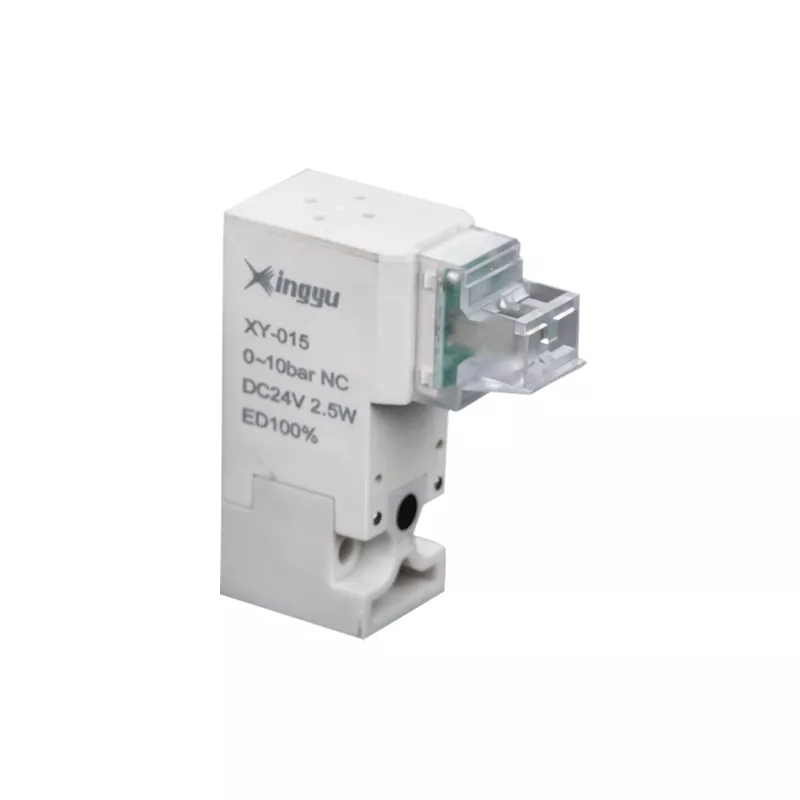

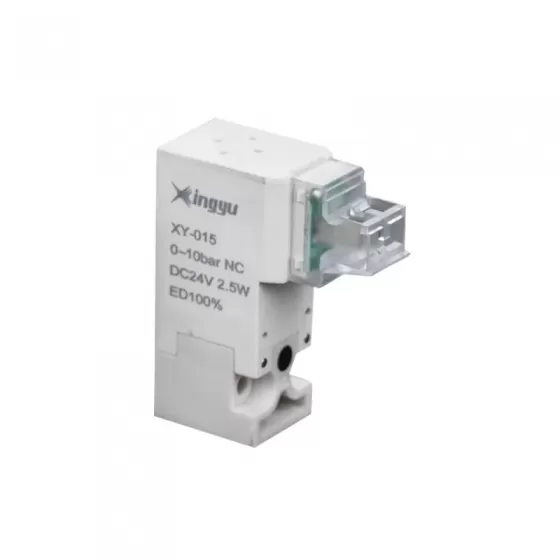

Mirco Valve XY-15

  • Ultra-Compact Size: Extremely small footprint, ideal for applications where space is at a premium.

  • High Precision Flow Control: Offers very precise control of fluid or gas flow, crucial in microfluidic applications.

  • Low Power Consumption: Designed to operate effectively with minimal energy usage, suitable for battery-powered or energy-sensitive devices.

  • Fast Response Time: Capable of very quick opening and closing, essential for applications requiring rapid fluid control.

  • Minimal Internal Volume: Reduces dead volume, minimizing fluid use and waste.

XY-15A Mirco Valve Datesheet

Mirco Valve XY-15


Connection TypePIN / Vertical / Paraller / Vertical
Working TypeN.C, Direct Action
VoltageDC12V / DC24V / AC110V / AC220V
Electrified RateED100%
Working Pressure0-7 bar
Insulation ClassH
Protection ClassIP65
Working Temp.-5~80 ℃
Response TimeWithin 10ms
Max. Frequency 30Hz
Ambient Temp.-10~+55℃

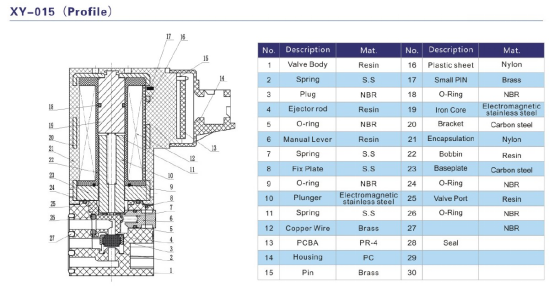

Overall Dimension
