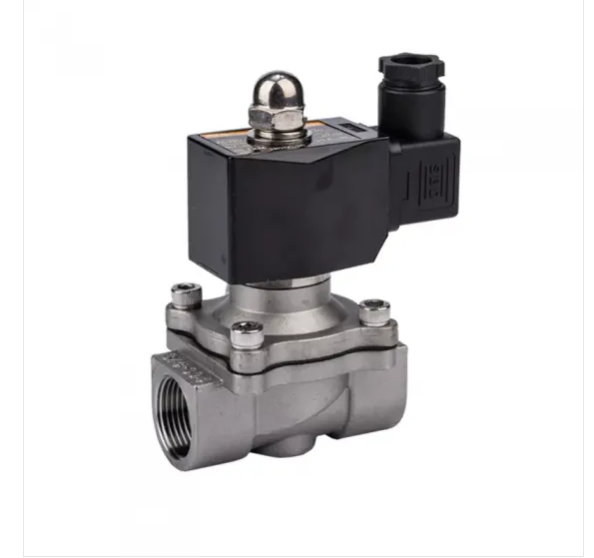

In industrial environments where heat is constant and process stability is critical, choosing the right valve is not optional—it’s essential. The 2/2 way solenoid valve for high-temperature applications is engineered to deliver precise on/off control under extreme thermal conditions, making it a core component in systems involving steam, hot oil, and high-temperature gases.
This guide explains how these valves work, what makes them suitable for elevated temperatures, and how to select the right configuration for your application.
A 2/2 way solenoid valve is a two-port, two-position valve that either allows or blocks flow. It operates using an electromagnetic coil (solenoid) that actuates an internal plunger to open or close the valve.
2 ports: inlet and outlet
2 positions: open or closed
Operation: normally closed (NC) or normally open (NO)
In high-temperature environments, these valves are specially designed with heat-resistant materials and reinforced sealing systems to ensure reliable performance.
Standard solenoid valves often fail when exposed to elevated temperatures due to seal degradation, coil overheating, or material expansion. High-temperature versions are engineered to overcome these limitations.
Key Challenges Addressed:
Thermal expansion affecting sealing integrity
Degradation of elastomers under heat
Coil insulation breakdown
Pressure fluctuations in heated systems
A properly selected high-temperature solenoid valve ensures safe operation, consistent flow control, and reduced downtime.
1. Heat-Resistant Materials
These valves are built with materials that can withstand extreme temperatures:
Body: Stainless steel (SS304 / SS316), brass (for moderate heat)
Seals: PTFE, FKM (Viton), graphite
Internal components: high-grade alloys resistant to thermal stress
2. High-Temperature Coil Design
The solenoid coil is specially designed with:
Class H or higher insulation
Heat-resistant enclosures
Efficient heat dissipation to prevent burnout
3. Reliable Sealing Performance
Advanced sealing materials ensure:
Minimal leakage under high temperature
Resistance to chemical and thermal degradation
Long service life in continuous operation
4. Wide Temperature Range
Depending on configuration, these valves can handle:
Up to 180°C–250°C for standard high-temp models
Up to 350°C+ for specialized steam or thermal oil systems
5. Fast and Precise Switching
Despite high temperatures, these valves maintain:
Rapid response time
Stable switching cycles
Consistent flow control
High-temperature 2/2 way solenoid valves are used across industries where thermal processes are involved:
Steam Systems
Steam boilers
Sterilization equipment
Textile and dyeing machinery
Thermal Oil Systems
Heat transfer systems
Industrial heating equipment
Oil circulation control
Food & Beverage Processing
High-temperature cleaning (CIP/SIP)
Pasteurization systems
Brewing and dairy production
Chemical and Petrochemical Industry
High-temperature fluid handling
Reactor systems
Gas and vapor control
Power Generation
Steam turbines
Heat recovery systems
Energy plants
Selecting the correct valve requires a clear understanding of your system conditions.
1. Temperature Range
Always verify the maximum operating temperature of:
Fluid media
Ambient environment
Choose materials and seals accordingly.
2. Pressure Rating
Ensure the valve can handle both:
Operating pressure
Pressure fluctuations in heated systems
3. Media Type
Different media require different material compatibility:
Steam → PTFE or graphite seals
Oil → FKM seals
Chemicals → corrosion-resistant alloys
4. Voltage and Power Requirements
Select appropriate coil voltage:
DC or AC options
Consider energy efficiency and system compatibility
5. Valve Size and Flow Rate
Match valve size (DN) and Kv value to:
Required flow capacity
System pressure drop
Direct-Acting
Suitable for low flow and low pressure
Works without differential pressure
Pilot-Operated
Ideal for high flow rates
Requires minimum pressure differential
Semi-Direct Acting
Combines advantages of both
Suitable for medium pressure systems
To ensure long-term performance:
Install in the correct flow direction
Avoid mounting the coil downward in high-humidity environments
Use proper insulation to protect surrounding components
Regularly inspect seals and clean internal parts
Ensure stable power supply to prevent coil damage
Compared to standard solenoid valves, high-temperature models offer:
Greater thermal stability
Longer lifespan in extreme environments
Reduced maintenance frequency
Higher operational safety
Consistent performance under continuous heat exposure
Future Trends in High-Temperature Valve Technology
As industries push toward higher efficiency and automation, high-temperature solenoid valves are evolving with:
Smart control integration (IoT-enabled valves)
Energy-efficient coil designs
Advanced composite sealing materials
Compact designs for space-constrained systems
These innovations are improving both performance and sustainability in industrial fluid control.
The 2/2 way solenoid valve for high-temperature applications is a critical component in modern industrial systems where heat, pressure, and reliability intersect. By combining durable materials, advanced sealing technology, and precise electromagnetic control, these valves ensure efficient and safe operation in even the harshest environments.
Careful selection based on temperature, pressure, and media compatibility will not only enhance system performance but also significantly reduce maintenance costs and operational risks.
