Angle seat valves are widely used in modern industrial automation due to their fast response, durability, and ability to handle high pressure and high-temperature media. Among the various structural configurations, the Aluminum Head Angle Seat Valve has gained significant popularity thanks to its lightweight construction, cost-effectiveness, and strong corrosion resistance. This type of valve delivers reliable flow control in demanding systems while maintaining excellent mechanical stability.
This article provides a comprehensive overview of how aluminum head angle seat valves work, what advantages they offer, where they are used, what procurement teams should consider when selecting them, and how to ensure long-term operational reliability.

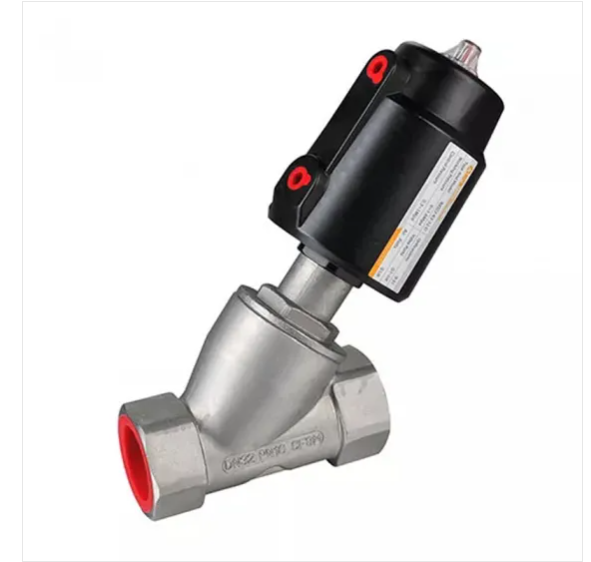

An aluminum head angle seat valve is a pneumatically operated valve featuring an aluminum actuator head and a stainless-steel or brass valve body with an angled seat design. The angled seat—usually around forty-five degrees—allows for high flow rates while maintaining compact size. The aluminum head houses the actuator components, offering a lightweight yet strong structure ideal for high-speed automation.
The result is a high-performance valve capable of controlling steam, air, water, gases, oils, and neutral fluids across a wide range of industrial applications.
The valve uses a pneumatic actuator to lift the internal piston and open the seat, allowing fluid to pass through. When the control signal stops, the return spring pushes the piston back down to close the flow path.
Key elements of the working mechanism include:
A piston-driven actuator housed in an aluminum head.
A durable stem and seal arrangement for leak-free operation.
An angled seat body that improves flow efficiency.
A spring-return mechanism that ensures automatic closing.
This design allows extremely rapid open-close cycles, making the valve suitable for applications requiring frequent switching.
Lightweight Construction with High Strength
The aluminum head reduces total valve weight without compromising durability. This is especially beneficial for automated lines with multiple valves installed.
Excellent Corrosion Resistance
Aluminum alloy resists environmental oxidation and chemical corrosion, extending the actuator’s service life even in wet or aggressive industrial environments.
High Flow Rate
The angled seat structure significantly increases flow capacity compared to traditional globe valves of similar size.
Fast Response for Automation
The pneumatic actuator delivers quick switching, ensuring consistent performance in automated control loops.
High Pressure and Temperature Capability
Capable of handling steam, hot water, and compressed air under demanding pressure conditions.
Long Operating Life
The internal seals, stem design, and stainless-steel valve body allow stable operation even with millions of cycles.
Energy Efficient and Low Maintenance
The simple mechanical design minimizes downtime and reduces the need for frequent servicing.
Aluminum head angle seat valves are used in almost every industry involving fluid automation. Typical applications include:
Compressed air systems
Steam control in food and beverage processing
Textile machinery
Packaging and filling equipment
Water treatment equipment
Chemical dosing and transfer systems
Pharmaceutical production lines
Industrial washing machines and sterilizers
Vacuum and gas delivery systems
HVAC units and thermal control equipment
Their versatility makes them one of the most widely used pneumatically operated valves in industrial automation.
Procurement specialists look for solutions that are cost-effective, stable, and well-supported. Aluminum head angle seat valves meet these expectations for several reasons.
Lower Weight, Lower Cost
The use of aluminum reduces material cost, making the overall valve more economical without losing reliability.
High Compatibility
They are available in multiple port sizes, connection types, and actuator configurations, allowing seamless integration into existing systems.
Long-Term Economy
Their extended lifespan and low maintenance reduce operating costs.
Stable Supply Chain
Many global manufacturers produce angle seat valves, reducing supply risk and ensuring easy replacement availability.
Performance in Harsh Environments
Whether exposed to moisture, steam, oil mist, or high-temperature media, the valve performs reliably over long periods.
To ensure ideal performance and long-term value, buyers should evaluate several criteria.
Medium Compatibility
Confirm the valve materials are suitable for the process media, whether it is steam, compressed air, hot water, or chemicals.
Pressure and Temperature Rating
The valve must match the system’s maximum working conditions.
Connection Type
Threaded, welded, and flange options are available. The correct type depends on installation requirements.
Flow Rate Requirements
Choose the appropriate orifice size to avoid unnecessary pressure loss or insufficient flow.
Seal Material
Different seals provide varying resistance to chemicals and temperatures. Common seal materials include PTFE and EPDM.
Actuator Size and Orientation
Proper actuator sizing ensures fast response and stable operation.
Maintenance Access
Valves installed in high-frequency automation should be easy to service without dismantling major components.
Correct installation is crucial for maximizing efficiency and preventing premature wear.
Ensure the arrow on the valve body aligns with the media flow direction.
Install in an area with sufficient space for actuator removal and maintenance.
Avoid installing the valve in locations where condensate or particulate matter can accumulate.
Use high-quality fittings to prevent leaks at connections.
Keep the valve away from extreme vibration unless secured properly.
Maintain a clean air supply to protect the actuator piston from contamination.
Proper installation significantly increases reliability, especially for high-cycle processes.
Even though angle seat valves are low maintenance, some routine checks are recommended.
Inspect seals and replace them periodically if exposed to high temperatures.
Clean the valve internals if used with contaminated media.
Check actuator air pressure to ensure it meets the specified range.
Make sure there are no loose fittings or leakage around joints.
Lubricate moving parts only if specified by the manufacturer.
Regular maintenance ensures consistent performance and extends operational life.
Although aluminum head angle seat valves are highly dependable, improper conditions can still lead to issues.
Valve Fails to Open
Possible cause: insufficient air supply pressure.
Solution: adjust regulator or ensure clean compressed air.
Leak at Valve Seat
Possible cause: worn seal or contamination.
Solution: replace seals or clean the seat area.
Slow Response
Possible cause: buildup inside the actuator.
Solution: inspect and clean the pneumatic components.
Drop in Flow Rate
Possible cause: partially blocked inlet or outlet.
Solution: flush the system and inspect pipelines.
Preventive maintenance avoids most performance issues.
Their combination of speed, durability, corrosion resistance, and cost-effectiveness makes aluminum head angle seat valves essential in modern industrial automation. The ability to work under high temperature and high pressure while maintaining steady performance ensures that these valves continue to be widely adopted in manufacturing, processing, and fluid-control industries.
For factories aiming to improve production efficiency, reduce downtime, and ensure system stability, aluminum head angle seat valves are an ideal choice.
