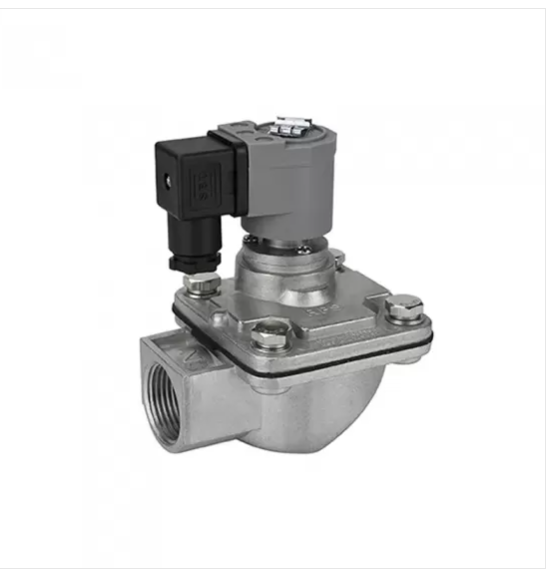

A dust collector valve is one of the most important components in a pulse-jet dust collection system. Its job is simple but critical: release a fast, high-volume burst of compressed air to clean filter bags or cartridges.
Even a high-quality pulse valve can perform poorly if it is installed incorrectly. Improper installation may lead to weak cleaning pulses, continuous air leakage, unstable pressure, premature diaphragm failure, excessive compressed-air consumption, or complete valve malfunction.
For plant operators, dust collector manufacturers, maintenance teams, and system integrators, avoiding common installation mistakes can significantly improve valve reliability and reduce operating costs.
This guide explains the most common dust collector valve installation mistakes, why they matter, and how to prevent them.
One of the most basic but damaging mistakes is installing the valve in the wrong airflow direction.
Dust collector pulse valves are designed so compressed air enters through the inlet side and exits rapidly toward the blow tube or cleaning manifold.
Most valves have:
a flow arrow
an inlet marking
an outlet marking
manufacturer installation instructions
If the valve is reversed, the internal pressure balance may not function correctly.
Possible results include:
valve failure to open
slow response
continuous air leakage
reduced airflow
diaphragm damage
poor filter cleaning
Before installation, always check the airflow arrow or inlet/outlet markings on the valve body.
The compressed-air tank should connect to the valve inlet, while the valve outlet should point toward the filter cleaning system.
Selecting the wrong valve size can significantly reduce system performance.
If the valve is too small, it may restrict airflow and fail to produce enough cleaning energy.
If the valve is unnecessarily large, it may:
consume excessive compressed air
require a larger manifold
increase system cost
create excessive cleaning force
Common dust collector valve sizes include:
3/4 inch
1 inch
1.5 inch
2 inch
2.5 inch
3 inch
The correct valve size should match the dust collector design, blow tube diameter, filter quantity, compressed-air supply, and required cleaning volume.
Do not choose the valve based only on pipe diameter.
Confirm:
| Parameter | Why It Matters |
|---|---|
| Valve Port Size | Determines airflow capacity |
| Filter Bag Quantity | Influences required cleaning volume |
| Bag or Cartridge Length | Affects cleaning demand |
| Operating Pressure | Determines available cleaning energy |
| Manifold Capacity | Must supply enough compressed air |
| Blow Tube Design | Influences air distribution |
Many diaphragm pulse valves are designed to operate in a specific orientation.
Incorrect orientation can affect:
diaphragm movement
pilot valve response
condensate drainage
valve closing speed
For some designs, the solenoid or pilot section should be installed vertically or in a manufacturer-recommended position.
Installing the valve at an unsuitable angle may result in inconsistent operation.
Follow the valve manufacturer's recommended mounting orientation.
If installation space is limited, confirm whether horizontal or angled mounting is permitted before modifying the layout.
Overtightening threaded dust collector valves is a common installation problem.
Installers may assume that more torque creates a better seal. In reality, excessive tightening can damage the valve body or pipe threads.
Possible consequences include:
cracked aluminum valve bodies
distorted threads
damaged seals
difficult future maintenance
misaligned piping
Use the recommended tightening torque.
Apply a suitable thread sealant when required, but avoid excessive force.
The piping should support itself rather than placing mechanical stress on the valve body.
Thread seal tape can help prevent leakage, but using too much can create additional problems.
Small pieces of tape may break loose and enter the valve.
These fragments can block:
pilot passages
bleed holes
diaphragm ports
solenoid channels
Because pulse valves rely on small internal pressure passages, even minor contamination can cause malfunction.
Use thread seal tape sparingly.
Keep the first thread clean so tape does not enter the pneumatic system.
Where appropriate, use an approved liquid thread sealant instead.
Dust collector valves require clean pneumatic passages.
During installation, debris may enter from:
unclean pipes
rust
metal chips
welding slag
thread sealant
construction dust
Contamination inside the valve may prevent the diaphragm from sealing correctly.
Symptoms can include:
continuous air leakage
delayed closing
weak pulses
intermittent operation
Before installing the valve:
clean the air manifold
flush or blow out the piping
inspect threaded connections
remove metal particles
keep valve ports covered until installation
Clean installation conditions can prevent many early valve failures.
Compressed-air quality is often overlooked during installation.
Water, oil, rust, or dirt in the pneumatic system can shorten the service life of a dust collector valve.
Moisture can cause:
internal corrosion
diaphragm deterioration
pilot blockage
freezing in low temperatures
Oil contamination may also affect some diaphragm and sealing materials.
Install appropriate compressed-air treatment equipment such as:
filters
moisture separators
dryers
drain valves
The air supply should be clean and dry according to the requirements of the valve and dust collector system.
The dust collector valve can only release the air available to it.
If the air header or manifold is too small, pressure may drop dramatically every time a valve fires.
This results in:
weak cleaning pulses
inconsistent cleaning between filter rows
longer compressor recovery times
unstable operating pressure
The first valve may perform well while later valves receive insufficient pressure.
The manifold should provide sufficient air storage for the number and size of pulse valves.
System designers should consider:
valve size
pulse duration
pulse interval
operating pressure
number of valves
compressor capacity
A properly sized air header helps maintain consistent cleaning performance.
Even if the air receiver is correctly sized, a restrictive supply pipe can limit recovery.
An undersized air line may prevent the manifold from refilling quickly enough between cleaning pulses.
Possible symptoms include:
pressure fluctuations
weak consecutive pulses
high compressor operating time
poor filter cleaning
Size the air supply line based on total system airflow demand rather than simply matching the connection on the compressor.
Avoid excessive pipe length, unnecessary elbows, or restrictions.
Pulse jet cleaning depends on releasing compressed air very quickly.
Long piping between the air tank and pulse valve can increase pneumatic losses and reduce response.
The most effective configurations generally minimize the distance between the valve and the stored compressed-air volume.
Install the dust collector valve as close to the air manifold as the system design allows.
Avoid unnecessary hoses, fittings, elbows, and narrow passages.
Correct valve installation does not guarantee good cleaning if the blow tube is misaligned.
The outlet airflow should be properly directed into the filter bag or cartridge.
If the blow hole is not centered over the venturi or filter opening, cleaning energy can be lost.
Possible effects include:
uneven filter cleaning
high differential pressure
localized filter wear
excessive compressed-air use
Check the alignment between:
valve outlet
blow tube
nozzle hole
venturi
filter centerline
Correct alignment helps distribute compressed air effectively.
Dust collector valves should not be used as structural supports.
Heavy or misaligned piping can place mechanical stress on the valve body and connections.
Over time, this may lead to:
cracks
seal failure
connection leakage
distorted valve bodies
Use proper pipe supports and brackets.
Align piping before connecting it to the valve.
The valve should not be forced into position to compensate for poor pipe alignment.
The diaphragm is the primary moving component inside many dust collector valves.
Different diaphragm materials provide different resistance to:
temperature
chemicals
oil
moisture
aging
Common materials include:
NBR
EPDM
FKM
Using the wrong diaphragm material can result in premature failure.
For example, a standard diaphragm may not be suitable for high-temperature or chemically aggressive environments.
Confirm operating conditions before ordering the valve.
Provide the supplier with information about:
air temperature
ambient temperature
chemical exposure
operating pressure
industrial environment
Dust collector valves may use solenoid coils with different voltages.
Typical options may include AC or DC configurations depending on the system.
Installing a coil with the wrong voltage can cause:
failure to operate
overheating
coil burnout
unreliable valve response
Check the controller output before installation.
Verify both:
voltage
AC/DC power type
Never assume that two physically identical coils have the same electrical specification.
Loose or incorrect wiring can cause intermittent valve operation.
Common wiring mistakes include:
loose terminals
incorrect voltage
damaged insulation
poor grounding
water entering junction boxes
incorrect controller connections
Use electrical connections suitable for the plant environment.
For outdoor or dusty applications, connectors and enclosures should provide appropriate environmental protection.
After wiring, test each valve individually.
Although dust collector equipment often operates in harsh industrial environments, the solenoid and electrical connections still require appropriate protection.
Rainwater, washdown water, or condensation can enter poorly sealed connections.
This may cause:
corrosion
short circuits
coil failure
unreliable valve operation
Use suitable waterproof connectors and protective enclosures where necessary.
Install cable entries so water does not run directly into the solenoid housing.
Some dust collector valves use remote pilot solenoids.
In these systems, pilot tubing plays an important role in valve response.
If pilot tubing is:
too long
too narrow
leaking
kinked
incorrectly connected
the main valve may open slowly or fail to open fully.
Keep remote pilot lines short and properly sized.
Check all pneumatic connections for leakage.
Avoid sharp bends and unnecessary fittings.
Each dust collector valve has a specified operating pressure range.
Operating below the minimum pressure may cause weak or unreliable valve opening.
Operating above the maximum pressure may damage:
diaphragms
seals
valve bodies
pneumatic components
Confirm the valve pressure rating before commissioning.
Install a pressure regulator or safety device where necessary.
Monitor air header pressure during actual cleaning cycles, not only when the system is idle.
Installation also includes controller setup.
One common mistake is assuming that a longer pulse always improves filter cleaning.
Once enough compressed air has been delivered to clean the filter, extending the pulse may simply waste air.
Excessive pulse duration can increase:
compressor demand
pressure drop
operating costs
filter stress
Start with the recommended pulse settings.
Then optimize pulse duration based on:
differential pressure
filter cleaning performance
compressed-air consumption
If valves fire too quickly one after another, the air manifold may not have enough time to recover.
This can cause each subsequent pulse to become weaker.
Allow sufficient recovery time between pulses.
Monitor the manifold pressure during a complete cleaning cycle.
If pressure steadily decreases, the system may need:
longer intervals
greater air storage
larger supply piping
more compressor capacity
During commissioning, installers sometimes activate the solenoid before the pneumatic system has reached operating pressure.
The valve may appear faulty even though the real issue is insufficient pilot pressure.
Pressurize the system to the required operating range before testing valve performance.
Confirm both static and dynamic air pressure.
Small leaks may seem insignificant during installation, but they can create substantial compressed-air losses over continuous operation.
Leaks may occur at:
valve threads
diaphragm seals
pilot fittings
air manifold connections
tubing joints
After installation, inspect the entire system for leakage.
Repair leaks before putting the dust collector into continuous operation.
A valve may be easy to install but difficult to maintain.
Installing pulse valves behind structural supports, ducts, or other equipment can make diaphragm replacement unnecessarily difficult.
Poor accessibility increases maintenance time and downtime.
Leave enough space around the valve for:
solenoid removal
diaphragm replacement
wiring inspection
connection tightening
routine cleaning
Maintenance access should be considered during the original system layout.
Replacing one valve with another simply because the port size matches can create performance differences.
Valves may differ in:
flow coefficient
response time
diaphragm design
pilot mechanism
pressure range
internal geometry
Mixing different valves across the same dust collector may result in uneven cleaning.
When replacing valves, confirm that performance characteristics are compatible with the original system.
For large maintenance projects, standardized valve models usually simplify spare-parts management.
Installation should not end when the last valve is connected.
A complete system test is necessary.
During commissioning, check:
each valve fires correctly
no continuous leakage occurs
air pressure remains stable
filters receive uniform cleaning
controller sequence is correct
pulse duration is appropriate
differential pressure responds normally
Commissioning helps identify installation mistakes before they develop into larger operational problems.
Before commissioning your system, use this simple checklist.
| Item | Check |
|---|---|
| Flow direction correct | Yes / No |
| Valve size correct | Yes / No |
| Proper valve orientation | Yes / No |
| Pipework supported | Yes / No |
| Air manifold cleaned | Yes / No |
| Compressed air clean and dry | Yes / No |
| Air pressure correct | Yes / No |
| Blow tube aligned | Yes / No |
| Correct solenoid voltage | Yes / No |
| Electrical wiring secure | Yes / No |
| No pneumatic leakage | Yes / No |
| Pulse duration configured | Yes / No |
| Pulse interval configured | Yes / No |
| Maintenance access available | Yes / No |
Compressed air should enter through the valve inlet and exit toward the blow tube or filter cleaning system. Always follow the directional arrow on the valve body.
This depends on the valve design. Some models support multiple orientations, while others have preferred mounting positions. Follow the manufacturer's installation instructions.
Possible causes include dirt under the diaphragm, incorrect installation direction, damaged seals, pilot blockage, loose components, or incorrect diaphragm assembly.
Check operating pressure, air manifold capacity, pipe restrictions, valve size, blow tube alignment, diaphragm condition, and pulse duration.
It may be used on compatible threaded connections, but excessive tape should be avoided because loose fragments can enter and block internal valve passages.
The required operating pressure depends on the specific valve and dust collector design. Always follow the valve manufacturer's recommended pressure range.
Possible causes include insufficient receiver volume, undersized supply piping, excessive pulse duration, short pulse intervals, or inadequate compressor capacity.
Yes. Each valve should be tested during commissioning to confirm correct response, airflow, electrical control, and leak-free operation.
Many dust collector valve problems are not caused by poor valve quality. They result from incorrect sizing, contaminated compressed air, improper piping, poor electrical installation, incorrect pulse settings, or installation errors.
For reliable operation, installers should focus on the complete pulse-cleaning system rather than treating the valve as an isolated component.
The most important principles are straightforward:
install the valve in the correct direction
keep pneumatic passages clean
use properly sized piping and manifolds
maintain clean, dry compressed air
select the correct valve and diaphragm materials
configure pulse duration and intervals correctly
verify blow tube alignment
test the complete system before commissioning
A correctly installed Dust Collector Valve can provide fast response, consistent filter cleaning, lower compressed-air consumption, and longer service life. For OEM dust collector manufacturers, system integrators, and industrial maintenance teams, paying attention to installation details can prevent costly downtime and improve long-term dust collection performance.
