Modern food and beverage production lines depend on precise, hygienic, and repeatable flow control. From milk and beverages to sauces, edible oils, fermentation media, cleaning solutions, and process water, every fluid must be transferred, isolated, diverted, or regulated under carefully controlled conditions.

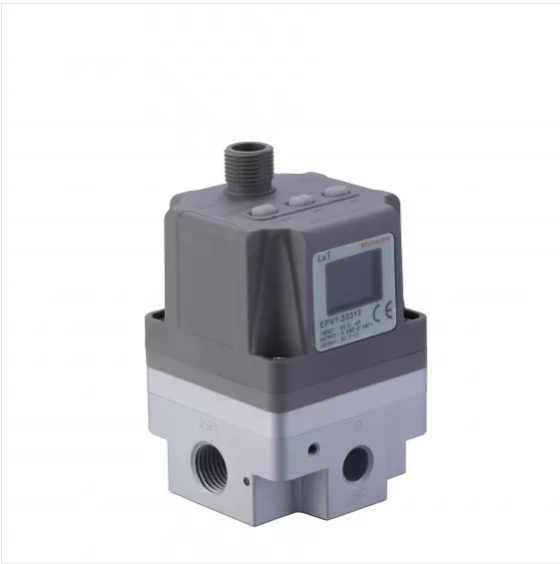

An electro-pneumatic valve combines pneumatic actuation with electrical control, allowing food processing equipment to achieve fast valve response, automated sequencing, remote operation, and integration with PLC-based production systems.
For food equipment manufacturers, processing plants, and system integrators, selecting the right electro-pneumatic valve solution can improve production efficiency while supporting hygienic operation and reliable process control.
An electro-pneumatic valve system typically consists of:
A hygienic process valve
Pneumatic actuator
Solenoid valve or pilot valve
Position sensor or limit switch
Optional electro-pneumatic positioner
PLC or automation system interface
The electrical signal controls the pneumatic actuator, which opens, closes, or positions the process valve.
Food processing plants require much more than basic fluid isolation. Valves must operate reliably while meeting sanitary, automation, cleaning, and production requirements.
Electro-pneumatic valves can receive control signals directly from PLC, DCS, or process control systems.
They can therefore be integrated into automated equipment such as:
Beverage filling lines
Dairy processing systems
Mixing tanks
Pasteurization equipment
Fermentation systems
Food dosing equipment
CIP skids
Process piping systems
Automated valve control reduces dependence on manual operation and improves production consistency.
Pneumatic actuators provide rapid valve movement.
This is particularly useful in applications involving:
Product transfer
Filling
Dosing
Batch switching
Tank isolation
Cleaning circuit changeover
Fast valve response can reduce production delays and help maintain accurate process sequences.
Food-contact valves are commonly manufactured using stainless steel and hygienic internal structures.
Depending on the application, valve solutions may include:
Sanitary butterfly valves
Sanitary ball valves
Diaphragm valves
Seat valves
Divert valves
Mixproof valves
Control valves
Valve selection should minimize dead spaces, product retention, and areas that are difficult to clean.
Valve position feedback enables operators or automated control systems to determine whether a valve is:
Open
Closed
Moving
In an intermediate position
Operating abnormally
This improves process visibility and helps prevent incorrect product routing.
Different sections of a food processing plant require different valve designs.
Pneumatic butterfly valves are widely used for sanitary liquid transfer because of their compact design, simple construction, and fast operation.
Typical applications include:
Milk
Beverage
Water
Juice
CIP solutions
Low- to medium-viscosity food liquids
They are commonly installed in transfer lines, filling equipment, storage tanks, and cleaning systems.
For applications requiring frequent switching, pneumatic butterfly valves can provide an economical automated isolation solution.
Ball valves provide a straight-through flow path and strong shut-off capability.
They are suitable for applications involving:
Food ingredients
Syrups
Edible oils
Process water
Cleaning liquids
Moderately viscous products
Depending on the process, full-port designs can help reduce flow restriction.
For automated food processing equipment, pneumatic ball valves can be equipped with solenoid valves, position sensors, and control boxes.
Diaphragm valves are often selected when high cleanliness and fluid isolation are especially important.
The diaphragm separates the operating mechanism from the process fluid, reducing potential contamination points.
Typical applications include:
Food additives
High-purity process water
Fermentation systems
Sensitive ingredients
Aseptic processing equipment
They are particularly useful in systems where hygienic integrity is more important than maximum flow capacity.
In larger dairy, beverage, and food-processing plants, different liquids may need to move through nearby pipelines simultaneously.
Mixproof valves help separate incompatible fluids while allowing flexible plant operation.
Typical applications include separating:
Product and CIP solution
Product and water
Different beverages
Different food formulations
They can significantly improve process flexibility in highly automated production facilities.
Selecting an actuator is only one part of choosing a food-processing valve.
The valve body and all product-contact components must also suit hygienic production requirements.
Food-contact components commonly use stainless steel such as:
304 stainless steel
316L stainless steel
316L is often preferred for more demanding applications involving aggressive cleaning chemicals, chloride exposure, or higher corrosion requirements.
Smooth internal surfaces help reduce:
Product accumulation
Bacterial growth points
Cleaning difficulty
Cross-contamination risk
Surface finish requirements should be selected according to the food product and hygiene standard of the processing line.
Poorly designed valve cavities can trap product residue.
A hygienic valve should therefore provide a flow path that supports effective drainage and cleaning.
This becomes especially important in:
Dairy systems
Beverage processing
Fermentation
Liquid food production
Aseptic applications
Seal selection depends on:
Product type
Cleaning chemicals
Temperature
Pressure
Fat or oil content
Sterilization conditions
Common elastomer options may include EPDM, FKM, PTFE, or other food-compatible materials depending on the valve design.
The sealing material should always be matched to the actual operating medium and cleaning process.
Production plants must consider what happens when compressed air or electrical power is lost.
Pneumatic actuators can be configured for different failure positions.
The valve automatically closes when air or control power is lost.
This configuration may be used when stopping product flow is the safest condition.
The valve automatically opens when the pneumatic signal is lost.
This may be required for certain cooling or safety-related circuits.
Air pressure is used for both opening and closing.
Double-acting actuators are commonly used where the valve must remain under controlled pneumatic operation in both directions.
The correct fail-safe configuration should be determined by the process risk assessment.
Modern automated food-processing equipment increasingly uses intelligent valve monitoring.
Control units may integrate:
Solenoid valve
Open-position sensor
Closed-position sensor
LED status indication
Electrical terminal connection
Fieldbus communication
This enables the central control system to confirm that a valve has actually reached the commanded position.
For automated production lines, position verification can prevent situations such as:
Pump operating against a closed valve
Product being routed to the wrong tank
CIP fluid entering a production circuit
Filling starting before the transfer path is ready
Before selecting an electro-pneumatic valve for food processing equipment, buyers and engineers should define the actual process conditions.
Different food products behave differently.
Examples include:
Water
Milk
Juice
Beer
Syrup
Cooking oil
Sauce
Yogurt
Food slurry
Cleaning chemicals
Viscosity, solids content, acidity, and temperature can influence valve selection.
The selected valve and actuator must provide reliable sealing and sufficient operating force at the specified line pressure.
Always consider both:
Normal working pressure
Maximum possible pressure
Food processing may involve both cold and hot fluids.
Applications can include:
Chilled beverages
Hot product transfer
Pasteurization
Hot-water cleaning
Steam sterilization
Valve bodies, seals, and actuator components should therefore be selected according to the required temperature range.
Common hygienic pipeline connections include:
Clamp
Weld
Threaded
Flanged
Clamp connections are frequently selected when equipment must be disassembled easily for inspection or maintenance.
Welded connections can provide a more permanent hygienic piping arrangement.
The available compressed-air supply must be considered when sizing pneumatic actuators.
Insufficient air pressure can lead to:
Slow switching
Incomplete closure
Poor sealing
Unstable valve operation
Correct actuator sizing is therefore essential.
Before purchasing, determine whether the valve needs:
Simple ON/OFF solenoid control
Limit switches
Proximity sensors
4–20 mA positioning
0–10 V control
PLC integration
Fieldbus communication
Defining the automation requirements early helps simplify equipment integration.
Even well-designed electro-pneumatic valves require routine inspection.
Recommended checks include:
Inspect seals for wear or swelling
Check pneumatic tubing for leaks
Verify actuator movement
Confirm open/closed sensors
Inspect solenoid operation
Check valve seat condition
Verify clamp connections
Inspect electrical connectors
Confirm CIP compatibility
Test fail-safe operation periodically
Preventive maintenance is usually more economical than unexpected valve failure during production.
For OEM equipment manufacturers and food-processing plants, valve selection should not be based only on valve diameter or price.
A capable supplier should understand:
Food-processing media
Hygienic piping requirements
Pneumatic actuator sizing
Seal compatibility
CIP/SIP operating conditions
Automation signals
PLC integration
Valve position feedback
Installation limitations
For equipment builders, configurable valve packages can simplify system design by combining the valve body, pneumatic actuator, solenoid valve, sensors, and accessories into a complete automated assembly.
Electro-pneumatic valve solutions for food processing equipment provide an effective combination of hygienic fluid control, fast pneumatic actuation, and electrical automation.
From simple ON/OFF sanitary butterfly valves to modulating control valves and automated process manifolds, the right valve solution can support safer product transfer, faster production cycles, reliable CIP cleaning, and more consistent process control.
When specifying an electro-pneumatic valve, engineers should consider not only valve size but also the food medium, viscosity, pressure, temperature, cleaning method, seal material, actuator configuration, fail-safe position, connection type, and automation interface.
A correctly matched valve and control system ultimately becomes an important part of building an efficient, hygienic, and highly automated food-processing line.
It is used to automatically control the flow, isolation, diversion, or regulation of food products, water, steam, and cleaning media through production equipment and sanitary piping systems.
Common options include butterfly valves, ball valves, diaphragm valves, seat valves, divert valves, and sanitary control valves.
Yes. They are widely used to automatically switch between product lines, rinse water, detergent circuits, return pipelines, and other stages of CIP cleaning.
An ON/OFF valve normally operates only in fully open or closed positions. A modulating valve uses a positioner to regulate valve opening continuously for flow, pressure, temperature, or level control.
Useful information includes the process medium, valve size, flow rate, working pressure, operating temperature, connection type, seal requirements, compressed-air pressure, actuator type, control signal, cleaning conditions, and required valve position feedback.
