Electro-pneumatic valves are vital components in modern automation and control systems. They bridge the gap between electrical control signals and pneumatic actuation, enabling precise, fast, and reliable operation of air-driven systems. These valves are widely used in manufacturing, robotics, process control, and many other industrial fields where accurate air pressure and flow control are required.
To understand their role, let’s explore how electro-pneumatic valves work — from their internal mechanism and control principle to their types, advantages, and industrial applications.

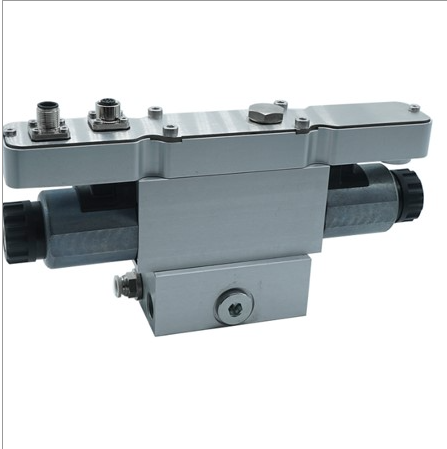

An electro-pneumatic valve is a device that converts electrical energy into pneumatic control. In simple terms, it uses an electrical signal (usually from a PLC, microcontroller, or other control device) to open, close, or modulate the flow of compressed air.
By doing so, it serves as a link between electrical control systems and pneumatic actuators such as cylinders, grippers, or air-driven tools.
This combination of electrical control and pneumatic power makes it possible to achieve fast response times, high accuracy, and remote operation — key advantages in industrial automation.
The operation of an electro-pneumatic valve is based on the coordination between electrical signals and pneumatic components.
1. Signal Input
The valve receives an electrical input signal from the control system.
This signal can be a digital on/off command (e.g., 24V DC for solenoid operation) or an analog signal (e.g., 0–10V or 4–20mA) in the case of proportional electro-pneumatic valves.
2. Electromagnetic Actuation
Inside the valve, a solenoid coil is energized when an electrical signal is applied. The coil generates a magnetic field that pulls a plunger or armature, changing the position of the internal valve spool.
In direct-acting valves, the solenoid directly opens or closes the air passage.
In pilot-operated valves, the solenoid controls a smaller pilot valve, which then uses air pressure to move a larger main valve spool — allowing the handling of higher flow rates with minimal electrical power.
3. Air Flow Control
Once the internal spool or diaphragm moves, it opens or closes specific flow paths. This allows compressed air to pass from the inlet port to the outlet port, or to be vented through an exhaust port.
The result is a controlled change in pneumatic pressure or air flow to downstream equipment.
4. Output and Feedback
The controlled air output drives actuators such as pneumatic cylinders or rotary actuators.
In advanced electro-pneumatic valves (proportional types), a pressure or position sensor provides feedback to the control board. The system then adjusts the solenoid current to maintain the desired pressure level — ensuring stable and accurate pressure control even under fluctuating load conditions.
An electro-pneumatic valve typically includes the following main components:
Solenoid Coil: Converts electrical energy into magnetic force to actuate the valve.
Armature or Plunger: Moves under magnetic force to open or close internal flow paths.
Valve Body: Houses the internal passages and ports for air flow.
Spool or Poppet Assembly: Mechanically regulates the direction or pressure of air.
Pilot Chamber (in pilot-operated models): Uses controlled air pressure to move the main spool with minimal electrical effort.
Electronic Controller (in proportional valves): Receives analog signals, performs feedback control, and regulates current to the solenoid for precise output.
There are several types of electro-pneumatic valves depending on function and design:
On/Off Solenoid Valves:
Operate in a binary state — fully open or fully closed — and are used for simple air supply or exhaust control.
Proportional Electro-Pneumatic Valves:
Adjust air pressure or flow continuously in proportion to the input signal, allowing precise control for applications like tension regulation, coating, or pressing.
Directional Control Valves:
Used to direct airflow between different ports, commonly seen in controlling double-acting pneumatic cylinders.
Pressure Regulating Valves:
Maintain constant output pressure despite changes in inlet pressure or downstream demand, often with built-in feedback mechanisms.
Control System Integration
Electro-pneumatic valves are usually integrated into a closed-loop control system.
Here’s how the process works:
The control system (such as a PLC or industrial controller) sends an electrical signal based on the desired air pressure or actuator movement.
The electro-pneumatic valve converts this electrical signal into a pneumatic output.
A pressure sensor or position sensor measures the actual output and sends feedback to the controller.
The controller compares the actual value with the target setpoint and adjusts the signal accordingly.
This continuous feedback loop ensures high precision, energy efficiency, and responsiveness — ideal for advanced manufacturing processes.
High Precision: Capable of fine-tuned control of air pressure or flow based on analog input signals.
Fast Response: Electrical operation ensures rapid switching and accurate timing.
Remote Operation: Pressure and flow can be adjusted from control panels or automated systems without manual intervention.
Compact Design: Combines electrical and pneumatic control in a single unit, saving space.
Stable Performance: Feedback control minimizes deviations caused by load or environmental changes.
Energy Efficiency: Optimized for reduced air loss and lower power consumption.
Ease of Integration: Compatible with communication networks such as IO-Link, Modbus, or DeviceNet, allowing seamless incorporation into smart factory systems.
Electro-pneumatic valves are used across a wide range of industrial sectors that require accurate air control and high reliability:
Semiconductor Manufacturing: Controls vacuum and pressure in wafer handling and coating processes.
Packaging and Food Processing: Regulates filling, sealing, and tension control systems.
Automotive Industry: Used for assembly automation, braking simulators, and pneumatic testing systems.
Robotics: Controls air-driven grippers and end-effectors with variable gripping force.
Printing and Textile Machinery: Maintains consistent pressure for printing, pressing, and fabric tension control.
Pharmaceutical Production: Enables clean, precise pneumatic control in tablet pressing or dosing processes.
While electro-pneumatic valves are reliable, operational issues can occur due to contamination, incorrect wiring, or pressure imbalance.
No Operation: Check electrical connections and confirm that the solenoid coil receives voltage.
Slow Response: Inspect for clogging, dirty filters, or inadequate supply pressure.
Pressure Instability: Verify that input signals are stable and that there are no air leaks in the system.
Overheating of Solenoid: May indicate continuous overvoltage or excessive duty cycle — ensure correct power supply rating.
Regular inspection and preventive maintenance, such as cleaning filters and checking seals, help extend service life and maintain consistent performance.
Electro-pneumatic valves play an essential role in the seamless interaction between electrical control systems and pneumatic actuators. By converting digital or analog signals into precise air control, they provide the foundation for modern automation, energy efficiency, and production accuracy.
Whether in semiconductor equipment, robotic assembly, or industrial coating systems, understanding how these valves work helps engineers select, operate, and maintain them more effectively — ensuring stable performance and long-term reliability.
