Modern manufacturing depends on fast, repeatable, and precisely controlled production processes. From packaging lines and robotic assembly cells to food processing equipment and chemical dosing systems, manufacturers need reliable components that can convert electrical control signals into physical movement.
An electro-pneumatic valve performs this function by using an electrical signal to control compressed air. It connects programmable controllers, sensors, and industrial automation systems with pneumatic cylinders, rotary actuators, grippers, and other air-operated equipment.
Although an electro-pneumatic valve is often a relatively small component, its performance can directly influence production speed, product consistency, energy consumption, machine uptime, and maintenance costs. Selecting the correct valve and integrating it properly into the control system can therefore make a measurable contribution to overall production efficiency.

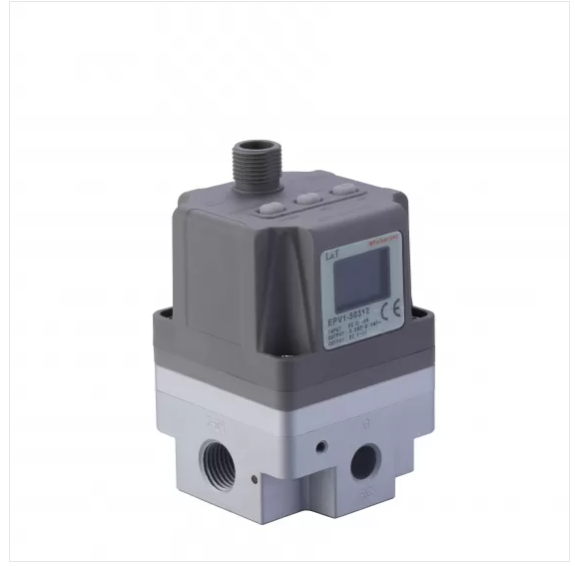

An electro-pneumatic valve is a control device that uses an electrical input to regulate the direction, pressure, or flow of compressed air.
The electrical signal normally comes from a:
Programmable logic controller
Industrial computer
Relay
Sensor
Timer
Human-machine interface
Distributed control system
When the electrical signal energizes the solenoid coil, the valve spool, poppet, or pilot mechanism changes position. This redirects compressed air through different ports, allowing a pneumatic actuator to extend, retract, rotate, clamp, lift, release, or stop.
Electro-pneumatic valves combine the control flexibility of electrical automation with the speed and simplicity of pneumatic power.
The operating process usually begins when a machine controller sends voltage to the valve’s solenoid coil.
The main operating stages include:
The controller generates an electrical command.
Current passes through the solenoid coil.
The coil creates an electromagnetic field.
The magnetic force moves an armature or pilot element.
The valve spool or sealing mechanism changes position.
Compressed air is directed to the required actuator port.
The pneumatic actuator completes the programmed movement.
When the electrical signal is removed, a spring, second solenoid, or pneumatic pilot signal returns the valve to another position.
Because this process can occur rapidly and repeatedly, electro-pneumatic valves are well suited to automated production lines that require thousands or millions of operating cycles.
Production efficiency is not determined only by machine speed. It also depends on process repeatability, downtime, energy usage, changeover time, maintenance requirements, and the ability to respond to different production conditions.
Electro-pneumatic valves can improve efficiency in several important ways.
One of the most direct benefits is faster actuator control.
Electro-pneumatic valves can rapidly direct compressed air to cylinders and other pneumatic devices. This allows machines to complete actions such as:
Clamping
Sorting
Cutting
Pressing
Positioning
Lifting
Rejecting
Sealing
Filling
Material transfer
A valve with suitable flow capacity and response time helps the actuator move without unnecessary delay.
For example, on a packaging line, a fast valve can reduce the time required to open a filling gate, move a sealing jaw, or reject a defective package. Even a small reduction in each machine cycle can produce a significant increase in total daily output.
However, faster operation does not simply mean selecting the largest valve available. The valve, tubing, air pressure, actuator size, and exhaust configuration must be properly matched. An oversized valve may increase cost and air consumption without improving the actual cycle time.
Manual pneumatic control may be acceptable for simple equipment, but it cannot provide the same repeatability as automated electro-pneumatic control.
An electrical controller can activate the valve at the same point in every production cycle. This creates more consistent actuator timing, positioning, and sequencing.
Improved repeatability helps manufacturers maintain:
Consistent product dimensions
Accurate filling volumes
Reliable clamping force
Stable assembly sequences
Uniform cutting or pressing operations
Controlled material handling
Predictable cycle times
In industries where minor variations can create rejected products, repeatable valve control can help reduce waste and improve first-pass yield.
Electro-pneumatic valves can be integrated directly into automated control systems.
A programmable logic controller can activate valves according to signals received from:
Proximity sensors
Photoelectric sensors
Pressure switches
Temperature sensors
Flow sensors
Vision inspection systems
Safety devices
Position sensors
This integration allows the production line to respond automatically to actual operating conditions.
For example, a sensor may detect whether a product is present before a pneumatic gripper closes. If no product is detected, the controller can prevent unnecessary movement. A vision system may identify a defective component and command a valve to activate a rejection cylinder.
This type of closed-loop control reduces unnecessary actions and helps prevent equipment collisions, product damage, and processing errors.
Electro-pneumatic automation can replace repetitive manual actions such as opening valves, moving fixtures, clamping workpieces, sorting products, or transferring materials.
By automating these tasks, manufacturers can reduce operator workload and allow employees to focus on inspection, quality control, machine setup, and production management.
Automation can also improve consistency because machine-controlled valve operations are less affected by operator fatigue or variation.
The goal is not simply to remove labor. It is to use operators more effectively while assigning repetitive, high-frequency, or ergonomically difficult actions to automated equipment.
Manufacturers increasingly need flexible production lines that can handle different product sizes, package formats, materials, or production batches.
Electro-pneumatic valves connected to a programmable controller can support automatic machine adjustments during product changeovers.
The controller may activate pneumatic cylinders to change:
Guide rail positions
Stopper locations
Fixture arrangements
Clamping positions
Diverter directions
Tool settings
Packaging dimensions
Instead of manually adjusting every mechanical component, operators can select a stored production recipe from the machine interface.
Faster changeovers allow manufacturers to produce smaller batches more economically and reduce the amount of non-productive time between orders.
A stable pneumatic control system can improve production quality by ensuring that every process action occurs with the correct timing and sequence.
For example, electro-pneumatic valves may control:
The pressure applied during assembly
The timing of a dispensing process
The position of a workpiece during machining
The opening duration of a filling mechanism
The movement of a cutting blade
The activation of a product rejection gate
If these operations are inconsistent, manufacturers may experience dimensional variation, incomplete assembly, leakage, packaging defects, or material waste.
Reliable valve operation helps maintain process consistency and reduces the need for rework.
Valve failures can stop an entire production machine, especially when the valve controls a critical actuator.
High-quality electro-pneumatic valves are designed for repeated switching and long operating life. When combined with clean compressed air, correct voltage, suitable lubrication, and preventive maintenance, they can provide stable service over many production cycles.
Modern valve systems may also support diagnostic functions such as:
Coil status indication
Electrical fault detection
Pressure monitoring
Communication alarms
Cycle counting
Output feedback
These functions make it easier for maintenance teams to locate problems before they cause prolonged production interruptions.
A modular valve manifold can further reduce downtime because individual valve units may be inspected or replaced without redesigning the complete pneumatic circuit.
Compressed air is convenient and widely used, but it can become an expensive energy source when systems are poorly designed.
Electro-pneumatic valves can support more efficient air use when they are properly selected and controlled.
Efficiency improvements may include:
Activating cylinders only when movement is required
Shutting off air to inactive machine sections
Reducing unnecessary actuator strokes
Using pressure control for low-force operations
Selecting valves with appropriate flow capacity
Reducing leakage through reliable sealing
Minimizing tubing length and pressure loss
Using energy-saving circuits for holding loads
For example, a machine may require high pressure for a clamping operation but lower pressure for returning the cylinder. An electro-pneumatic pressure control system can provide different pressure levels for each movement, reducing unnecessary air consumption.
Production efficiency is closely related to safety. Accidents, equipment damage, and emergency shutdowns can create significant downtime.
Electro-pneumatic valves can be integrated into machine safety circuits to control hazardous movements.
Depending on the valve configuration and machine design, the system may:
Release pneumatic pressure during an emergency stop
Block actuator movement
Return a cylinder to a safe position
Prevent unexpected restart
Isolate a machine section
Provide controlled pressure buildup during startup
Safety-related valve functions must be selected according to the machine risk assessment and applicable safety requirements. A standard directional valve should not automatically be treated as a safety valve unless it has the required design and certification.
Different valve types perform different control functions.
| Valve type | Main function | Typical application |
|---|---|---|
| Directional control valve | Changes the direction of airflow | Operating cylinders and rotary actuators |
| Solenoid valve | Electrically opens, closes, or redirects air | General automation equipment |
| Proportional pressure valve | Adjusts outlet pressure according to an electrical signal | Variable force and pressure control |
| Proportional flow valve | Regulates airflow continuously | Speed and process control |
| Soft-start valve | Gradually introduces air pressure | Safe machine startup |
| Quick exhaust valve | Exhausts air near the actuator | Faster cylinder movement |
| Shut-off valve | Isolates the compressed air supply | Maintenance and emergency control |
| Valve manifold | Combines several valves in one assembly | Multi-actuator automated machines |
Selecting the correct valve type is essential because a standard on-off solenoid valve cannot provide the same control as a proportional valve.
Electro-pneumatic valves are used throughout industrial automation.
Packaging equipment uses pneumatic valves to control filling nozzles, sealing jaws, cutting devices, product stoppers, pushers, and reject mechanisms.
Fast valve response helps increase the number of packages processed per minute, while repeatable control improves sealing and filling consistency.
Electro-pneumatic valves may control cylinders, process dampers, dosing equipment, conveying systems, and hygienic process valves.
Materials and valve structures should be selected according to environmental conditions, cleaning requirements, temperature, and contact restrictions.
Automotive production lines use pneumatic equipment for welding fixtures, component positioning, clamping, lifting, pressing, and robotic tooling.
Reliable valve operation helps maintain synchronized movement across high-volume assembly processes.
Electro-pneumatic valves control precision handling devices, small cylinders, vacuum generators, component feeders, and testing fixtures.
Compact valve designs and fast switching are particularly important in machines with limited installation space and short production cycles.
Pneumatic valves may be used in filling, sealing, labeling, material handling, and laboratory automation systems.
Clean operation, material compatibility, repeatability, and traceable component quality are especially important in these applications.
Injection molding machines and supporting equipment use electro-pneumatic valves for part removal, mold-related auxiliary movement, material handling, cutting, and packaging.
Valves can control fabric positioning, tensioning devices, cutters, rollers, printing components, and sorting systems.
Fast, synchronized pneumatic movement can reduce production interruptions and improve product consistency.
The valve should be selected according to the actual pneumatic circuit rather than only by port size or price.
Determine whether the application requires a:
2/2-way valve
3/2-way valve
5/2-way valve
5/3-way valve
Normally open valve
Normally closed valve
Single-solenoid valve
Double-solenoid valve
The required valve configuration depends on the actuator type and the desired fail position.
The valve must provide enough airflow for the actuator to move at the required speed.
Flow capacity is influenced by:
Port size
Internal passage size
Valve coefficient
Supply pressure
Exhaust resistance
Tubing diameter
Tubing length
Actuator volume
Insufficient flow can cause slow cylinder movement even when the supply pressure is adequate.
Confirm the minimum and maximum working pressure.
Some pilot-operated valves require a minimum pressure to switch reliably. Direct-acting valves may operate without pilot pressure but can have lower flow capacity.
Important electrical parameters include:
Rated voltage
AC or DC supply
Power consumption
Connector type
Electrical protection
Allowable voltage variation
Manual override requirements
Signal compatibility
The solenoid voltage must match the output of the PLC, relay, or control module.
High-speed applications may require valves with short switching times.
However, the complete system response also depends on the controller, tubing, actuator, pressure, and load. Valve response time should therefore be evaluated as part of the entire pneumatic circuit.
Consider whether the valve will be exposed to:
Dust
Moisture
Oil
Chemicals
Washdown processes
High or low temperatures
Vibration
Outdoor conditions
Explosive atmospheres
The housing material, seal material, electrical enclosure, and protection rating should match the operating environment.
Individual valves are simple and flexible for small systems. Valve manifolds are often more efficient for machines with multiple pneumatic actuators.
A manifold can reduce:
Installation space
Tubing complexity
Electrical wiring
Assembly time
Leakage points
Maintenance effort
Manifolds may also support industrial communication networks, allowing several valves to be controlled through one electrical connection.
Even a correctly selected valve may perform poorly if the pneumatic system is not properly maintained.
Common problems include:
Leaks at fittings, tubing, seals, and valve ports increase compressor demand and reduce actuator performance.
Water, oil, dust, or rust particles can damage seals and cause valve spools to stick.
Low voltage may prevent complete valve switching, while excessive voltage can overheat the coil.
Narrow or excessively long tubing restricts airflow and slows actuator movement.
An undersized valve limits actuator speed. An oversized valve may increase cost and air consumption without improving production.
Blocked silencers or poorly sized exhaust components can prevent air from leaving the actuator quickly.
Damaged valve seals can cause internal leakage, unstable pressure, or actuator drift.
A preventive maintenance program can help maintain production efficiency.
Recommended practices include:
Inspect valves and fittings for leakage.
Maintain clean and dry compressed air.
Check filters and drain moisture regularly.
Confirm that electrical connectors remain secure.
Measure coil voltage during operation.
Replace damaged tubing and seals.
Clean or replace blocked exhaust silencers.
Monitor valve switching time.
Keep spare valves or coils for critical machines.
Record failures to identify recurring system problems.
Maintenance should focus on the complete pneumatic circuit rather than only the valve. A slow actuator may be caused by the air supply, flow control valve, tubing, cylinder, load, or exhaust path.
A pneumatic valve controls compressed air. An electro-pneumatic valve uses an electrical signal to activate the pneumatic control function, making it easier to integrate with automated equipment.
Yes. Fast and repeatable valve switching can reduce actuator cycle times, but the valve must be correctly matched with the actuator, tubing, pressure, and airflow requirements.
They can reduce energy use by eliminating unnecessary movements, controlling pressure more accurately, shutting off idle machine sections, and reducing air leakage. The efficiency improvement depends on the overall system design.
Possible causes include insufficient airflow, low pressure, restricted tubing, blocked exhaust silencers, contamination, worn seals, incorrect voltage, or an undersized valve.
For machines with several pneumatic actuators, manifolds can reduce installation space, wiring, tubing, leakage points, and assembly time. Individual valves may still be suitable for simple or widely separated applications.
There is no single replacement interval. Valve life depends on switching frequency, air quality, pressure, temperature, load, valve design, and maintenance conditions. Condition monitoring is generally more useful than replacing valves only according to time.
Yes. Valves and solenoid systems may be customized according to voltage, flow capacity, port size, connector type, sealing material, mounting method, environmental protection, and control requirements.
Electro-pneumatic valves improve production efficiency by connecting electrical automation systems with fast and reliable pneumatic movement. They help manufacturers shorten machine cycles, improve process repeatability, reduce manual operation, support rapid changeovers, lower downtime, and manage compressed air more effectively.
The greatest efficiency gains come from selecting the valve as part of the complete automation system. Flow capacity, pressure range, electrical specifications, response time, tubing size, actuator requirements, and operating environment must all be considered.
When properly specified and maintained, electro-pneumatic valves can provide accurate, repeatable, and energy-conscious control for packaging, automotive, food processing, electronics, pharmaceutical, textile, and general manufacturing equipment.
