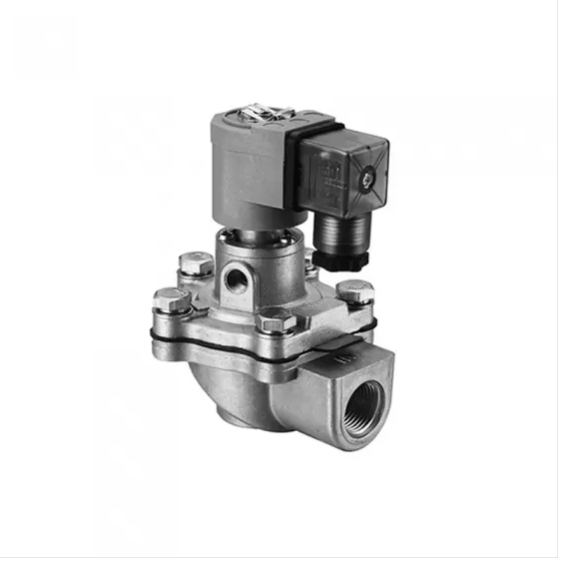

In a pulse-jet dust collection system, the dust collector valve plays a critical role in releasing compressed air into the filter bags or cartridges. However, valve size and operating pressure are not the only factors that determine cleaning performance. Pulse duration, sometimes called pulse width or pulse-on time, can have a major effect on cleaning efficiency, compressed air consumption, filter life, and overall system operating cost.
Setting the pulse duration too short may not provide enough cleaning energy to remove accumulated dust. Setting it too long, on the other hand, does not necessarily improve cleaning and may simply waste compressed air.
Understanding how pulse duration affects dust collector valve performance can help plant operators, system designers, and equipment buyers achieve more reliable filtration while reducing unnecessary energy consumption.
Pulse duration refers to the amount of time that the pulse valve remains activated during each cleaning cycle.
When the controller sends an electrical signal to the solenoid, the dust collector valve opens rapidly and releases compressed air from the air manifold or header tank. This short burst of compressed air travels through the blow tube and creates a pressure wave inside the filter bag or cartridge.
The pressure wave causes the filter media to expand or flex, helping accumulated dust detach from the surface and fall into the hopper.
Pulse duration determines how long compressed air is discharged during each cleaning pulse.
For example, a pulse duration may be set to:
50 milliseconds
100 milliseconds
150 milliseconds
200 milliseconds
300 milliseconds
The correct setting depends on the valve design, dust collector configuration, filter media, dust characteristics, air pressure, and cleaning requirements.
Pulse duration directly influences the volume of compressed air released through the dust collector valve.
In simple terms:
Longer pulse duration = more compressed air released
However, longer does not always mean better.
Once the filter receives enough cleaning energy to remove the dust cake, additional compressed air may provide little improvement.
The objective is therefore to find a pulse duration that provides sufficient cleaning force without wasting compressed air.
Several aspects of dust collector performance are affected.
The first effect of pulse duration is the amount of cleaning energy delivered to the filter.
When the dust collector valve opens, compressed air enters the blow tube at high speed. This generates a pressure pulse inside the filter element.
If the pulse duration is too short, the valve may close before sufficient air enters the filter.
Possible consequences include:
incomplete dust removal
increasing differential pressure
reduced airflow
frequent cleaning cycles
higher fan energy consumption
Increasing the pulse duration can improve cleaning when the original setting does not provide enough compressed air.
However, after a certain point, longer pulse duration may provide little additional cleaning benefit.
Compressed air is one of the major operating costs of pulse-jet dust collectors.
Every time the dust collector valve opens, compressed air stored in the air manifold is discharged.
Longer pulse durations consume more air.
Consider two systems using the same valve:
| Operating Condition | System A | System B |
|---|---|---|
| Pulse Duration | 100 ms | 250 ms |
| Cleaning Frequency | Same | Same |
| Valve Size | Same | Same |
| Operating Pressure | Same | Same |
| Air Consumption | Lower | Higher |
If both settings provide similar cleaning performance, the shorter pulse duration will normally be more energy efficient.
For large dust collectors containing dozens or hundreds of pulse valves, even small reductions in pulse duration may create meaningful compressed-air savings over continuous operation.
Effective filter cleaning depends on producing a sufficiently strong and rapid pressure wave.
The pulse should remove excess dust while leaving a thin, stable dust layer when appropriate for filtration efficiency.
A pulse that is too weak may leave excessive dust on the filter.
A pulse that is unnecessarily long may over-clean the filter or create excessive mechanical stress.
The correct pulse duration helps maintain the balance between:
dust removal → stable differential pressure → efficient filtration
Rather than simply increasing pulse time, system operators should evaluate whether the filter is actually being cleaned effectively.
Differential pressure is one of the most useful indicators of dust collector performance.
It represents the resistance to airflow through the filters.
When dust accumulates, differential pressure increases.
If pulse duration is too short, the cleaning system may fail to remove enough dust. Differential pressure may gradually rise even though the pulse valves are operating.
Possible symptoms include:
reduced dust collector airflow
increased fan load
poor process ventilation
more frequent cleaning
premature filter replacement
Increasing pulse duration slightly may improve cleaning and stabilize differential pressure.
However, operators should also check other factors such as air pressure, valve condition, diaphragm wear, blow tube alignment, and filter condition.
Pulse cleaning creates mechanical movement in the filter media.
Each cleaning pulse causes the filter bag or cartridge to flex.
If pulse intensity or pulse duration is excessive, repeated cleaning may contribute to faster filter wear.
Possible long-term effects include:
filter fabric fatigue
seam damage
cartridge deformation
premature filter failure
For this reason, the objective should not be to use the strongest possible cleaning pulse.
Instead, the system should use the minimum pulse energy required to maintain acceptable differential pressure.
This approach can help extend filter service life.
Pulse duration also affects the operating cycle of the valve.
Dust collector valves are designed to open quickly and close rapidly. Their performance depends heavily on the diaphragm, pilot system, solenoid, spring, and internal airflow passages.
Excessively long or unnecessary valve activation increases operating time and compressed-air flow.
Although pulse frequency often has a greater influence on total valve cycles, optimizing pulse duration can still help reduce unnecessary system operation.
Good valve maintenance is equally important.
Operators should regularly inspect:
diaphragms
solenoid coils
pilot valves
seals
springs
valve seats
air supply quality
A properly maintained valve provides faster response and more consistent cleaning pulses.
When the pulse duration is too short, the filter may not receive enough cleaning energy.
Typical symptoms can include:
Dust remains attached to the filter surface, increasing airflow resistance.
As filter resistance increases, the dust collector may remove less contaminated air from the process.
The controller may trigger cleaning more frequently because differential pressure remains high.
Dust may continue building on the filter surface.
Some filter rows may clean effectively while others remain heavily loaded.
Before increasing pulse duration, operators should confirm that the problem is not caused by insufficient pressure or a malfunctioning valve.
A common assumption is that a longer pulse provides better cleaning.
In reality, excessive pulse duration can create several problems.
Once effective cleaning has occurred, additional compressed air may simply escape without improving dust removal.
Long pulses can consume a large volume of air, particularly when several valves operate in sequence.
The header pressure may not recover quickly enough before the next cleaning pulse.
Higher compressed-air demand increases compressor operating time and energy consumption.
Excessive cleaning energy can increase mechanical stress on the filter media.
More compressed air does not automatically translate into better filtration performance.
This is why pulse duration should be optimized rather than maximized.
Pulse duration and pulse interval are sometimes confused, but they control different parts of the cleaning cycle.
Pulse duration is how long the dust collector valve remains energized during one cleaning event.
Pulse interval is the time between two cleaning pulses.
For example:
Pulse duration: 100 ms
Pulse interval: 10 seconds
This means the valve opens for approximately 0.1 seconds, followed by a 10-second interval before the next programmed pulse.
Both parameters influence system performance.
| Parameter | Main Function |
|---|---|
| Pulse Duration | Determines how long compressed air is released |
| Pulse Interval | Determines how frequently cleaning pulses occur |
| Operating Pressure | Influences cleaning force |
| Valve Size | Influences airflow capacity |
| Blow Tube Design | Controls air distribution |
| Filter Condition | Influences required cleaning energy |
Optimizing only one parameter while ignoring the others may not produce the desired results.
Pulse duration and operating pressure work together.
A relatively short pulse at the correct pressure may provide effective cleaning.
By contrast, increasing pulse duration cannot always compensate for inadequate air pressure.
For example, if the air manifold pressure is too low because of an undersized compressor or insufficient air storage capacity, increasing pulse duration may actually worsen the problem by consuming even more air.
Therefore, when cleaning performance is poor, operators should evaluate:
compressed air pressure
pulse duration
valve response
manifold volume
pulse interval
blow tube configuration
filter condition
The complete pneumatic system should be considered rather than focusing only on the controller settings.
There is no universal pulse duration suitable for every dust collector.
The correct value depends on the system design.
A practical optimization process is to begin with the equipment or valve manufacturer's recommended settings and then monitor system performance.
Record current operating data, including:
pulse duration
pulse interval
compressed air pressure
differential pressure
cleaning frequency
airflow
compressor demand
This creates a reference point for later adjustments.
Differential pressure should remain within the normal operating range specified for the system.
If differential pressure gradually rises, cleaning may be insufficient.
Avoid making large changes immediately.
Increase or decrease pulse duration gradually and observe how the dust collector responds.
If cleaning performance remains unchanged after shortening the pulse, the original pulse may have been unnecessarily long.
Poor cleaning is not always caused by pulse duration.
A worn diaphragm or restricted pilot passage can reduce valve opening speed and airflow.
Old, blinded, damaged, or moisture-contaminated filters may not respond properly even when pulse settings are correct.
Several operating conditions determine how much pulse energy is required.
Fine, sticky, hygroscopic, or electrostatic dust may be more difficult to remove.
Examples include:
cement dust
chemical powder
food powder
mineral dust
pharmaceutical powder
Dust characteristics should therefore be considered when configuring the cleaning system.
Different filter materials respond differently to pulse cleaning.
Common filter media include:
polyester
polypropylene
aramid
PTFE membrane
fiberglass
antistatic fabrics
The allowable cleaning intensity can vary depending on the material.
Bag filters and cartridge filters may require different cleaning conditions.
The shape, length, diameter, pleat design, and support structure influence how the pressure wave travels through the filter.
Valve diameter affects airflow capacity.
Common pulse valve sizes may include:
3/4 inch
1 inch
1.5 inch
2 inch
2.5 inch
3 inch
Larger valves can release significantly more air, which means pulse duration should be considered together with valve flow capacity.
The compressed air tank must provide sufficient stored air for each pulse.
If the manifold is undersized, pressure may drop excessively during cleaning.
Different systems operate at different compressed-air pressures.
Higher pressure usually provides stronger cleaning energy, but excessive pressure may increase energy consumption and filter stress.
Pulse duration alone does not determine cleaning performance.
The opening and closing speed of the dust collector valve is equally important.
A well-designed diaphragm pulse valve should open rapidly, producing a sharp burst of compressed air.
If the valve opens slowly because of diaphragm wear, pilot restrictions, contamination, or poor design, even a longer electrical pulse may not create an effective cleaning shock.
This is why two valves using the same controller settings can produce very different cleaning results.
When selecting a valve, buyers should consider:
valve response speed
flow coefficient
diaphragm design
pressure range
temperature compatibility
body material
connection type
diaphragm material
maintenance requirements
The diaphragm is one of the most important components inside a pulse jet valve.
When the solenoid pilot is activated, the pressure difference across the diaphragm causes the main valve to open.
A damaged diaphragm can cause:
slow opening
incomplete opening
continuous air leakage
weak pulse cleaning
slow closing
inconsistent pulse performance
In such situations, increasing pulse duration may temporarily appear to improve cleaning, but it does not solve the underlying valve problem.
Inspecting or replacing the diaphragm is often the better solution.
For many industrial facilities, improving pulse settings is an opportunity to reduce energy consumption.
Suppose a dust collector contains 120 pulse valves and each valve operates thousands of times during a production period.
If every pulse is longer than necessary, the accumulated compressed-air waste can become significant.
Optimizing pulse duration can therefore contribute to:
lower compressor energy consumption
reduced pressure fluctuations
more stable cleaning
lower equipment operating costs
improved pneumatic system efficiency
This is particularly important in large baghouse installations.
Pulse jet cleaning systems are widely used across industries.
Large volumes of fine cement dust can create significant filter loading. Stable pulse cleaning helps maintain airflow through kiln, mill, clinker, and material handling dust collectors.
Grinding, cutting, melting, and material handling processes generate heavy particulate loads that require reliable pulse valve operation.
Flour, starch, sugar, seasoning, and other powders may require carefully controlled cleaning to maintain filtration efficiency.
Fine powder handling often demands consistent filter performance and reliable pneumatic control.
Sawdust and fine wood particles can rapidly build up on filters if pulse cleaning is inadequate.
Different chemical powders may have unique adhesion and filter-cleaning characteristics, making correct valve settings especially important.
Operators should investigate their pulse cleaning parameters when they notice:
continuously increasing differential pressure
unusually frequent pulse cleaning
excessive compressed-air consumption
unstable manifold pressure
weak cleaning sound
dust remaining heavily attached to filters
short filter service life
inconsistent valve operation
frequent compressor cycling
However, these symptoms should not automatically be blamed on pulse duration.
The valve, air supply, filter condition, and dust collector design should all be inspected.
A reliable pulse cleaning system requires more than controller adjustment.
Consider the following practices.
Moisture, oil, rust, and particles can contaminate pilot passages and diaphragms.
Installing appropriate air treatment equipment can improve valve reliability.
The compressed air manifold should recover sufficiently before the next valve fires.
Worn diaphragms can significantly reduce pulse performance.
A damaged coil or pilot assembly may prevent the valve from opening correctly.
Incorrectly positioned blow tubes can reduce cleaning energy delivered to the filter.
Cleaning frequency and pulse length should be treated as part of the same control strategy.
Differential pressure provides valuable feedback about whether the filters are being cleaned effectively.
When purchasing replacement valves or designing a new dust collection system, pulse duration should be considered alongside valve specifications.
Buyers should provide the supplier with information such as:
| Selection Parameter | Information to Confirm |
|---|---|
| Valve Size | Required port diameter |
| Connection | Threaded, compression, flange, or immersion |
| Operating Pressure | Available compressed-air pressure |
| Voltage | Solenoid coil voltage |
| Diaphragm Material | NBR, EPDM, FKM or other material |
| Dust Type | Powder characteristics |
| Filter Type | Bag or cartridge |
| Working Temperature | Ambient and process temperature |
| Pulse Control | Controller output and pulse duration |
| Application | Cement, food, chemical, woodworking, etc. |
Providing complete operating information helps manufacturers recommend a more suitable dust collector valve.
Pulse duration varies by valve design and dust collector configuration. Many pulse-jet systems operate with short pulses measured in milliseconds, but the appropriate value should follow the equipment manufacturer's recommendations and actual system conditions.
Not always. Once enough compressed air has been delivered to clean the filter, extending the pulse may simply increase air consumption without improving cleaning performance.
Yes. If the existing setting is unnecessarily long, reducing pulse duration while maintaining acceptable differential pressure can lower compressed-air use.
The filter may not receive enough cleaning energy, causing dust buildup, increasing differential pressure, and reducing airflow.
Excessive or overly aggressive cleaning can increase mechanical stress on filter media. Proper pulse duration and pressure help reduce unnecessary filter movement.
The problem may be caused by low air pressure, a worn valve diaphragm, blocked pilot passages, incorrect blow tube alignment, damaged filters, or insufficient manifold capacity.
Not necessarily. The correct settings depend on valve size, system layout, filter type, dust characteristics, operating pressure, and cleaning strategy.
Pulse duration has a direct influence on dust collector valve performance, but simply increasing the pulse time is rarely the best solution.
An effective pulse-jet cleaning system needs the right balance between:
sufficient cleaning energy
compressed-air consumption
differential pressure
filter life
valve response
cleaning frequency
The best approach is to use the shortest pulse that still delivers reliable filter cleaning under actual operating conditions.
For equipment manufacturers, system integrators, and industrial plants, selecting a fast-response, properly sized Dust Collector Valve is equally important. A well-designed valve can deliver a sharp and consistent air pulse, helping improve filter cleaning while reducing unnecessary compressed-air consumption and maintenance requirements.
