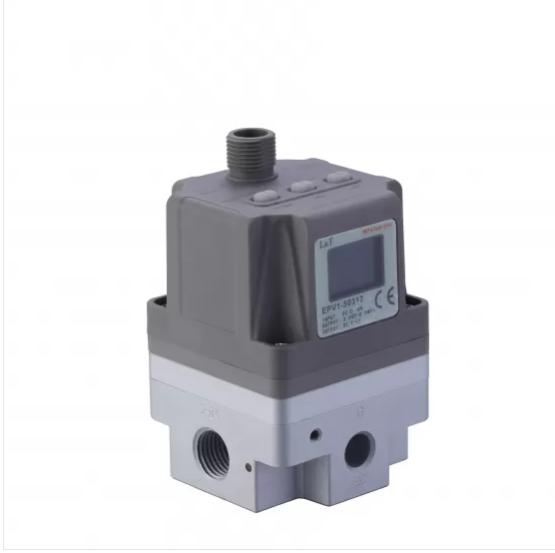

Industrial automation systems rely heavily on precise, efficient, and reliable fluid and air control. One of the most critical components in these systems is the Electro-Pneumatic Valve, which converts electrical signals into pneumatic actions to control the flow, pressure, and direction of compressed air.
Choosing the right electro-pneumatic valve directly impacts equipment performance, production efficiency, energy consumption, and long-term maintenance costs. With various valve types, sizes, materials, and control options available, selecting the ideal solution can be challenging.
This guide explains the key factors buyers, engineers, and system integrators should consider when selecting an electro-pneumatic valve for industrial automation applications.
An electro-pneumatic valve is a device that combines electrical and pneumatic technologies to control compressed air systems automatically. It receives electrical signals from PLCs, sensors, or control systems and actuates airflow to drive cylinders, actuators, grippers, and other pneumatic equipment.
These valves are widely used in:
Manufacturing production lines
Packaging machinery
Automotive assembly systems
Food and beverage processing
Pharmaceutical production
Semiconductor manufacturing
Material handling systems
Robotics and automated equipment
Their primary function is to improve operational accuracy while reducing manual intervention.
Selecting an inappropriate valve may lead to several issues:
Slow machine response times
Excessive energy consumption
Frequent system failures
Air leakage
Increased maintenance costs
Reduced equipment lifespan
Production downtime
A properly selected valve delivers:
Faster cycle times
Precise motion control
Higher reliability
Better energy efficiency
Reduced operating costs
Improved production consistency
1. Determine Your Application Requirements
Before selecting an electro-pneumatic valve, clearly define your application needs.
Consider the following questions:
What equipment will the valve control?
Examples include:
Pneumatic cylinders
Rotary actuators
Vacuum systems
Grippers
Conveyor systems
Robotic arms
What type of motion is required?
Common requirements include:
Start and stop control
Directional switching
Pressure regulation
Proportional control
Flow adjustment
What is the operating environment?
Environmental conditions influence valve selection significantly.
Evaluate:
Temperature range
Humidity levels
Dust exposure
Chemical exposure
Washdown requirements
Outdoor installation conditions
2. Choose the Correct Valve Function
Electro-pneumatic valves come in different configurations.
2/2 Way Valve
Two ports and two positions.
Suitable for:
Simple ON/OFF applications
Air supply isolation
3/2 Way Valve
Three ports and two positions.
Suitable for:
Single-acting cylinders
Venting applications
5/2 Way Valve
Five ports and two positions.
Suitable for:
Double-acting cylinders
Most industrial automation systems
5/3 Way Valve
Five ports and three positions.
Suitable for:
Complex motion control
Position holding
Safety applications
Selecting the correct valve configuration ensures optimal machine operation.
3. Consider Flow Rate Requirements
Flow capacity directly affects system performance.
The valve must deliver sufficient airflow to support actuator speed requirements.
Key specifications include:
Cv Value (Flow Coefficient)
Indicates how much airflow passes through the valve.
A higher Cv value means:
Greater airflow capacity
Faster actuator movement
Port Size
Common sizes include:
M5
G1/8
G1/4
G3/8
G1/2
Undersized valves may restrict airflow and reduce productivity.
Oversized valves can increase costs unnecessarily.
Always match the valve size to system requirements.
4. Verify Operating Pressure Range
Every electro-pneumatic valve has a specified pressure range.
Typical industrial pressure ranges:
Minimum: 0.15 MPa
Standard: 0.4 – 0.8 MPa
Maximum: 1.0 MPa
Ensure compatibility with your compressed air system.
Incorrect pressure ratings may result in:
Poor valve performance
Shortened service life
Seal damage
Equipment failure
5. Select the Appropriate Solenoid Voltage
The solenoid converts electrical signals into mechanical movement.
Common voltage options include:
DC Voltages
12V DC
24V DC
24V DC is widely used in industrial automation due to safety and compatibility with PLC systems.
AC Voltages
110V AC
220V AC
AC versions are commonly used in conventional machinery.
Verify compatibility with your control system before purchasing.
6. Evaluate Response Speed Requirements
High-speed production lines require fast valve switching.
Industries that demand rapid response include:
Packaging
Electronics assembly
Semiconductor manufacturing
Pharmaceutical production
Key specifications to evaluate:
Response time
Cycle frequency
Switching durability
Fast-response valves improve productivity and reduce bottlenecks.
7. Consider Mounting and Installation Options
Proper installation simplifies maintenance and system integration.
Common mounting methods include:
Manifold Mounting
Benefits:
Compact design
Centralized air distribution
Easy maintenance
Reduced tubing
Ideal for multi-valve systems.
Inline Mounting
Benefits:
Flexible installation
Lower initial cost
Suitable for standalone applications.
8. Select Durable Materials
Valve materials should match the operating environment.
Valve Body Materials
Common options:
Aluminum alloy
Stainless steel
Engineering plastics
Seal Materials
Popular choices:
NBR (Nitrile Rubber)
Suitable for:
General industrial applications
Standard temperatures
FKM (Viton)
Suitable for:
High temperatures
Chemical resistance
EPDM
Suitable for:
Water applications
Steam environments
Material compatibility extends service life and reduces failures.
9. Check Environmental Protection Ratings
Industrial environments can be harsh.
Look for suitable protection levels.
Common ratings include:
IP65
Protection against:
Dust
Water jets
IP67
Protection against:
Temporary immersion
Harsh industrial environments
Additional features may include:
Explosion-proof designs
Corrosion-resistant coatings
High-temperature resistance
10. Ensure Compatibility with Automation Systems
Modern factories increasingly adopt Industry 4.0 technologies.
Choose electro-pneumatic valves compatible with:
PLC systems
Industrial Ethernet
Fieldbus communication
Remote monitoring systems
IoT platforms
Smart valves provide:
Predictive maintenance
Diagnostic feedback
Real-time monitoring
Improved operational visibility
Automotive Manufacturing
Applications:
Welding robots
Assembly lines
Paint systems
Food and Beverage
Applications:
Filling machines
Packaging equipment
Conveyor systems
Pharmaceutical Industry
Applications:
Tablet production
Sterile packaging
Automated dispensing
Electronics Manufacturing
Applications:
Pick-and-place machines
Semiconductor equipment
General Industrial Automation
Applications:
Material handling
CNC equipment
Textile machinery
Avoid these purchasing errors:
Selecting Based on Price Alone
Cheaper valves may result in:
Shorter lifespan
Frequent failures
Higher maintenance costs
Ignoring Flow Requirements
Insufficient airflow reduces system performance.
Overlooking Environmental Conditions
Harsh environments require specialized designs.
Mismatching Electrical Specifications
Incorrect voltage can damage the valve coil.
Neglecting Future Expansion
Choose scalable solutions that accommodate future automation upgrades.
Choosing the right Electro-Pneumatic Valve for industrial automation is essential for maximizing system efficiency, reliability, and productivity.
Instead of focusing solely on price, buyers should carefully evaluate application requirements, airflow capacity, pressure ratings, electrical compatibility, environmental conditions, and integration capabilities.
As smart factories continue to evolve, investing in high-quality electro-pneumatic valves not only improves current operations but also prepares manufacturing systems for future Industry 4.0 developments.
By selecting the proper valve, businesses can reduce downtime, lower operating costs, and achieve long-term automation success.
