Automated irrigation systems depend on several components working together to distribute water at the right time and in the right quantity. Among these components, the irrigation valve solenoid coil plays an essential role in controlling water flow.
Although it is usually a small component, the solenoid coil directly affects how quickly, accurately, and reliably an irrigation valve opens and closes. A poorly matched or damaged coil may cause delayed valve response, continuous water flow, overheating, or complete irrigation system failure.
For irrigation equipment manufacturers, agricultural system integrators, distributors, and maintenance professionals, understanding how an irrigation valve solenoid coil works is important when selecting components, diagnosing valve problems, or developing customized irrigation products.
An irrigation valve solenoid coil is an electromagnetic component installed on an electrically operated irrigation valve. Its main purpose is to convert electrical energy into magnetic force.
When the irrigation controller sends power to the coil, the energized winding creates a magnetic field. This magnetic field moves an internal plunger or armature, which changes the hydraulic pressure inside the valve and allows the valve to open or close.
The solenoid assembly usually includes:
An electromagnetic coil
A metal plunger or armature
A guide tube
A spring
Electrical wires or terminals
An insulated or encapsulated coil housing
The coil itself does not directly regulate water pressure. Instead, it provides the electromagnetic force required to activate the internal valve mechanism.
The operation of an irrigation solenoid coil can be divided into several stages.
An irrigation controller, timer, relay, or smart control unit sends voltage to the solenoid coil according to a programmed watering schedule.
The signal may also come from a soil moisture sensor, weather-based controller, remote platform, or central irrigation management system.
Electrical current passes through the copper winding inside the coil. This produces an electromagnetic field around the coil.
The strength of the magnetic field depends on several factors, including:
Input voltage
Coil resistance
Number of winding turns
Wire diameter
Coil dimensions
Magnetic core design
Temperature conditions
The magnetic field attracts or moves the internal plunger. This movement opens or closes a small pilot passage inside the irrigation valve.
In many diaphragm irrigation valves, the solenoid does not directly lift the main valve opening. Instead, it changes the pressure balance above and below the diaphragm.
Once the pressure balance changes, the diaphragm moves and allows water to flow through the valve.
When the electrical signal stops, the magnetic field disappears. The spring and hydraulic pressure return the plunger and diaphragm to their original positions, closing the valve.
This process allows irrigation systems to control individual watering zones automatically.
The solenoid coil acts as the electrical control interface between the irrigation controller and the water valve.
Its performance affects several important aspects of the irrigation system.
A responsive coil allows the valve to open and close according to the programmed irrigation schedule. This helps ensure that different irrigation zones receive water at the correct time.
Without solenoid-controlled valves, operators may need to open and close irrigation valves manually. Automated control reduces labor requirements and makes it easier to manage large irrigation areas.
A properly functioning valve coil helps prevent valves from remaining open after irrigation should have stopped. This can reduce unnecessary water use and limit flooding or overwatering.
Large irrigation systems often divide farmland, gardens, parks, or sports fields into multiple watering zones. Solenoid valves allow the controller to switch between these zones efficiently.
Modern irrigation systems may use soil sensors, weather data, timers, and remote control platforms. Solenoid-operated valves make it possible to convert these digital control signals into physical water flow control.
Different irrigation systems require different coil designs. The main categories are usually determined by electrical supply, operating method, installation structure, and environmental protection.
Alternating current solenoid coils are widely used in fixed irrigation systems connected to a conventional controller and power supply.
They are commonly selected for:
Residential lawn irrigation
Commercial landscaping
Municipal green areas
Parks
Golf courses
Sports field irrigation
AC coils are designed specifically for alternating current operation. Their internal construction and electrical characteristics should match the required voltage and frequency.
An AC coil should not be replaced with a DC coil unless the valve and controller have been designed for that conversion.
Direct current solenoid coils are used in systems powered by batteries, solar panels, DC controllers, or industrial control equipment.
They may be suitable for:
Remote agricultural fields
Battery-powered irrigation controllers
Solar irrigation systems
Greenhouses
Mobile irrigation equipment
Off-grid watering systems
DC coils require the correct voltage and polarity where applicable. The coil resistance and power consumption must also be compatible with the controller output.
A latching solenoid is designed to change position using a short electrical pulse rather than requiring continuous power throughout the watering cycle.
This makes it useful for battery-operated irrigation systems where minimizing power consumption is important.
A latching solenoid normally receives one pulse to open the valve and another pulse with reversed polarity or a different control sequence to close it.
Because the operating principle differs from a conventional continuously energized coil, the irrigation controller must support latching solenoid operation.
A non-latching coil usually requires electrical power to remain energized while the valve is open.
When power is removed, the valve returns to its normal position.
These coils are common in standard automated irrigation systems because they are relatively simple to control. However, the power supply must be capable of supporting the coil during the complete irrigation cycle.
Irrigation valve solenoid coils are used in many water control applications.
In farms and orchards, solenoid-controlled valves can manage water distribution between different crop zones.
They may be integrated into:
Drip irrigation systems
Sprinkler irrigation systems
Fertigation systems
Orchard watering networks
Greenhouse irrigation lines
Field irrigation pipelines
Automated valve control allows farmers to irrigate different crops according to their watering requirements.
Home irrigation systems frequently use several underground valves connected to one central controller.
Each solenoid valve controls a separate zone, such as:
Front lawn
Backyard
Flower beds
Trees and shrubs
Drip irrigation areas
The controller activates one valve at a time based on the programmed schedule.
Hotels, office complexes, shopping centers, public gardens, and residential communities often require multi-zone irrigation systems.
Reliable solenoid coils help these systems operate without frequent manual intervention.
Plants grown in controlled environments often require accurate watering frequency and duration.
Solenoid valves can be connected to timers, humidity sensors, soil moisture sensors, or greenhouse management systems to provide more consistent irrigation.
Large grass areas require coordinated irrigation across many zones. Solenoid coils support automatic valve operation throughout the irrigation network.
Because these systems may involve frequent switching and demanding outdoor conditions, coil durability and environmental protection are important.
Smart irrigation platforms can adjust watering schedules according to environmental conditions.
The solenoid coil acts as the final control component that opens or closes the valve after receiving instructions from the controller.
The quality and compatibility of the coil can significantly influence valve performance.
A properly designed coil produces sufficient magnetic force to move the plunger consistently. This reduces the risk of incomplete opening, delayed response, or failure to close.
An efficient winding design can provide the required magnetic force without excessive electrical consumption.
Low-power designs are particularly valuable in solar-powered, battery-powered, and remote irrigation systems.
Consistent winding resistance, suitable insulation, and reliable encapsulation help the coil maintain stable performance during repeated switching cycles.
A correctly matched coil can activate the valve quickly after receiving a control signal. Fast response helps irrigation zones start and stop according to the controller schedule.
High-quality winding wire, insulation materials, connectors, and protective housings can improve resistance to heat, moisture, vibration, and frequent operation.
For irrigation equipment manufacturers, solenoid coils can be customized according to valve dimensions, voltage, power, connector type, installation method, and environmental requirements.
Choosing a replacement or custom coil requires more than matching the external appearance. Several electrical and mechanical specifications should be confirmed.
The coil voltage must match the output voltage of the irrigation controller.
Using a coil with an incorrect voltage can cause problems such as:
Weak magnetic force
Failure to open the valve
Excessive current
Overheating
Damaged windings
Reduced service life
The rated voltage should always be checked on the valve label, coil marking, controller manual, or technical drawing.
An AC coil and a DC coil are not automatically interchangeable.
Buyers should confirm:
Power supply type
Rated voltage
Operating frequency for AC coils
Polarity requirements for DC coils
Controller output method
Whether the coil is latching or non-latching
Coil resistance affects current consumption and heat generation.
If the resistance is too low for the power supply, the coil may draw excessive current and overheat. If it is too high, the magnetic force may be insufficient to operate the valve.
For replacement projects, resistance can be compared with the original working coil. For new valve development, resistance and power should be determined according to the required magnetic force and controller capacity.
Important dimensions may include:
Inner diameter
Outer diameter
Overall height
Mounting position
Guide tube diameter
Terminal direction
Available installation space
Even when two coils have the same voltage, they may not be mechanically compatible.
Irrigation coils may use:
Lead wires
Blade terminals
Plug connectors
Molded connectors
Waterproof connectors
Customized cable assemblies
The connection method should match the valve assembly, installation process, and outdoor protection requirements.
Irrigation valves are often installed outdoors, underground, inside valve boxes, or near wet pipelines.
The coil may need protection against:
Moisture
Rainwater
Condensation
Soil contamination
Fertilizer exposure
Temperature changes
Ultraviolet exposure
Mechanical impact
Encapsulated or molded coil structures can provide improved environmental protection when properly designed.
Some irrigation systems operate only for short periods, while others keep valves open for extended irrigation cycles.
The coil should be suitable for the expected operating duration and switching frequency.
A coil that is not designed for continuous energization may overheat when left powered for a long time.
When an irrigation valve does not operate correctly, the coil is one possible cause. However, the controller, wiring, plunger, diaphragm, water pressure, and valve passages should also be inspected.
Possible causes include:
No electrical signal from the controller
Broken wire
Loose electrical connection
Burned coil winding
Incorrect voltage
Insufficient magnetic force
Stuck plunger
Blocked pilot passage
Low water pressure
A multimeter can be used to check voltage at the valve and resistance across the coil.
A valve that remains open may be caused by:
Continuous voltage from the controller
Mechanical blockage
Damaged diaphragm
Dirt inside the valve
Incorrectly installed solenoid
Stuck plunger
Manual bleed control left open
The electrical supply should be disconnected to determine whether the problem is electrical or hydraulic.
Some temperature rise is normal when a coil is energized. However, excessive heat may indicate:
Overvoltage
Incorrect AC or DC coil
Low coil resistance
Continuous operation beyond the rated duty
Damaged winding insulation
Poor heat dissipation
Mechanical obstruction preventing normal actuation
A coil that smells burned, shows melted insulation, or repeatedly trips the controller should be replaced after the cause has been identified.
Buzzing may occur in AC-operated solenoids, but excessive noise can indicate:
Low voltage
Loose coil installation
Worn or contaminated plunger
Damaged shading ring
Incorrect coil
Unstable power supply
The voltage should be measured while the coil is energized, because a weak power supply may appear normal when there is no load.
Intermittent operation may result from:
Damaged underground wiring
Corroded connectors
Moisture inside electrical connections
Temperature-related coil failure
Loose terminals
Unstable controller output
Plunger contamination
Outdoor electrical connections should be properly sealed to reduce moisture-related problems.
Before testing, power should be disconnected and the irrigation controller should be operated according to the equipment safety instructions.
Check for:
Cracked housing
Burn marks
Melted plastic
Damaged wires
Corroded terminals
Loose connectors
Water entry
Visible damage often indicates that replacement is required.
A multimeter can be used to measure resistance across the coil terminals.
An open circuit may indicate a broken winding. An unusually low resistance may suggest an internal short circuit.
The measured value should be compared with the manufacturer specification or an identical working coil.
The controller should supply the correct voltage when the irrigation zone is activated.
If no voltage reaches the valve, the problem may be related to the controller, wiring, fuse, transformer, or connection rather than the coil.
Where safe and permitted, the solenoid can be activated to determine whether the plunger moves and the valve responds.
Electrical testing alone may not identify mechanical problems inside the valve.
Solenoid coils usually require limited maintenance, but the complete valve assembly should be inspected periodically.
Useful maintenance practices include:
Keep valve boxes clean and properly drained.
Protect wire connections from moisture.
Inspect cables for damage caused by tools, animals, or soil movement.
Remove dirt from the solenoid plunger and pilot passages.
Confirm that the coil is firmly installed.
Avoid using an incorrect voltage during testing.
Replace damaged connectors and insulation.
Check valve operation before the irrigation season.
Use compatible replacement parts.
Record coil and valve specifications for future maintenance.
Preventive inspection can help identify small wiring or contamination problems before they interrupt the irrigation schedule.
Standard replacement coils may be suitable for maintenance applications, but irrigation valve manufacturers often require customized coil solutions.
Custom development may include:
AC or DC winding design
Latching solenoid design
Customized voltage
Specific resistance or power consumption
Custom coil dimensions
Different lead wire lengths
Waterproof connectors
Molded coil housings
Insulation class selection
Customized labels and packaging
Matching with new valve structures
To develop an appropriate coil, manufacturers normally need detailed application information.
Useful technical information includes:
Valve drawing
Existing coil sample
Rated voltage
AC or DC power
Required magnetic force
Plunger travel
Coil installation dimensions
Operating temperature
Duty cycle
Connector requirements
Environmental conditions
Estimated order quantity
Prototype testing should be completed with the actual valve before mass production.
It converts an electrical signal into electromagnetic force, moving the valve plunger and allowing the irrigation valve to open or close.
In some valve designs, the coil or complete solenoid assembly can be replaced separately. Compatibility must be confirmed based on voltage, dimensions, plunger structure, thread, and electrical connection.
No. Coils may differ in voltage, AC or DC operation, resistance, power, dimensions, connector type, and operating method.
Common causes include overvoltage, incorrect power type, damaged insulation, water entry, excessive operating temperature, mechanical obstruction, and unsuitable duty cycle.
It should not be used unless the system has been specifically redesigned for that purpose. AC and DC coils have different electrical characteristics.
A latching solenoid changes valve position using a short electrical pulse and does not require continuous power to hold the valve open. It is commonly used in battery-powered irrigation systems.
It depends on the installation environment. Because irrigation valves are frequently exposed to moisture, rain, condensation, or underground conditions, suitable sealing and moisture protection are important.
Buyers should provide the voltage, AC or DC type, dimensions, resistance or power requirements, connector type, valve structure, working environment, duty cycle, and expected quantity.

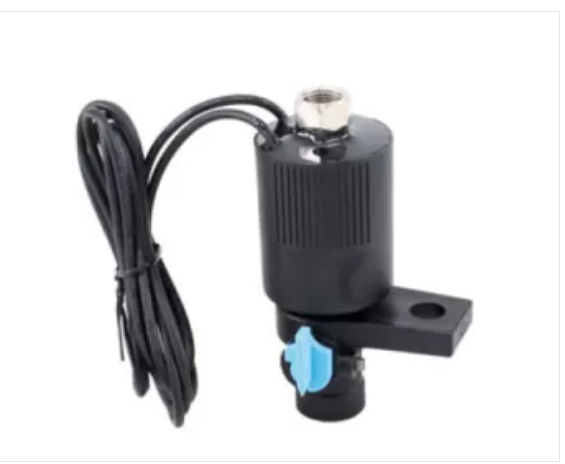

The irrigation valve solenoid coil is a critical component in automated water control systems. It connects the irrigation controller with the mechanical valve, allowing water flow to be managed accurately across farms, greenhouses, gardens, parks, sports fields, and commercial landscapes.
Selecting the right coil requires careful evaluation of voltage, AC or DC operation, resistance, dimensions, connector type, duty cycle, environmental protection, and compatibility with the valve mechanism.
A properly matched coil can provide stable valve operation, fast response, low energy consumption, and a longer working life. For irrigation equipment manufacturers, customized solenoid coil development can also improve valve performance and support the design of more efficient automated irrigation products.
