2/2 way solenoid valves are among the most fundamental and widely used components in fluid control systems. They are designed with two ports and two states (open and closed), making them ideal for simple on/off control of liquids, gases, steam, and other media in industrial automation systems.
When sourcing these valves from manufacturers, the selection process goes far beyond price. Performance reliability, material compatibility, certifications, and manufacturing capability all directly impact long-term system stability and operating cost.

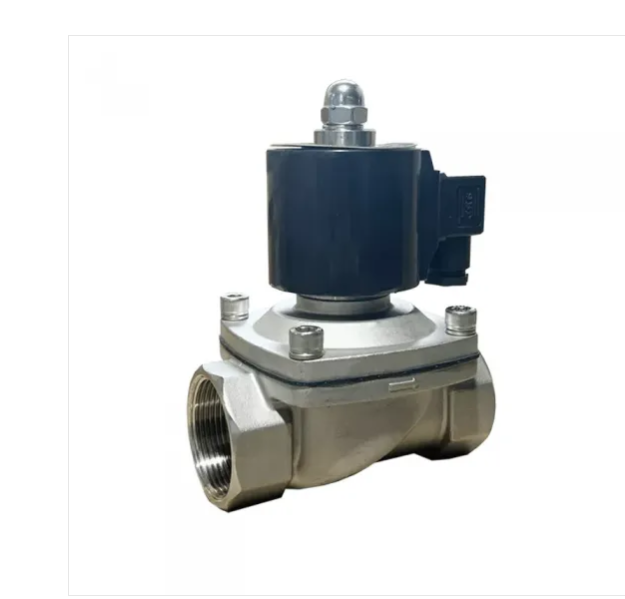

A 2/2 way solenoid valve has two ports and two switching states: open and closed. It operates using an electromagnetic coil that moves a plunger or diaphragm to control fluid flow.
In simple terms, it functions as an automatic on/off switch for pipelines. When energized, the valve opens or closes depending on whether it is normally closed (NC) or normally open (NO).
Because of its simple structure and reliable operation, it is widely used in industrial fluid control systems.
Before evaluating manufacturers, the most important step is defining your application requirements clearly.
Different systems require different valve characteristics. For example, water treatment systems prioritize corrosion resistance, while pneumatic systems focus on fast response time. In chemical environments, material compatibility becomes critical to prevent degradation or leakage.
Pressure range, temperature conditions, and media type (air, water, oil, steam, or corrosive fluids) must all be clearly defined before sourcing.
Material selection directly determines valve lifespan and safety.
Common body materials include brass, stainless steel, and engineering plastics. Brass is widely used for general water and air systems due to its cost-effectiveness and good corrosion resistance. Stainless steel is preferred in high-pressure or corrosive environments. Plastic bodies are used in lightweight or chemically sensitive applications.
Sealing materials are equally important. NBR, EPDM, and Viton are commonly used depending on temperature range and chemical exposure.
Incorrect material selection is one of the most common causes of valve failure in industrial systems.
Each 2/2 way solenoid valve is designed for a specific operating envelope.
Manufacturers should provide clear data on minimum and maximum operating pressure, temperature range, and flow coefficient (Cv value). These parameters determine whether the valve can maintain stable performance under real working conditions.
In high-temperature or high-pressure systems, derating factors must also be considered to ensure safe operation over time.
Solenoid coils are the driving force of the valve, and their specifications significantly affect performance and energy efficiency.
Key parameters include:
Voltage options (AC or DC)
Power consumption
Insulation class
Coil protection rating (IP rating)
Duty cycle (continuous or intermittent operation)
In industrial environments, coil overheating or voltage mismatch can lead to premature failure. Reliable manufacturers will offer stable coil designs with proper thermal management.
Response time is critical in automation systems where fast and accurate control is required.
High-quality 2/2 way solenoid valves should offer consistent switching speed without lag or instability. In high-cycle applications, such as packaging machines or automated production lines, switching frequency becomes a key performance indicator.
Manufacturers should provide validated cycle life data under real operating conditions.
Leakage control is one of the most important quality indicators for solenoid valves.
Even minor internal leakage can lead to pressure loss, system inefficiency, or contamination. High-quality valves are tested for zero or minimal leakage under rated pressure.
Seal design, machining accuracy, and material quality all influence long-term sealing performance.
Depending on the target market, solenoid valves may need to meet specific certifications such as CE, RoHS, UL, or ISO standards.
These certifications indicate compliance with safety, environmental, and performance requirements.
For industrial buyers, certification is not just a regulatory requirement but also a quality assurance indicator of manufacturing consistency.
Choosing the right manufacturer is as important as choosing the product itself.
A reliable supplier should have:
Stable production capacity
CNC precision machining capability
Automated assembly lines
In-house testing systems (pressure, leakage, electrical testing)
Quality traceability systems
Manufacturers with strong engineering support can also provide customization for special media, pressure ranges, or installation requirements.
High-quality solenoid valves undergo multiple testing stages before shipment.
Common tests include pressure resistance testing, leakage testing, coil performance testing, and endurance cycling tests. These ensure the valve performs consistently under long-term operation.
Manufacturers with rigorous testing systems are more likely to deliver stable and reliable products.
While often overlooked, packaging and logistics play a role in product reliability.
Proper packaging prevents damage during transportation, especially for precision-machined valve components.
After-sales support is equally important. Technical documentation, installation guidance, and responsive support can significantly reduce system downtime and integration issues.
While unit price is important, focusing only on cost can lead to higher long-term expenses.
Low-cost valves may have shorter lifespan, higher leakage rates, or inconsistent performance, leading to system failures or maintenance costs.
High-quality valves from reliable manufacturers typically offer better lifecycle value, reduced downtime, and improved system efficiency.
Sourcing 2/2 way solenoid valves from manufacturers requires a comprehensive evaluation beyond simple pricing. Material compatibility, performance parameters, electrical stability, and manufacturing quality all directly impact system reliability.
A well-chosen valve ensures stable operation, reduced maintenance, and long-term efficiency in industrial automation systems. Working with capable manufacturers that provide strong engineering support and strict quality control is the key to achieving consistent performance in real-world applications.
