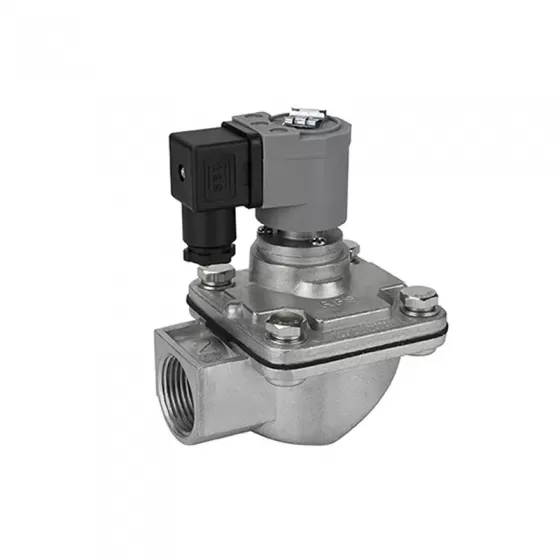

Pulse jet solenoid valves are electromagnetic devices designed to release quick bursts of air, which clean filters in industrial dust collection systems. They typically include a valve body, diaphragm, and solenoid coil. Positioned after the filter, these valves reverse airflow to remove accumulated particles, enhancing both system efficiency and the lifespan of filter media.
Pulse valves are composed of several critical components, each contributing to efficient operation and precise air pulse management:
Body: The main housing that contains all internal components of the pulse valve. Commonly made of durable materials such as aluminum or stainless steel, it ensures structural integrity.
Diaphragm: A flexible membrane that separates the air supply from the outlet. It moves up and down to open or close the valve, responding to pressure changes.
Solenoid Coil: An electromagnetic coil that actuates the diaphragm, opening or closing the valve when energized.
Pilot Valve: A smaller valve that controls airflow to the diaphragm, supporting its rapid movement.
Spring: Returns the diaphragm to its resting position when the solenoid coil is de-energized.
Orifice: The passage through which air is released. Its dimensions influence both flow rate and pulse pressure.
Ports: Inlet and outlet connections that provide air to the valve and direct the cleaning pulse to the filters.
Pulse jet valves operate as indirect-acting solenoid valves. Their mechanism ensures efficient filter cleaning through controlled bursts of air:
Solenoid Energization: The valve operation begins when the solenoid is energized. This causes air above the diaphragm to be rapidly expelled.
Diaphragm Opening: The sudden release of trapped air creates a pressure differential across the diaphragm. This forces the diaphragm to move quickly, opening the valve and allowing the air pulse to clean the filter.
Solenoid De-energization: After a brief period, the solenoid is de-energized. Air re-enters the chamber above the diaphragm through a small hole, equalizing pressure on both sides.
Valve Closure: Once the pressure is balanced, the diaphragm returns to its initial position, instantly closing the valve. Rapid closure minimizes compressed air loss while maintaining a powerful, short cleaning pulse.
Rapid Actuation: Effective filter cleaning and energy efficiency depend on quick valve movement. The diaphragm and other moving components are designed to be lightweight, reducing inertia and enabling fast actuation.
Achieving Maximum Flow Rate: Valves are engineered to reach maximum flow when air velocity through them reaches sonic speed (344 m/s), ensuring optimal cleaning performance.
High Kv Values: Pulse valves are designed to handle high flow rates, indicated by elevated Kv values. This enhances cleaning efficiency while conserving compressed air, making operation more economical.
Dust collection systems rely on pulse jet solenoid valves to maintain clean air and ensure operational efficiency. These valves are used in a variety of industrial contexts:
Dust Collector Overview
Dust collectors remove or capture solid pollutants from exhaust gases. They generally include a blower, dust filter, filter cleaning mechanism, and dust removal system. Fabric collectors, also called baghouses, are common: dust accumulates on fabric bags, which are then cleaned using high-pressure air blasts. Pulse jet solenoid valves control these air pulses, dislodging dust while allowing continuous operation without interrupting gas flow.
Pneumatic Conveying Systems: Pulse valves generate controlled air shocks to move materials efficiently through pipelines.
Air Filtration Systems: They remove accumulated dust and debris, maintaining high air quality.
Powder Coating Processes: Valves release powder in precise bursts for uniform surface coverage.
Grain and Feed Processing: They help clean filters, preventing blockages and maintaining airflow.
Cement Production: Pulse valves clear dust from filters, ensuring uninterrupted machinery operation.
Foundry Operations: They remove particulates from air filtration systems to maintain safe and clean environments.
Pharmaceutical Manufacturing: Valves guarantee clean air filtration, critical for sterile production environments.
Chemical Processing: Pulse valves prevent accumulation of hazardous dust in filters, enhancing safety.
Woodworking Facilities: They protect machinery and workers by maintaining clear air filtration.
Metalworking and Machining: Pulse valves remove metal particles from filters, preventing equipment damage and health hazards.
Choosing the right pulse jet valve requires consideration of several factors:
Tank Volume: The air volume in the supply tank determines the appropriate valve size. Larger tanks require valves capable of handling higher air volumes.
Tank Pressure: Refers to the inlet pressure supplied to the valve, crucial for matching valve performance to system requirements.
Maximum Allowable Pressure: The highest pressure the valve can safely withstand, ensuring operational safety.
Electrical Pulse Length: Duration of solenoid energization; shorter pulses save energy, while longer pulses may improve cleaning efficiency.
Total Pulse Length: The interval from valve opening to closing, affecting cleaning effectiveness depending on system needs.
Peak Pressure: Maximum pressure during a pulse, generating the shock wave that dislodges particulates.
Pressure Drop in Tank: Should ideally not exceed 50% of absolute tank pressure to maintain sonic flow and optimal efficiency.
Performance Ratio: The ratio of tank pressure to peak pressure, influenced by valve Kv and opening time. A higher ratio indicates better performance.
Volume per Pulse: Air volume per pulse affects the cleaning efficiency of filters; adequate volume ensures thorough particulate removal.
Material of Construction: Body and seal materials must match the media. Common options include aluminum, stainless steel, and nitrile seals, chosen for durability and chemical compatibility.
