The Basics of a Directional Control Valve

Directional Control Valves (DCVs) serve as the cornerstone of hydraulic systems, wielding the authority to regulate the flow of fluid and accurately channel it to specific destinations. This comprehensive guide endeavors to delve into the essential elements, operational principles, and applications of these pivotal valves, empowering industries to leverage the potential of fluid power.



What is a Directional Control Valve?


A directional control valve functions as a mechanical apparatus governing the direction of fluid movement within hydraulic systems. These valves operate as gatekeepers, determining the path through which pressurized fluid reaches actuators or hydraulic cylinders and controlling its direction. The significance of directional control valves lies in their capacity to precisely and effectively manage hydraulic systems. By managing fluid flow, these valves enable machinery to perform diverse tasks with precision, whether facilitating the smooth motion of heavy construction equipment or managing the intricate operations of aerospace systems. Ensuring the proper functioning of DCVs is critical for optimizing performance, minimizing energy consumption, and upholding safety standards in hydraulic applications.



The origins of directional control valve technology can be traced back to ancient civilizations that utilized water's power to operate watermills and irrigation systems. However, significant advancements in hydraulics and control systems during the 20th century fueled the development of modern DCVs. The integration of hydraulic machinery across various industries like manufacturing, construction, and transportation drove the need for more sophisticated and precise control over fluid flow, resulting in the evolution of today's highly efficient directional control valves.

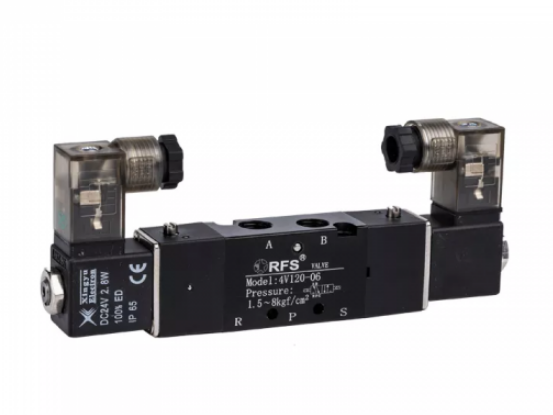

Directional Control Valves

Types of Directional Control Valves



Spool Valves



Spool valves represent one of the most prevalent types of DCVs, characterized by a cylindrical spool that moves within a valve body. The spool's position determines the path of fluid and, consequently, the direction of fluid flow. Various configurations of spool valves include:



2-Way Valves: Managing flow on/off in one direction.

3-Way Valves: Diverting flow between two distinct paths.

4-Way Valves: Directing flow between two actuators or cylinders.

5-Way Valves: Merging features of 4-way valves with an exhaust port.



Poppet Valves



Poppet valves employ a disc or cone-shaped poppet to regulate fluid flow. They can be either direct-acting or pilot-operated, depending on the method of actuation. Poppet valves offer advantages in high-pressure applications and demonstrate minimal leakage, rendering them suitable for critical systems.



Direct-Acting Poppet Valves: Operated directly by external forces without additional pilot pressure.

Pilot-operated Poppet Valves: Controlled by pilot pressure, providing enhanced control and versatility.



Rotary Valves



Rotary valves utilize rotational motion to manage fluid flow, typically accomplished through a rotating spool or cylinder. They deliver precise control over flow paths and are commonly employed in specialized applications.



Sliding Cylinder Valves: Employ a sliding cylinder to control fluid flow direction.

Rotary Spool Valves: Utilize a rotary spool to govern fluid pathways.



Working Principles of a Directional Control Valve



Valve Actuation Methods



A directional control valve can be activated using various methods, each offering distinct advantages for specific applications:



Manual Actuation: Utilizes manual levers or knobs, enabling direct control of valve positions by operators, ensuring simplicity and reliability.

Solenoid Actuation: Employs electromagnetic solenoids for remote manipulation of valve positions, making them well-suited for automated systems.

Hydraulic Actuation: Utilizes hydraulic pressure to manage the valve position, providing precise and smooth control.



Valve Positions and Symbols



Directional Control Valves are symbolically represented in hydraulic diagrams, using specific symbols to signify different valve positions. The primary valve positions include:



Open Center: In the neutral position, fluid returns to the reservoir.

Closed Center: Blocks flow in the neutral position, preventing fluid circulation.

Tandem Center: Directs fluid to both actuators and the reservoir when in the neutral position.

Float Center: Allows the actuator to follow external forces or loads in the neutral position.

Regenerative Center: Permits fluid flow from the outlet back to the inlet in the neutral position, boosting speed and reducing energy consumption.



Understanding Valve Configurations and Circuit Design



Single Solenoid vs. Double Solenoid Valves:



Directional Control Valves can be categorized as single solenoid or double solenoid, based on the number of solenoids utilized to regulate their positions. Single solenoid valves operate with one solenoid for actuation, while double solenoid valves employ two solenoids—one for each direction.



Series Circuit Design:



In series circuit setups, multiple directional control valves are linked sequentially to manage fluid flow incrementally, enabling precise control over actuator movements.



Parallel Circuit Design:



Parallel circuit configurations involve multiple directional control valves arranged side by side, allowing simultaneous control over multiple actuators, thereby enhancing system efficiency.



Combination Circuit Design:



Combination circuit designs merge series and parallel configurations, delivering versatility and flexibility in controlling fluid flow for intricate applications.



Factors to Consider When Choosing a Directional Control Valve



Several factors should be considered when selecting the appropriate directional control valve for a particular application:



Flow Rate and Pressure Rating: Ensure that the valve can manage the necessary flow rates and pressures within the hydraulic system effectively.



Environmental Conditions: Take into account environmental elements like temperature, humidity, and exposure to corrosive substances that might impact the valve's performance.



Actuation Speed and Response Time: Opt for a valve with a quick actuation speed and rapid response time to enable precise control in operations.



Mounting and Installation Considerations: Consider the valve's size, available mounting options, and installation requirements to ensure compatibility with the available space and system configuration.



Applications of Directional Control Valves in Various Industries



Directional Control Valves serve diverse purposes across a wide array of industries, facilitating crucial processes and operations:



Industrial Automation: In the realm of industrial automation, DCVs govern the movement of robotic arms, conveyor belts, and other automated equipment, enabling efficient production and assembly processes.



Construction and Heavy Machinery: These valves play a pivotal role in heavy machinery like excavators and loaders, providing precise control over hydraulic cylinders for tasks such as digging, lifting, and maneuvering.



Agricultural Equipment: Within agricultural machinery, DCVs regulate the movement of tractor attachments, ensuring precision in plowing, harvesting, and other essential farming operations.
