Chemical processing plants handle a wide range of liquids and gases under demanding operating conditions. Acids, alkalis, solvents, corrosive chemicals, steam, process gases, and hazardous media must be transferred and controlled accurately while maintaining plant safety and production stability.
An electro-pneumatic valve combines electrical control with pneumatic actuation, allowing process valves to respond automatically to signals from PLC, DCS, sensors, and safety systems.
From simple pipeline isolation to precise flow regulation and emergency shutdown, electro-pneumatic valves play an important role in modern chemical processing automation.
An electro-pneumatic valve system normally combines:
Process valve body
Pneumatic actuator
Solenoid valve
Electro-pneumatic positioner when modulation is required
Limit switches or position sensors
Air filter regulator
PLC or DCS control interface
An electrical signal controls the pneumatic circuit, which then moves the valve actuator.
Depending on the configuration, the valve may provide:
ON/OFF isolation
Flow regulation
Pressure control
Tank switching
Emergency shutdown
Automated process sequencing
This combination gives chemical plants the speed and power of pneumatic actuation together with the flexibility of electronic process control.
Chemical plants contain hundreds or even thousands of valves. Manual operation becomes inefficient and potentially unsafe as process complexity increases.
Electro-pneumatic valve automation provides several important advantages.
Operators do not need to manually operate valves located near hazardous chemicals, high-temperature pipelines, elevated platforms, or restricted process areas.
Instead, valves can be controlled from:
Central control rooms
PLC systems
DCS platforms
Local control panels
Automated skid systems
Remote operation reduces manual intervention while improving overall process coordination.
Pneumatic actuators can open or close valves quickly.
Fast response is particularly valuable during:
Emergency isolation
Batch switching
Reactor charging
Chemical dosing
Tank transfer
Utility switching
Pressure protection sequences
Where a process condition changes rapidly, valve response time can directly affect plant safety and production stability.
Chemical processing involves many repetitive operations.
An automated production sequence may include:
Raw Material Feeding → Mixing → Heating → Reaction → Transfer → Separation → Cleaning
Electro-pneumatic valves allow each stage to be automatically coordinated with:
Pumps
Flowmeters
Pressure transmitters
Temperature sensors
Reactors
Storage tanks
Process analyzers
This improves repeatability and reduces the possibility of incorrect manual valve operation.
The correct valve type depends on the medium, pressure, temperature, flow characteristics, and required control function.
Pneumatic ball valves are widely used for chemical isolation because they provide quick operation and strong shut-off performance.
Typical applications include:
Solvent transfer
Chemical feed lines
Process water
Acid and alkali pipelines
Storage tanks
Utility systems
Full-port ball valves can provide low flow resistance, making them useful where pressure loss needs to be minimized.
Depending on chemical compatibility requirements, materials may include stainless steel, carbon steel, alloy materials, or lined constructions.
Butterfly valves offer compact construction and relatively low actuator torque.
They are commonly used in larger-diameter pipelines for:
Cooling water
Process water
Air
Gas
Low-viscosity chemicals
Utility services
Different seat and lining materials can be selected according to corrosion, temperature, and chemical resistance requirements.
Diaphragm valves separate the operating mechanism from the process fluid.
This makes them useful for applications involving:
Corrosive chemicals
High-purity chemicals
Slurries
Aggressive fluids
Contamination-sensitive processes
Lined diaphragm valves are particularly useful where conventional metallic valve surfaces may not provide sufficient corrosion resistance.
Globe-style control valves are commonly used when precise modulation is more important than simple ON/OFF operation.
Typical control functions include:
Chemical dosing
Steam regulation
Reactor temperature control
Pressure control
Cooling-water regulation
Gas flow control
When fitted with an electro-pneumatic positioner, the actuator can adjust valve position continuously according to the control signal.
Highly corrosive chemical media may require specially lined valves.
Depending on the service, lining materials can help isolate the metal body from aggressive process fluids.
Typical applications may involve:
Hydrochloric acid
Sulfuric acid
Chlorinated chemicals
Aggressive solvents
Strong alkaline solutions
Actual valve and lining selection must always be based on concentration, temperature, pressure, and chemical compatibility.
For many chemical processes, simply opening or closing a valve is not enough.
The process may require continuous adjustment.
An electro-pneumatic positioner receives an electrical control signal, commonly from a PLC or DCS, and adjusts pneumatic pressure to move the actuator to the required position.
This allows the control valve to operate at positions such as:
20% open
45% open
70% open
Fully open
The position can change continuously as process conditions change.
Electro-pneumatic control valves can regulate:
Maintain a required chemical or process-fluid flow rate.
Adjust valve opening according to upstream or downstream pipeline pressure.
Control steam, thermal oil, cooling water, or another heat-transfer medium.
Increase or reduce feed flow to maintain the required vessel level.
Regulate reagent addition according to process demand.
This closed-loop control is fundamental to modern chemical process automation.
Reactors are one of the most demanding areas of a chemical processing plant.
Automated valves may control:
Raw material inlet
Catalyst dosing
Steam supply
Cooling water
Nitrogen blanketing
Vent lines
Reactor discharge
For example, the control system may automatically reduce steam flow when reactor temperature rises beyond the target range.
At the same time, another electro-pneumatic valve may increase cooling-water flow.
This coordinated valve control helps maintain stable reaction conditions.
Many chemical production processes require accurate addition of reagents or additives.
Examples include:
Acids
Alkalis
Catalysts
Inhibitors
Neutralizing agents
Process additives
Electro-pneumatic control valves can work together with flowmeters and process controllers to regulate dosing rates.
Instead of manually adjusting a valve, the control system can automatically change valve position according to real-time process demand.
This improves batch consistency and reduces unnecessary chemical consumption.
Chemical plants often contain multiple storage tanks connected through common transfer manifolds.
Electro-pneumatic valves allow automatic routing between:
Storage tanks
Reactors
Mixing vessels
Loading stations
Unloading systems
Process units
For example:
Tank A → Reactor 1
can automatically change to:
Tank B → Reactor 1
according to the production recipe.
Position feedback can confirm that the correct valve route has been established before the pump starts.
This helps prevent cross-contamination and incorrect chemical transfer.
One of the most important roles of pneumatic valve systems in chemical plants is emergency isolation.
Unexpected conditions may include:
Excessive pressure
High temperature
Gas leakage
Pump failure
Fire alarm
Loss of electrical power
Instrument system fault
A spring-return pneumatic actuator can move the valve automatically to a predetermined safe position.
The valve closes when the control signal or air pressure is lost.
This configuration may be selected to stop:
Hazardous chemical feed
Fuel supply
Toxic gas flow
Reactor feed
Flammable liquid transfer
The valve opens when power or air is lost.
This may be selected for certain:
Cooling systems
Pressure-relief support functions
Emergency circulation systems
The appropriate failure position depends entirely on the process hazard analysis.
There is no universally correct fail position for every chemical application.
Modern chemical plants use integrated control systems to monitor production continuously.
Electro-pneumatic valves can communicate valve status to these systems through:
Limit switches
Proximity sensors
Position transmitters
Smart positioners
Digital communication systems
This allows operators to confirm:
Whether the valve received a command
Whether it moved successfully
Its actual position
Whether an actuator fault occurred
Whether process interlocks are satisfied
A typical automated sequence may work like this:
Control system confirms receiving tank level.
Transfer valve opens.
Position sensor confirms fully open condition.
Pump receives permission to start.
Flowmeter monitors transfer rate.
Tank reaches target level.
Pump stops.
Valve closes.
Closed-position feedback confirms isolation.
This interlocking logic improves both operational safety and process repeatability.
Material compatibility is one of the most important factors when choosing an electro-pneumatic valve.
A valve suitable for water may not be appropriate for acids, solvents, or aggressive process chemicals.
Depending on service conditions, valve bodies may use:
Carbon steel
304 stainless steel
316 or 316L stainless steel
Duplex stainless steel
Special alloys
Engineering plastics
Fluoropolymer-lined constructions
Material selection depends on chemical concentration, temperature, pressure, and corrosion characteristics.
Valve seals are directly exposed to the process medium and therefore require careful selection.
Common materials may include:
EPDM
NBR
FKM
PTFE
Reinforced PTFE
Other application-specific polymers
Chemical resistance charts can provide initial guidance, but actual operating temperature, pressure, concentration, and fluid composition must also be considered.
A chemically compatible valve body with an incompatible seal can still result in premature valve failure.
Corrosion is a major concern in chemical plants.
Incorrect material selection can lead to:
Internal leakage
External leakage
Seat deterioration
Stem damage
Valve seizure
Reduced service life
When selecting a valve, engineers should identify not only the primary chemical but also:
Chemical concentration
Impurities
Operating temperature
Cleaning agents
Possible reaction by-products
These factors can significantly alter corrosion behavior.
Chemical plants may contain flammable gases, vapors, or liquids.
Electrical components installed in hazardous areas may therefore require suitable protection.
This can include:
Solenoid valves
Limit switch boxes
Positioners
Sensors
Junction boxes
Where required by the installation, appropriate explosion-protected electrical equipment should be selected according to the applicable hazardous-area classification and project standard.
The pneumatic actuator itself uses compressed air, but the electrical control accessories must still be evaluated carefully.
Electro-pneumatic valves depend on compressed instrument air.
Poor air quality can cause:
Solenoid blockage
Positioner malfunction
Corrosion
Slow actuator response
Seal deterioration
Unstable valve movement
Instrument air should therefore be properly filtered and regulated.
An air filter regulator is commonly installed near the actuator assembly to provide stable operating pressure.
A reliable valve solution begins with complete process information.
Identify the exact fluid:
Acid
Alkali
Solvent
Gas
Steam
Water
Slurry
Hydrocarbon
Chemical mixture
The chemical composition directly affects valve-body and seal selection.
Chemical concentration can dramatically change material compatibility.
The name of the chemical alone is often insufficient.
Specify:
Normal operating pressure
Maximum pressure
Differential pressure
Differential pressure is particularly important for actuator sizing and control-valve performance.
Determine both normal and maximum operating temperatures.
Temperature affects:
Seal life
Lining compatibility
Actuator performance
Corrosion resistance
For control applications, engineers should provide:
Normal flow
Minimum flow
Maximum flow
Required pressure drop
This information is necessary for proper control-valve sizing.
Define whether the valve is required for:
Isolation
Regulation
Diversion
Emergency shutdown
Tank switching
Different functions can require different valve designs.
Specify whether the valve should:
Fail closed
Fail open
Remain in place
The choice should be based on process safety requirements.
Common automation requirements may include:
24 VDC ON/OFF
4–20 mA
0–10 V
Digital communication
Position feedback
Determine whether electrical accessories require hazardous-area certification.
Preventive maintenance helps minimize unexpected process shutdowns.
Chemical plants should periodically inspect:
Valve seat and seals
Stem packing
Pneumatic tubing
Air leakage
Solenoid valve function
Filter regulator
Position feedback
Actuator travel
Positioner calibration
Corrosion
External leakage
Fail-safe response
Control valves should also be checked for abnormal hunting, sticking, excessive vibration, or poor positioning accuracy.
Possible causes include:
Low air pressure
Solenoid malfunction
Blocked air line
Incorrect actuator sizing
Valve seizure
Electrical signal failure
Possible causes include:
Restricted pneumatic tubing
Dirty instrument air
Incorrect flow control setting
Actuator seal wear
Oversized actuator volume
Check:
Positioner calibration
Air pressure
Mechanical linkage
Valve friction
Control signal
Investigate:
Chemical compatibility
Excessive temperature
Excessive pressure
Abrasive particles
Incorrect valve selection
Addressing the root cause is usually more effective than repeatedly replacing the same component.
Properly specified electro-pneumatic valves can contribute to:
Faster process automation
More consistent batch production
Reduced manual valve operation
Better process interlocking
Accurate flow control
Safer chemical handling
Faster emergency isolation
Improved remote monitoring
Easier production changeover
Better integration with plant control systems
The greatest benefit comes when the valve, actuator, accessories, and control architecture are engineered as one complete system.
Electro-pneumatic valves play a critical role in chemical processing plants, connecting process-control systems with the physical movement of liquids and gases throughout the facility.
They are used for everything from basic pipeline isolation and tank switching to precision flow regulation, reactor control, chemical dosing, and emergency shutdown.
However, successful valve automation depends on more than simply selecting a pneumatic actuator.
Engineers must evaluate the complete operating environment, including chemical compatibility, corrosion resistance, pressure, temperature, flow conditions, actuator sizing, fail-safe position, control signal, instrument-air quality, and hazardous-area requirements.
When these factors are correctly matched, electro-pneumatic valve systems can provide reliable, responsive, and highly automated flow control for demanding chemical-processing applications.
They are used for automated isolation, flow regulation, pressure control, chemical dosing, tank switching, reactor control, and emergency shutdown applications.
Common options include ball valves, butterfly valves, globe control valves, diaphragm valves, plug valves, and other quarter-turn or linear process valves.
Yes, but the valve-body, trim, seat, seal, and lining materials must be compatible with the specific chemical, concentration, temperature, and pressure.

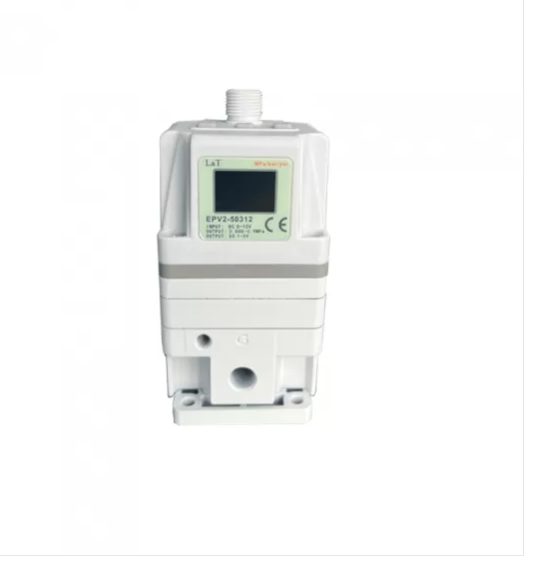

It is a device that converts an electrical control signal into pneumatic actuator movement so that a control valve can achieve the required intermediate opening position.
Spring-return actuators allow valves to move automatically to a predetermined fail-safe position when air pressure or control power is lost.
Important data include medium, chemical concentration, pressure, temperature, flow rate, valve size, piping connection, valve function, material requirements, fail-safe position, control signal, instrument-air pressure, and hazardous-area classification.
