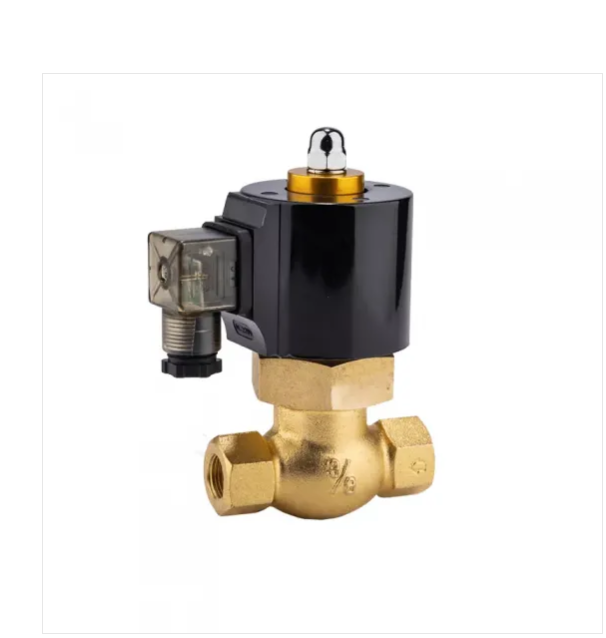

Typical Failure Causes of 2/2 Way Solenoid Valves

A Practical Guide to Troubleshooting, Prevention, and Long-Term Reliability

2/2 Way Solenoid Valves are widely used in fluid and gas control systems due to their fast response, compact structure, and ease of automation. However, even high-quality valves may fail if selection, installation, or maintenance is improper. Understanding the typical failure causes of 2/2 Way Solenoid Valves helps buyers, engineers, and maintenance teams reduce downtime, improve system reliability, and lower total operating costs.

This article explains the most common failure modes, why they occur, and how to prevent them in real-world industrial applications.

1. Coil Burnout Due to Incorrect Voltage or Power Supply

One of the most frequent failures in a 2/2 Way Solenoid Valve is coil burnout.

Common reasons:

Using AC voltage on a DC coil (or vice versa)

Voltage fluctuation beyond rated tolerance

Continuous energization without proper heat dissipation

Poor electrical connections causing overheating

How to prevent it:

Always verify coil voltage and frequency before installation

Use stabilized power supplies in automation systems

Choose solenoid valves with thermal protection for continuous-duty applications

For buyers, specifying correct voltage and duty cycle at the purchasing stage is critical.

2. Contamination and Debris Inside the Valve

Contaminated media is a leading cause of valve malfunction, especially in water, oil, and compressed air systems.

Typical contamination sources:

Rust particles from pipelines

Dust or solid impurities in compressed air

Scale buildup in water systems

Failure symptoms:

Valve stuck open or closed

Slow response time

Internal leakage

Prevention methods:

Install filters or strainers upstream

Regularly flush pipelines before installation

Select valves designed for dirty or slightly contaminated media

A clean system significantly extends the service life of a 2/2 Way Solenoid Valve.

3. Seal Wear and Material Incompatibility

Seals are critical components that directly affect valve tightness and reliability.

Common issues:

Rubber seal aging or hardening

Chemical attack from incompatible media

High-temperature deformation

Typical seal failures include:

External leakage

Internal bypass leakage

Loss of pressure holding capacity

Best practices:

Match seal materials (NBR, EPDM, FKM, PTFE) to the media and temperature

Avoid using general-purpose valves for aggressive chemicals

Consider high-performance sealing materials for critical applications

Incorrect seal selection is a hidden but costly failure cause.

4. Insufficient or Excessive Operating Pressure

Many users overlook pressure conditions during valve selection.

Problems caused by incorrect pressure:

Pilot-operated 2/2 Way Solenoid Valves failing to open at low pressure

Seal damage under excessive pressure

Reduced flow performance

Solutions:

Confirm minimum and maximum pressure ratings

Use direct-acting valves for low or zero-pressure systems

Avoid operating valves continuously at pressure limits

Correct pressure matching ensures stable valve operation.

5. Improper Installation Orientation and Piping Stress

Installation-related failures are common but preventable.

Typical installation mistakes:

Installing against flow direction

Mounting in positions that trap debris

Applying excessive mechanical stress from misaligned piping

Consequences:

Reduced valve lifespan

Leakage at connections

Erratic switching behavior

Installation tips:

Follow flow direction markings

Support pipelines independently

Ensure correct mounting orientation as specified by the manufacturer

6. Overheating Due to Continuous Operation

Continuous energization can generate excessive heat, especially in compact valve designs.

Causes:

100% duty cycle without cooling

High ambient temperature

Enclosed installation with poor ventilation

Effects:

Coil insulation breakdown

Reduced magnetic force

Premature valve failure

Prevention:

Choose solenoid valves rated for continuous duty

Use low-power or energy-saving coils

Allow airflow around the valve body

7. Corrosion of Valve Body or Internal Components

Corrosion-related failure is common in harsh industrial environments.

Typical scenarios:

Brass valves exposed to aggressive chemicals

Carbon steel components in humid environments

Coastal or chemical plant installations

Preventive measures:

Use stainless steel 2/2 Way Solenoid Valves for corrosive media

Apply protective coatings where appropriate

Ensure proper material compatibility

8. Incorrect Valve Type Selection

Not all failures are mechanical—many originate at the purchasing stage.

Examples:

Using a general-purpose valve for high-temperature steam

Choosing pilot-operated valves for zero-pressure systems

Selecting undersized valves for high flow demand

How buyers can avoid this:

Clearly define media, pressure, temperature, and flow rate

Consult with manufacturers during selection

Review application-specific datasheets

Correct selection is the foundation of long-term reliability.

Conclusion: Reducing Failure Through Proper Selection and Maintenance

Most failures of a 2/2 Way Solenoid Valve are preventable. They are typically caused by incorrect voltage, contaminated media, seal incompatibility, pressure mismatch, poor installation, or unsuitable valve selection.

By understanding these common failure causes and implementing preventive measures, users can:

Minimize unplanned downtime

Extend valve service life

Improve overall system efficiency

Reduce maintenance and replacement costs

For procurement teams and engineers, investing time in correct specification and supplier communication pays off far more than reactive repairs.
