Electro-pneumatic regulators are essential components in modern industrial automation systems. They are widely used in areas that demand precise pressure management, such as semiconductor manufacturing, liquid coating systems, pharmaceutical production, and robotics. These regulators contribute significantly to improving automation efficiency, production accuracy, and product quality.
This article provides a complete guide to electro-pneumatic regulators — from their basic functions and characteristics to selection criteria, maintenance practices, inspection methods, and troubleshooting tips.

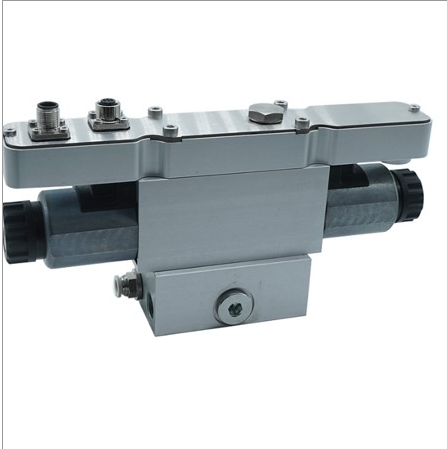

An electro-pneumatic regulator is a device designed to adjust air pressure proportionally to an electrical signal. Functioning as a proportional control valve, it continuously modifies output pressure based on variations in the input signal.
Because the adjustment is stepless and continuous, the regulator enables high-precision pressure control suitable for complex industrial applications. Unlike manual regulators, the pressure can be remotely adjusted in real time during machine operation, improving flexibility and process automation.
Basic Characteristics
Electro-pneumatic regulators offer several key features that distinguish them from conventional regulators.
1. Precision Pressure Control
These regulators convert electrical control signals into air pressure adjustments, allowing smooth, stepless regulation. A typical control circuit includes a host controller and a D/A converter that generates a voltage signal (e.g., DC 0–10V). The electro-pneumatic regulator then modifies air pressure to control actuator thrust and speed with high accuracy.
2. Feedback Control
An internal pressure sensor continuously monitors output pressure, sending feedback to the control board. The system automatically adjusts pressure to maintain stability even under load fluctuations or environmental changes.
Modern versions employ advanced feedback algorithms that correct steady-state deviation — the difference between the target pressure and actual pressure — resulting in extremely precise pressure regulation.
An electro-pneumatic regulator consists of several interconnected components that work together to achieve precise control:
Control Board: Processes input electrical signals and executes the feedback control algorithm. It serves as the system’s core, ensuring high-speed and accurate pressure response.
Pressure Sensor: Detects output pressure with precision and transmits the data to the control board. The board then calculates deviations between the actual and target pressure values.
Supply and Exhaust Valves: These valves regulate the flow of air between the supply port, output port, and exhaust port. Their coordinated operation maintains pressure balance in the control chamber.
Pilot Chamber: This chamber receives controlled pressure from solenoid valves and applies it to the diaphragm for precise actuation.
Feedback Chamber: Works in tandem with the pilot chamber to maintain a stable pressure balance that matches the input control signal.
Choosing the correct electro-pneumatic regulator requires consideration of multiple operational factors:
Pressure Conditions:
Verify the primary (inlet) and secondary (outlet) pressures. Select a regulator whose pressure range matches the requirements of the connected equipment or pneumatic tools.
Flow Rate:
Determine the necessary flow rate for your system. For instance, if an air tool consumes 300 L/min, ensure the regulator can handle that capacity to prevent pressure loss or instability.
Operating Conditions:
Consider available installation space, wiring constraints, and the need for display features such as digital pressure readings or error indicators.
Piping Size:
The inlet and outlet ports may differ in thread size. Choose a regulator with fittings compatible with your existing piping system.
Input Signal Type:
Select a model that matches your control system’s signal format — for example, 0–10 VDC, 0–5 VDC, 4–20 mA, 1–5 VDC, 0–20 mA, or IO-Link.
Not all regulators accept every input type, so confirm compatibility before purchase.
Accessories and Options:
Choose suitable accessories such as mounting brackets, electrical cables, and fittings according to the usage environment and intended function.
Inspection and Maintenance Methods for Electro-Pneumatic Regulators
To ensure long-term, stable operation, regular maintenance is crucial. Always disconnect power, stop the compressed air supply, and release residual pressure before inspection.
Recommended Inspection Frequency
Although inspection frequency depends on usage conditions, it is advisable to perform a general inspection at least once a year.
Supply Pressure Management:
Confirm that the supplied air pressure matches the set operating pressure.
Check that the pressure gauge displays correctly during operation.
Air Filter Condition:
Ensure the drain is discharged properly.
Clean the filter bowl and element if contamination is found.
Leak Management:
Inspect all piping and moving parts for air leaks.
Even small leaks can cause pressure instability or malfunction.
Operating Condition:
Observe for any delay in regulator response or abnormal exhaust behavior.
Actuator Condition:
Verify smooth movement and correct end-stop positions.
Ensure the connection between the regulator and load is stable.
At the initial installation stage, perform inspections at shorter intervals to determine the optimal maintenance cycle for your specific environment.
When the regulator fails to operate properly, use the following guide to identify and resolve potential issues.
Loud Humming Noise:
This may occur due to a major air leak or an air bypass exceeding the relief capability. Such conditions drastically shorten the regulator’s lifespan. Recheck system configuration and operating method.
Pressure Output Present Even When Power is OFF:
This can happen if power was turned off while the input signal remained active. Turn the power back ON, set the input signal to 0%, and confirm normal operation.
No Pressure Output:
Verify that primary air supply is above the minimum operating pressure and that all wiring connections are secure.
Pressure Cannot Be Controlled:
Possible causes include abnormal input signals or sensor failure. For analog systems, ensure that the signal ground and power ground are properly shared.
Pressure Does Not Reach Set Value:
Check whether the primary supply pressure is sufficient. Insufficient inlet pressure will prevent the regulator from achieving the desired output.
Pressure Does Not Decrease:
The exhaust passage may be blocked. Make sure the exhaust port (R or EXH port) is open and unobstructed.
Pressure is Unstable:
Instability may result from fluctuating input signals, unstable power voltage, or piping leaks. Use a stabilized power supply, ensure proper grounding, and verify all connections.
Pressure Oscillation:
If oscillations occur, lower the primary pressure within an acceptable range or adjust the secondary piping conditions. Sometimes, reducing the proportional control value can stabilize output pressure.
Industries and Applications of Electro-Pneumatic Regulators
Electro-pneumatic regulators are indispensable in industries requiring accurate and responsive air pressure control. Typical applications include:
Semiconductor Manufacturing:
Used in wafer transfer, vacuum holding, and polishing pressure control, where minute pressure changes directly affect product yield.
Display and Coating Equipment:
Essential for maintaining uniform pressure during LCD or touch panel coating processes.
Pharmaceutical Production:
Applied in tablet compression, liquid dosing, and processes that require strict quality consistency.
Food and Beverage Manufacturing:
Used for controlling filling pressure and ensuring consistent product volume.
Film and Plastic Processing:
Maintains precise tension control during film winding and extrusion processes.
Robotics:
Regulates gripping force and actuator movement to prevent damage to delicate components.
Printing Machinery:
Ensures stable printing pressure for consistent ink transfer and print quality.
The primary distinction between the two lies in their control mechanisms.
Electro-pneumatic regulators automatically control pressure using electrical signals, enabling precise, remote, and continuous adjustments. Feedback systems further enhance their accuracy and responsiveness.
Conversely, air regulators are manually operated. Pressure is adjusted using a knob or handle, and once set, the regulator maintains that pressure mechanically. While suitable for simple systems, manual regulators lack the flexibility and automation capabilities of electro-pneumatic types.
Electro-pneumatic regulators play an increasingly vital role in automated manufacturing systems. Their ability to integrate electronic control with pneumatic operation enables precise, efficient, and stable pressure management across a wide range of industries.
By selecting the appropriate model, performing regular inspections, and following proper maintenance practices, users can ensure reliable performance and long operational life.
For businesses aiming to upgrade production lines with intelligent and energy-efficient solutions, electro-pneumatic regulators remain an indispensable choice.
