A pneumatic actuator is a device that transforms compressed air into mechanical movement, facilitating automation across various industrial operations. These actuators are widely used in sectors such as manufacturing, automotive, mining, and oil & gas due to their reliability, affordability, and straightforward maintenance.
Whether your application requires linear or rotary motion, choosing the appropriate actuator is crucial for achieving optimal performance, durability, and dependability. This guide covers everything you need to understand about pneumatic actuators, including their types, common applications, and tips for selecting the right one for your specific requirements.
A pneumatic actuator operates by using compressed air to drive a piston within a cylinder. The air pressure moves the piston, producing either linear or rotary motion, which can be precisely controlled for automation purposes.
In linear actuators, compressed air enters one side of the cylinder, pushing the piston forward to create linear motion, while the displaced air exits through an exhaust port. Double-acting actuators receive compressed air alternately on both sides of the piston, enabling controlled back-and-forth movement for enhanced precision.

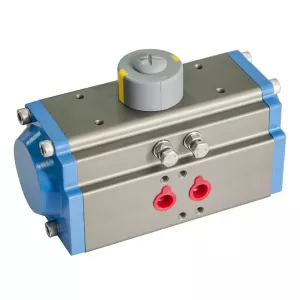

Rotary pneumatic actuators use mechanisms such as rack-and-pinion or vane designs, which convert the piston's linear motion into rotational motion. These actuators are ideal for applications requiring controlled rotation, including butterfly valves and robotic systems.
The performance of a pneumatic actuator depends on factors like air pressure, seal integrity, and cylinder design. Routine maintenance—such as inspecting for leaks and ensuring proper lubrication—helps maintain efficiency and prolongs the actuator’s service life.
Pneumatic actuators are mainly classified into two types:
Pneumatic Linear Actuators
Linear pneumatic actuators generate straight-line motion. They convert compressed air into linear movement, either by extending and retracting or by pushing and pulling a load. These actuators are widely used in applications where components need to move in a single direction, such as material handling, automation systems, and heavy industrial processes.
They are particularly suitable for tasks requiring precise linear movement, for example, controlling knife gate valves in slurry or ore transport pipelines to manage abrasive materials efficiently.
Pneumatic Rotary Actuators
Rotary pneumatic actuators transform compressed air into rotational motion, making them ideal for operations where components must turn, pivot, or rotate. They provide a fixed or adjustable angular displacement, which is essential for valve automation, assembly lines, and robotic systems.
These rotary actuators are commonly applied in butterfly valves and various industrial automation setups.
Pneumatic actuators are essential in industries where reliability, safety, and efficiency are critical, such as mining, oil and gas, and power generation. They are commonly employed to operate valves, dampers, conveyors, and other process control equipment in harsh environments where electrical systems may be unsuitable due to explosion risks or extreme conditions.
Mining Industry
In mining operations, pneumatic actuators control material flow, safety systems, and automation equipment. Their resistance to dust, moisture, and vibrations makes them particularly suitable for mining applications:
Slurry Valves: Actuators operate knife gate or ball valves for handling abrasive slurries in ore processing.
Water Control Valves: Used in dewatering systems to manage water discharge from underground or open-pit mines.
Dust Suppression Systems: Control spray nozzles to reduce dust at conveyor belts and crushers.
Oil & Gas Industry
Pneumatic actuators are widely used in both offshore and onshore oil & gas operations due to their reliability in hazardous, explosive environments and ability to operate without electrical power:
Wellhead Control Valves: Regulate the flow of crude oil and natural gas from production wells.
Pipeline Block & Bleed Valves: Operate in pipeline isolation systems to prevent leaks and overpressure.
Emergency Shutdown Valves (ESD): Automatically shut down equipment in case of gas leaks, overpressure, or failures.
Blowout Preventers (BOPs): Quickly close BOPs during drilling to prevent blowouts.
Automotive Assembly Lines
In automotive manufacturing, pneumatic actuators are valued for their speed and reliability in repetitive operations. Typical applications include:
Welding Operations: Controlling robotic welding arms, clamps, and positioning devices.
Conveyor Control: Moving chassis, engines, and body panels along production lines.
Pressing and Stamping: Operating sheet metal forming presses.
Door and Panel Assembly: Aligning and securing car doors, fenders, and hoods.
Painting and Coating Systems: Actuating spray nozzles for consistent paint application.
Tire and Wheel Assembly: Positioning wheels and tightening lug nuts in automated stations.
When choosing a pneumatic actuator, keep the following factors in mind:
Operating Pressure: Ensure the actuator is suitable for the system’s typical pressure range, usually between 4–8 bar.
Load Capacity: Select an actuator that can safely handle the weight and force requirements of your application.
Speed and Stroke Length: Consider the distance and speed of movement needed to achieve optimal performance.
Mounting Requirements: Verify that the actuator is compatible with your existing setup and mounting configuration.
To ensure longevity, follow these maintenance tips:
Regularly check for air leaks.
Lubricate moving parts to reduce wear.
Inspect the flexible diaphragm and seals for damage.
Replace worn-out valves and pistons.
A good pneumatic actuator should have:
High-quality piston inside a durable cylinder.
Corrosion-resistant materials.
Precise control over linear motion and rotary motion.
Compatibility with your existing valves.
Selecting the appropriate pneumatic actuator requires a clear understanding of your application’s requirements, including pressure, load capacity, and the type of motion needed. Considering factors such as linear or rotary movement, valve compatibility, and piston design will help optimize performance and efficiency.
Industrial automation specialists can assist in identifying the most suitable pneumatic actuator for your operations, ensuring reliable, smooth, and efficient performance over the long term.
