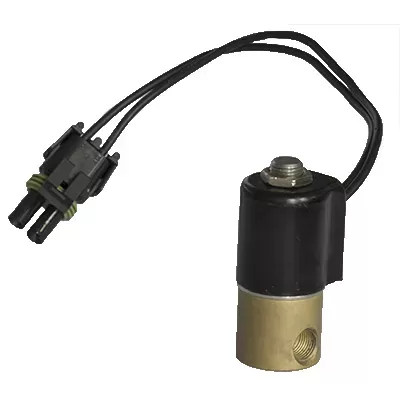

OEM Solenoid Valve
OEM Solenoid Valve
Product Details
| Item | Technical Parameters | Item | Technical Parameters |
| Appearance | No rust, co clogging, clear label | Duty Cycle | ED100% |
| Working type | "2/2 Direct acting/ High Frequency " | Working pressure | 0.5-7bar |
| Connection port | With wire lead（OD Φ2.8） | Insulation class | Class H |
| Media | Compressed air/Exhaust gas | Protection class | IP65 |
| Pattern | NC | Power | 8W |
| Rated voltage | DC24V±10% | Working frequency | 30Hz |
| Orifice | Φ1.6mm | Valve Body Material | Brass |

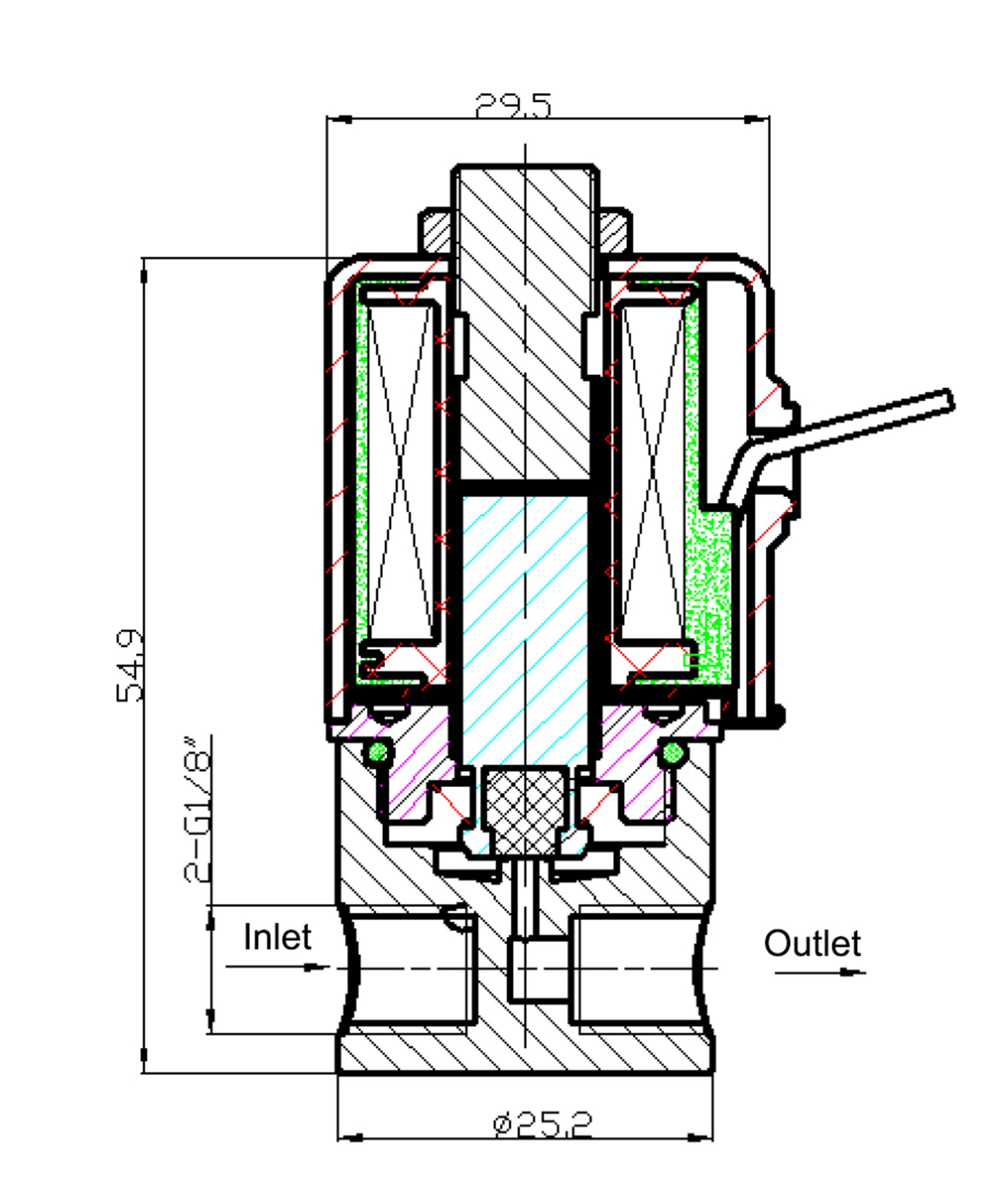

Overall Dimension
