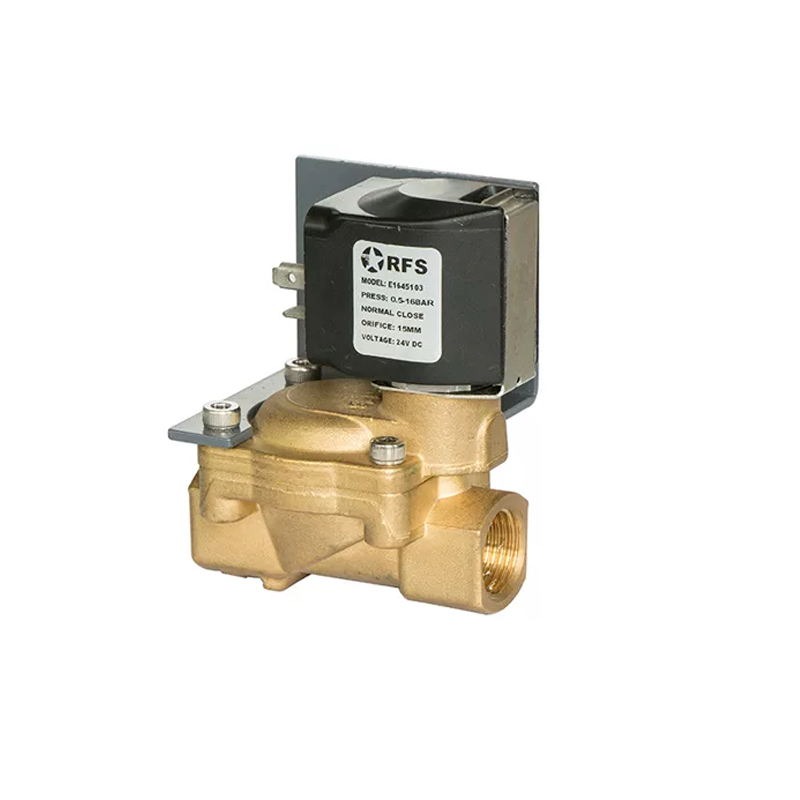

OEM Solenoid Valve
OEM Solenoid Valve
Parameter
| Model | E1645103 |
| Media | Natural gas ,Air ; |
| Working type | Pilot-operated |
| Pattern | Normally Close |
| Orifice | 15mm |
| Connection Port | 3/8 ,G/PT/NPT |
| Working Pressure | 0.05-1.6Mpa |
| Working Temp. | -10 ~ +80℃ |
| Rated Voltage | AC/DC24V-220V |
| Protection Class | IP65 |
| Insulation Class | H Class |
| Valve Body Material | BRASS |
| Seal Material | HNBR |

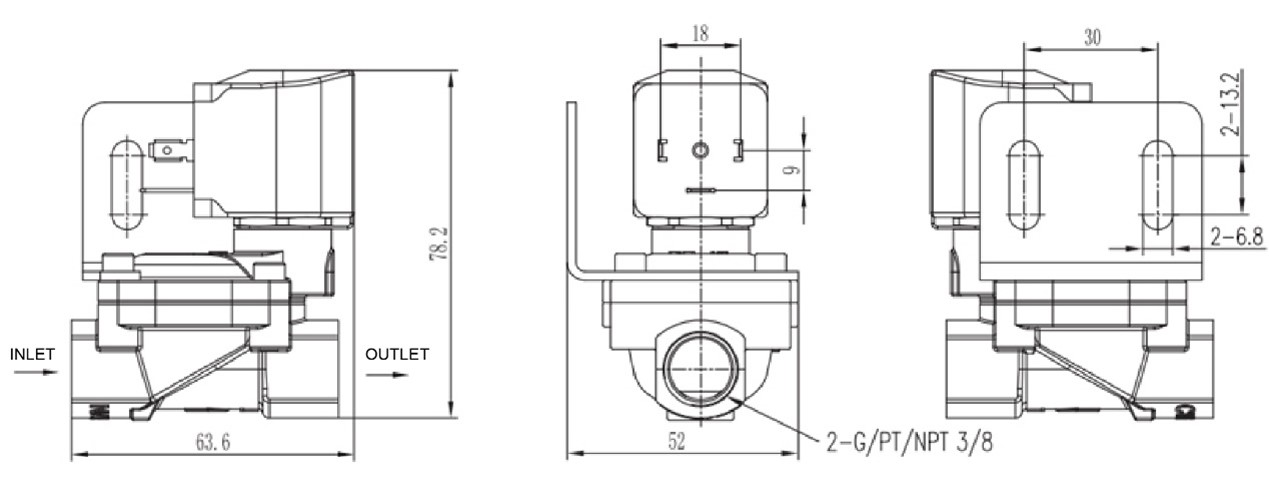

Overall Dimension
