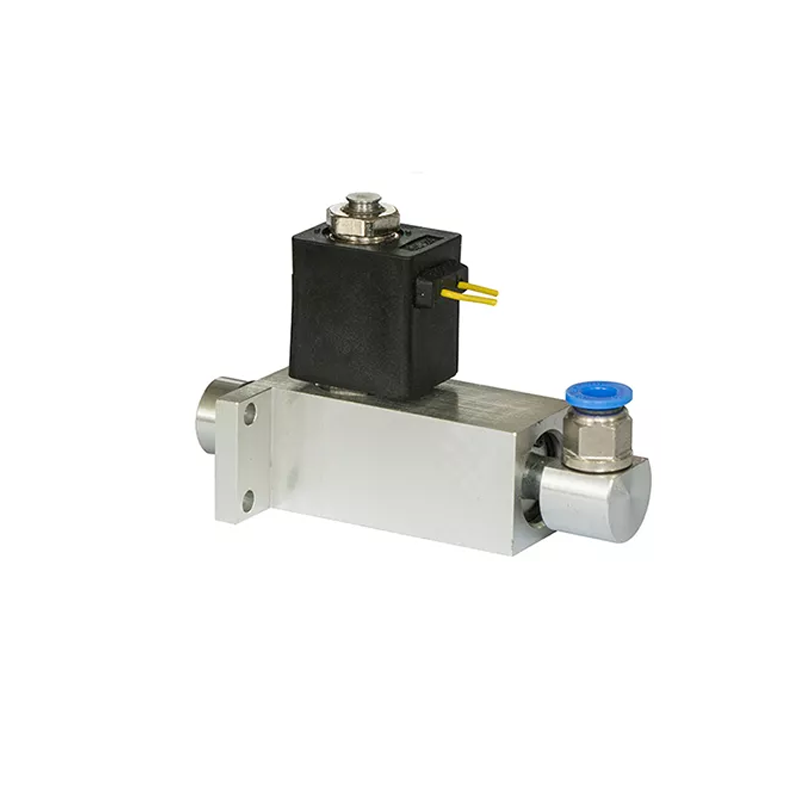

OEM Solenoid Valve
OEM Solenoid Valve
Product Details
| Model | XF1 |
| Media | Carbamide; |
| Working type | 2/2 Direct Action |
| Pattern | Normally Close |
| Orifice | 1.4mm |
| Connection Port | G1/8 - φ6 Pipe |
| Working Pressure | 0.05-1Mpa |
| Working Temp. | -40 ~ +120℃ |
| Rated Voltage | 24VDC |
| Protection Class | IP65 |
| Insulation Class | H Class |
| Valve Body Material | 6061-T6 |
| Seal Material | NBR |

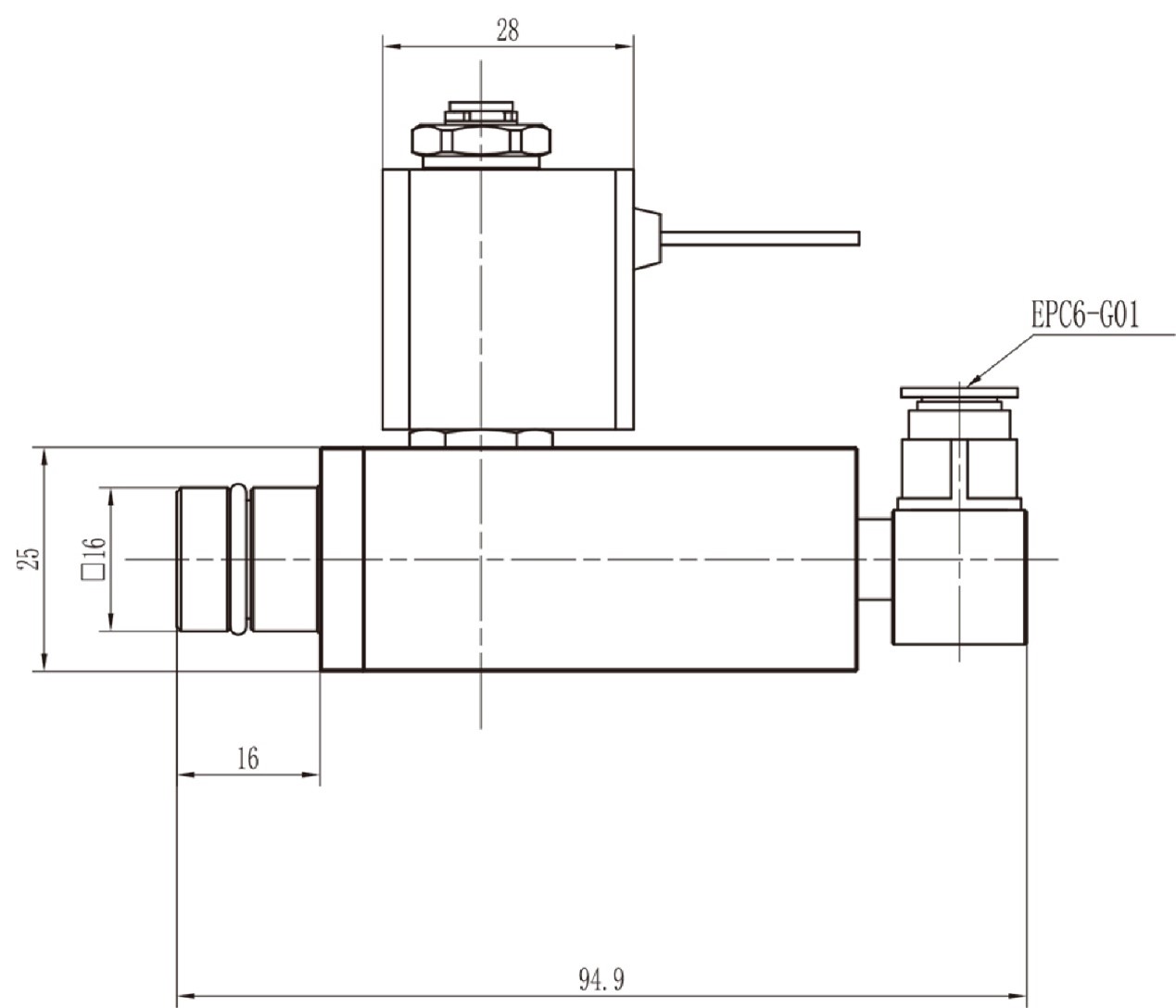

Overall Dimension
