Three-Way Configuration: These valves have three ports, allowing for more complex flow control, including diverting, mixing, or shutting off flow from multiple sources.
Pneumatic Actuation: The valve is operated using a pneumatic actuator, providing rapid and reliable operation. This is particularly useful for automated or remote control systems where quick response and consistent operation are essential.
Various Flow Patterns: They can be designed for different flow patterns, such as L-port or T-port, to either combine two flows, divide a flow into two outlets, or switch between different flow paths.
High Durability: Constructed typically from robust materials, these valves can withstand harsh industrial environments and are suitable for high-pressure applications.
Excellent Sealing Performance: The ball mechanism provides a tight seal, which is crucial in preventing leakage and ensuring efficient operation, especially in systems handling expensive or hazardous fluids.

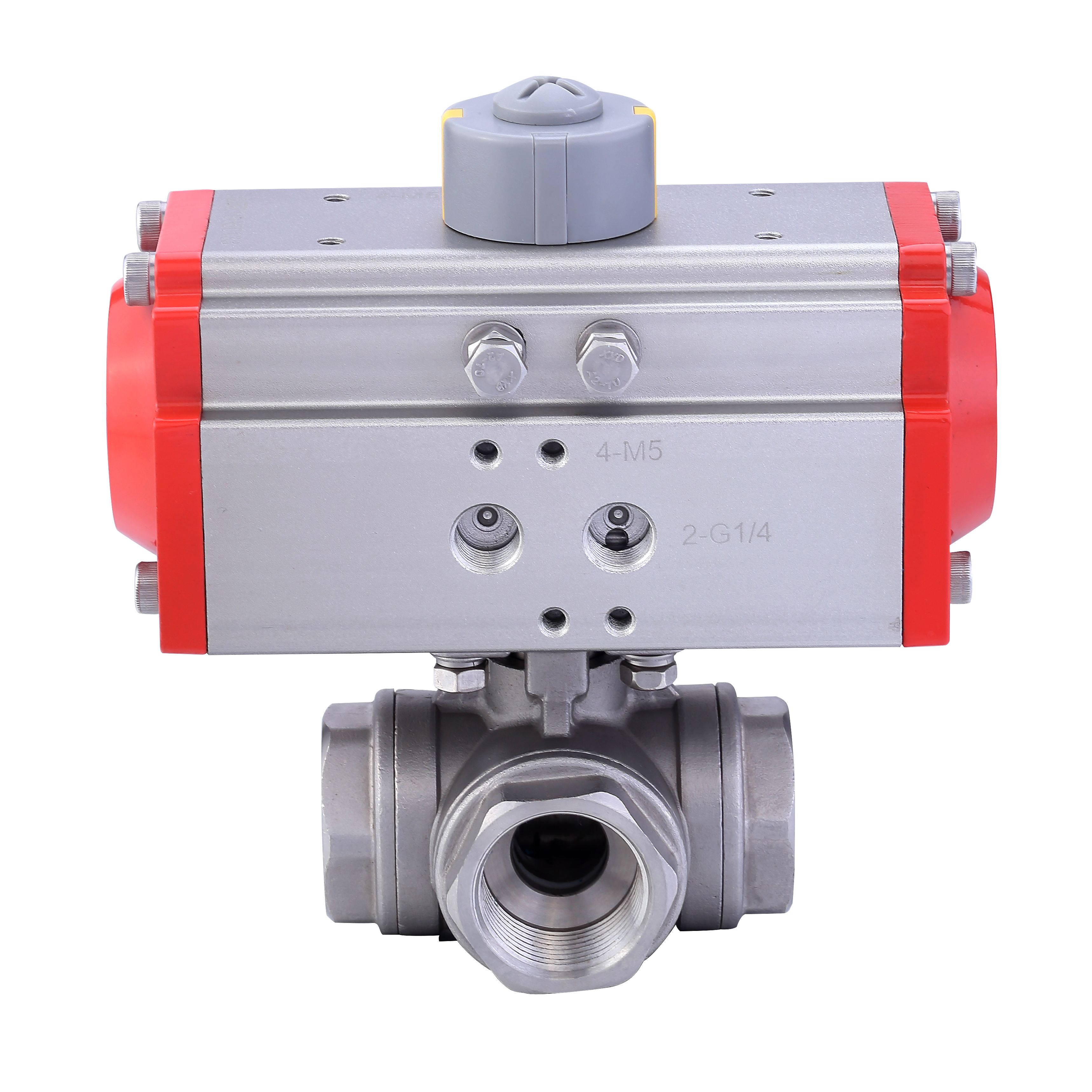

Xingyu's Pneumatic 3-Way Ball Valve is designed for automated flow switching in industrial fluid control systems. With three ports and a pneumatically operated ball mechanism, it allows compatible fluids or gases to be directed between different flow paths without requiring manual valve operation.
Depending on the valve configuration, L-port and T-port designs support different flow-routing functions, including diverting, selecting, or combining flow paths. The valve is operated by a pneumatic actuator, making it suitable for integration into automated equipment and process systems.
For industrial equipment manufacturers, system integrators, and distributors, selecting the right valve requires matching the port configuration, connection size, valve body and seal materials, operating pressure, and actuator requirements to the intended application.
The L-port design is commonly used to switch flow between two alternative paths, while the T-port design can support different flow-routing arrangements, including selected mixing or distribution functions.
The actual flow paths depend on the internal ball passage and port arrangement. Confirm the valve's flow diagram and switching positions before selecting a model for your system.
The valve uses a pneumatic actuator to rotate the ball between specified positions. Pneumatic operation supports remote switching and integration with automated control systems.
Depending on the selected actuator, single-acting spring-return or double-acting configurations may be available. Confirm the required operating mode, air supply pressure, and fail position against the actual product specification.
Valve body material, ball and stem materials, seat seals, and connection type all influence product compatibility and service life.
Depending on the selected model, buyers may evaluate different body materials, sealing configurations, and threaded or other connection options. The exact available combinations should be confirmed before ordering.
A three-way ball valve can combine multiple flow-routing functions in one valve body. This may help simplify piping arrangements where the system needs to switch between alternative supply or outlet paths.
Actual installation benefits depend on the pipeline layout, required flow capacity, and valve configuration.

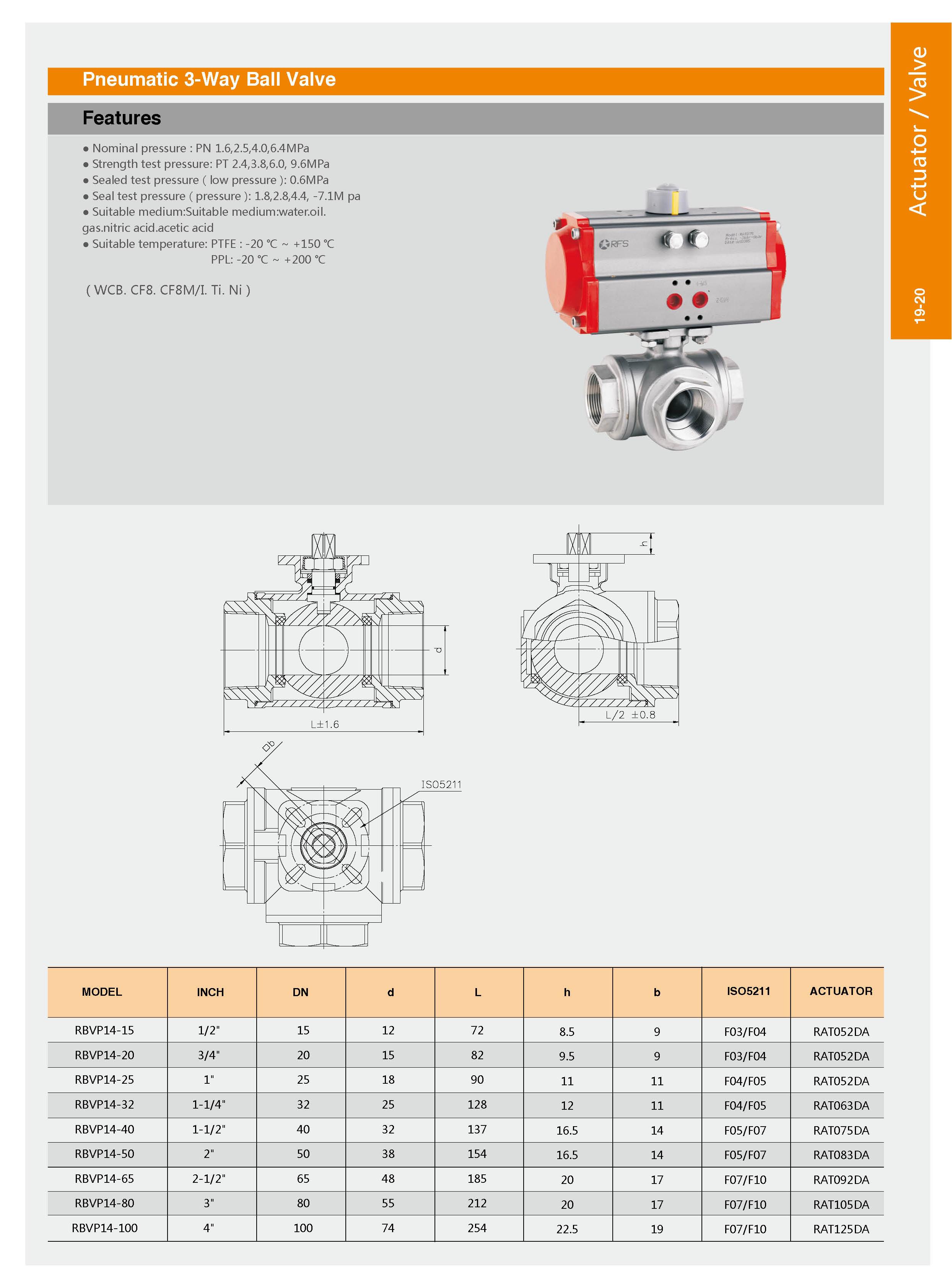

The following parameters should be checked against the selected valve model's datasheet before purchase.
| Parameter | What to Confirm |
|---|---|
| Valve type | Pneumatic 3-way ball valve |
| Port configuration | L-port or T-port |
| Valve body material | Material specified for the selected model |
| Seat and seal material | Compatibility with the process medium |
| Nominal size | Required DN or inch size |
| Connection type | Threaded, flanged, or other specified connection |
| Working pressure | Rated pressure for the selected valve size and material |
| Medium temperature | Permitted temperature range |
| Actuator type | Single-acting or double-acting, as available |
| Air supply pressure | Required pneumatic operating pressure |
| Operating mode | On/off switching or another specifically supported control arrangement |
The final selection should be based on the actual product drawing and technical datasheet. Do not assume that every port configuration, material, pressure rating, or actuator option is available across the entire product range.
Established in 1991, Xingyu manufactures solenoids, solenoid valves, pneumatic actuators, and other fluid control components. Our manufacturing experience supports customers working on industrial automation and fluid control projects.
Xingyu operates a manufacturing facility covering approximately 40,000 m², with more than 200 processing machines and over 100 testing machines, according to our published company information. These resources support manufacturing operations, product inspection, and quality control.
Our published company information includes ISO 9001:2015 and IATF 16949 quality management certifications. We focus on defined product specifications and manufacturing controls to support consistent quality across customer orders.
Xingyu supports OEM customers and equipment manufacturers with technical communication and product customization assessment. We can review valve requirements, connection dimensions, operating conditions, and actuator configurations to help determine a suitable solution.
Learn more about our manufacturing background and capabilities on the About Xingyu page.
Used to switch compatible water flows between treatment stages, bypass lines, and alternative outlets, depending on the required port configuration.

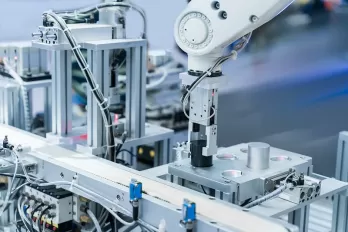

Integrated into automated equipment where pneumatic operation is used to switch fluid routes according to the machine's operating sequence.
Can be evaluated for compatible process fluids when the valve body, seat, and sealing materials meet the chemical and temperature requirements.
Used in suitable liquid and gas systems that require flow diversion, selection, or routing between multiple pipelines.
Suitable for evaluation in custom machinery and process equipment where three-way flow switching and pneumatic actuation meet the system design requirements.
The valve must be selected according to the medium, operating pressure, temperature, flow requirements, and applicable safety requirements.
Determine whether an L-port or T-port valve provides the required flow path. Review the flow diagram and switching positions rather than relying on the port designation alone.
Identify the fluid or gas and check the compatibility of the valve body, ball, seats, and seals. Material suitability should be verified for the actual operating conditions.
Confirm the system's normal and maximum operating pressure, medium temperature, and any expected operating variations. Select a valve whose documented ratings meet these requirements.
Match the valve's nominal size and connection standard with the pipeline design. Review dimensional drawings when installation space or replacement compatibility is important.
Confirm the required air supply pressure, single-acting or double-acting operation, and the desired position following loss of air supply. These factors affect how the valve behaves within the control system.
Determine whether the application requires simple on/off switching or a more specialized control arrangement. Do not assume proportional or modulating control is supported unless the selected actuator and accessories are specified for that function.
It is used to switch, divert, or route compatible fluids and gases between three ports. A pneumatic actuator operates the ball, enabling remote switching in automated systems.
L-port valves typically switch flow between alternative paths. T-port valves provide additional routing possibilities, which may include flow distribution or combining, depending on the port arrangement and ball position.
Pneumatic actuation supports remote operation and integration with automated equipment. The appropriate actuator depends on the required switching function, available air supply, and desired failure behavior.
Consider the process medium, operating pressure, temperature, and compatibility of the valve body and sealing materials. Verify the selected model's datasheet before ordering.
Provide the required port configuration, nominal size, connection type, medium, working pressure, temperature, actuator requirements, quantity, and any relevant technical drawing.
When selecting a three-way ball valve for a new system or replacement project, confirm the required flow paths, operating conditions, connection dimensions, and actuator specifications before ordering.
Xingyu supports industrial buyers and OEM customers in reviewing product requirements and identifying suitable valve configurations for their applications.
