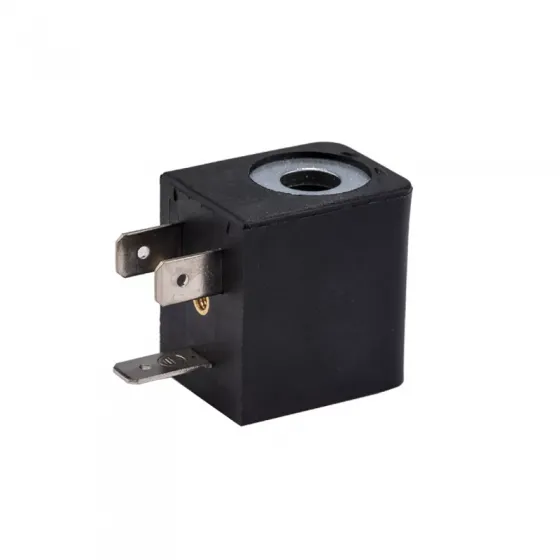

Pneumatic Coil
Pneumatic Coil
Diameter:9mm,Height:29.5mm
22mm solenoid coil
Standard solenoid coil for 4V series solenoid valve
CE certificated 22mm solenoid coil
Product Details
| Normal Voltage | AC220V,AC110V,DC24V,DC12V | |
| Normal Power | AC | 4VA~5.5VA 6VA~8.5VA |
| DC | 3W~4.8W 6.5W~8W | |
| Other voltage and power can be customized | ||
| Insulation Class | B,F,H | |
| Connection Type | DIN43650B | |
| Diameter | 9 mm | |
| Height | 29.5mm | |

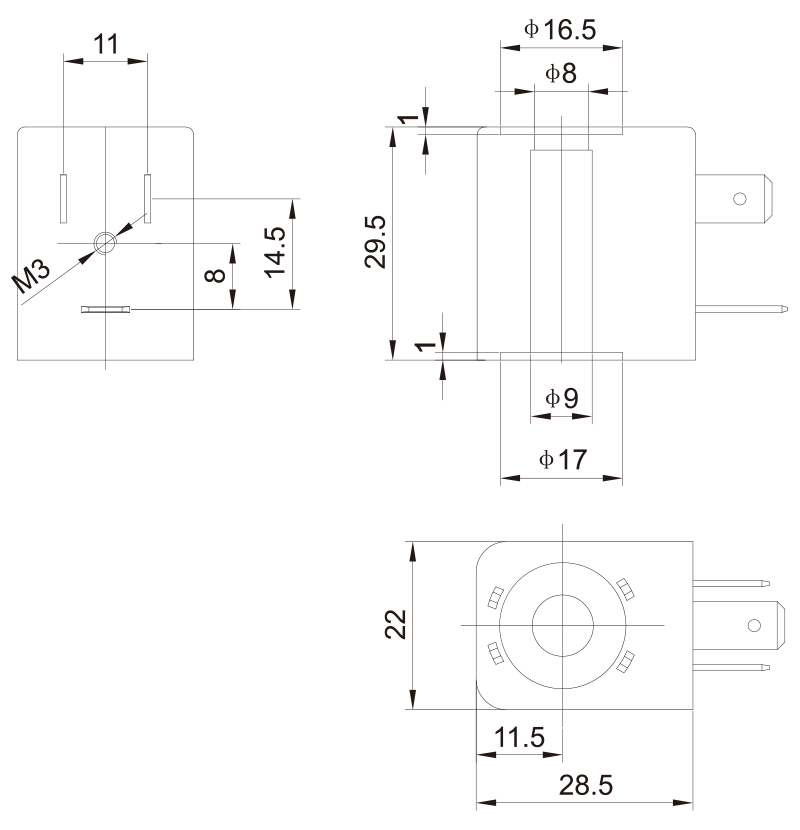

Overall Dimension
