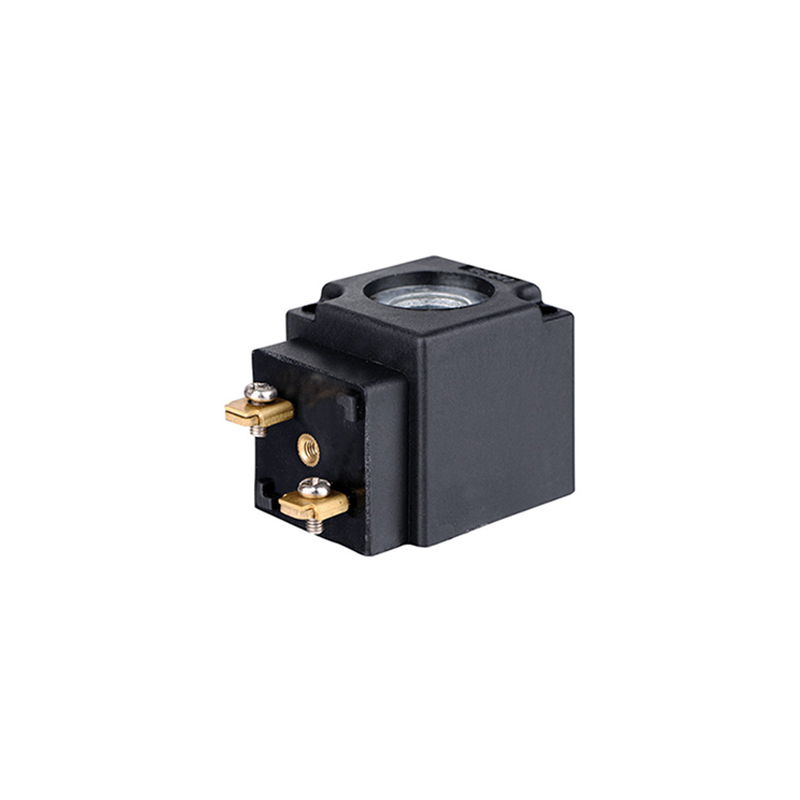

Pneumatic Coil
Pneumatic Coil
Diameter:11.5mm,Height:32.5mm
Solenoid coil with DIN4.8 connection
DIN4.8 connection solenoid coil for K,Q series solenoid valve
Product Details
| Normal Voltage | AC220V,AC110V,DC24V,DC12V | |
| Normal Power | AC | 10VA |
| DC | 7W 12W | |
| Other voltage and power can be customized | ||
| Insulation Class | B,F | |
| Connection Type | DIN4.8 | |
| Diameter | 11.5 mm | |
| Height | 32.5 mm | |

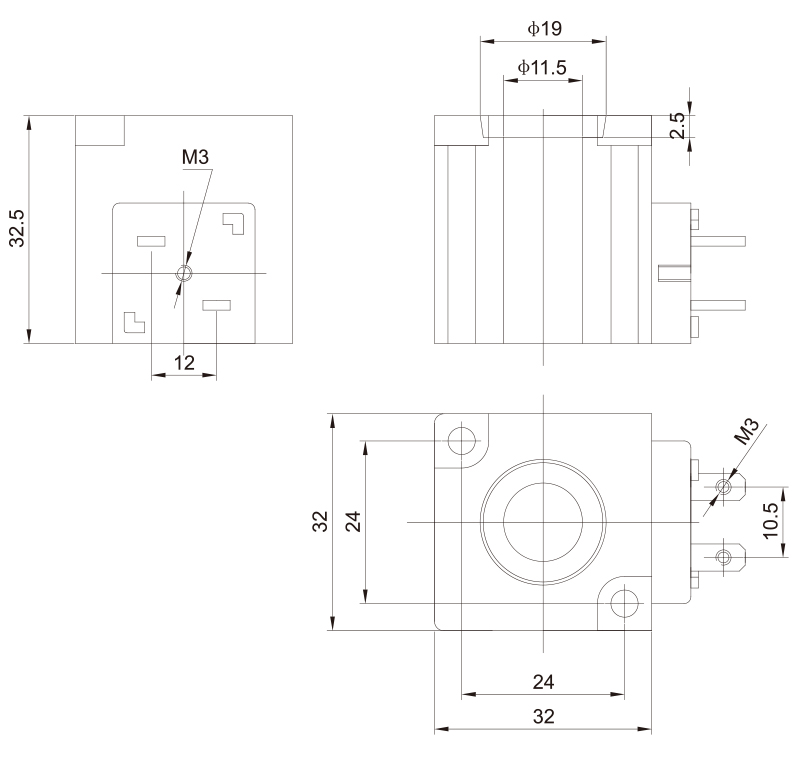

Overall Dimension
