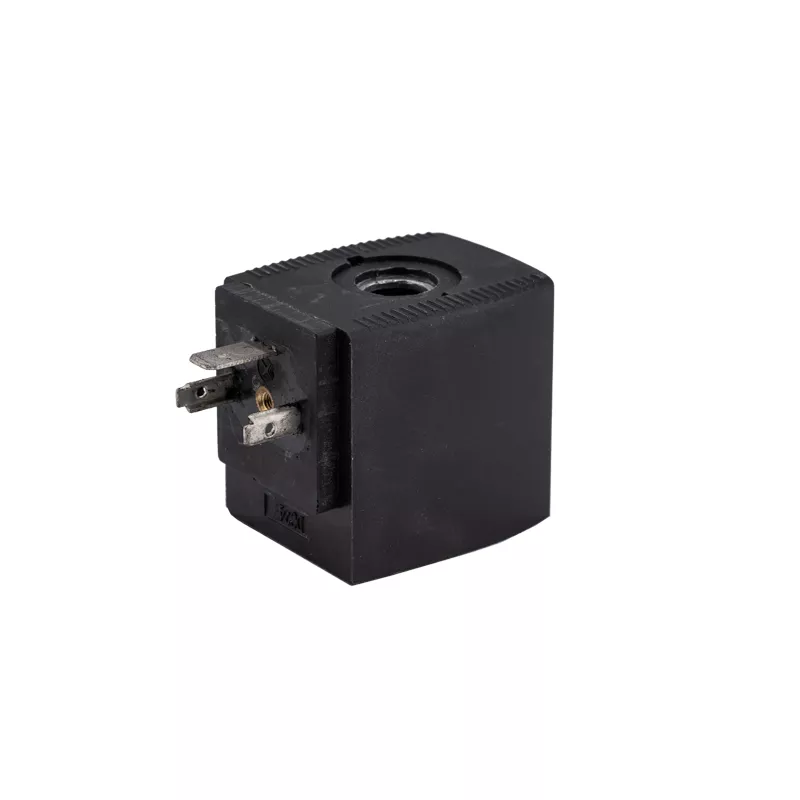

SB086 Pneumatic Coil

  • Diameter:14.5mm,Height:40.5mm

  • Solenoid coil for gas solenoid valve

  • Gas solenoid valve coil

  • CE certificated solenoid coil for gas solenoid valve

  • Solenoid coil for 2/2 gas solenoid valve


Product Details

Normal VoltageAC220V AC110V DC24V DC12V
Normal PowerAC22VA
DC9W 16W
Other voltage and power can be customized
Insulation ClassH
Connection TypeDIN43650A
Diameter14.5 mm
Height40.5 mm

The SB086 Pneumatic Coil is a high-performance solenoid coil specifically designed for gas solenoid valves. With a compact size of 14.5mm in diameter and 40.5mm in height, this coil is ideal for applications requiring efficient and stable electromagnetic actuation in compact valve systems. CE certified and manufactured to meet rigorous quality standards, the SB086 coil ensures reliable operation in a variety of industrial gas control environments.


Key Features

Tailored for Gas Solenoid Valves

The SB086 coil is widely used in 2/2-way gas solenoid valves, providing the necessary electromagnetic force to open or close the valve with high precision and consistency.


Compact Size for Versatile Integration

With a small footprint (Φ14.5mm x H40.5mm), this coil is suitable for use in tight installation spaces without compromising on performance or durability.


CE Certified for Safety and Compliance

Certified to meet European safety and performance standards, the SB086 is a trusted choice for OEMs and system integrators requiring assured compliance in gas valve applications.


High Insulation and Safety Performance

Class H insulation ensures excellent heat resistance and long service life, even in high-duty or continuous operation environments.


DIN43650A Connection

Equipped with a standard DIN43650A connector, the coil offers easy installation and secure electrical connectivity for both AC and DC systems.


Typical Applications

Gas solenoid valves in heating systems

Gas pipelines and control cabinets

Industrial combustion systems

Automation equipment involving gas media

Gas detection and safety shutoff valves


Why Choose Xingyu's SB086 Pneumatic Coil?

As part of Xingyu's extensive portfolio of solenoids and coils, the SB086 benefits from:


Over 30 years of manufacturing expertise

ISO9001:2015 and IATF16949 quality certifications

Advanced production and testing equipment

Support for OEM/ODM customization


Looking for a reliable, compact, and CE-certified coil for your gas solenoid valves?

Inquire now to get product datasheets, samples, or bulk pricing. Xingyu also welcomes customized designs based on your voltage, size, and performance requirements.

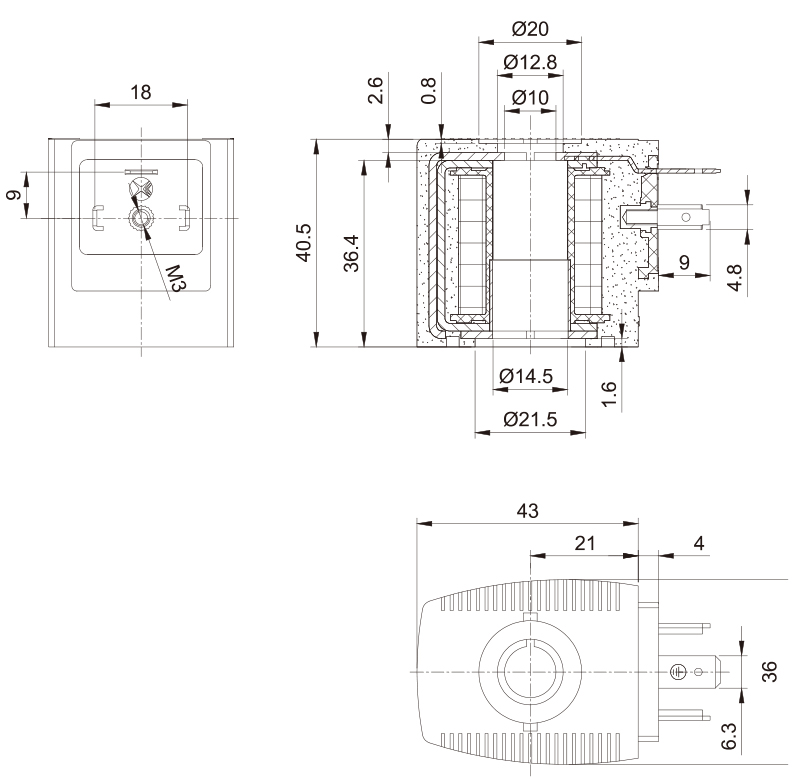

Overall Dimension

SB086 Pneumatic Coil
