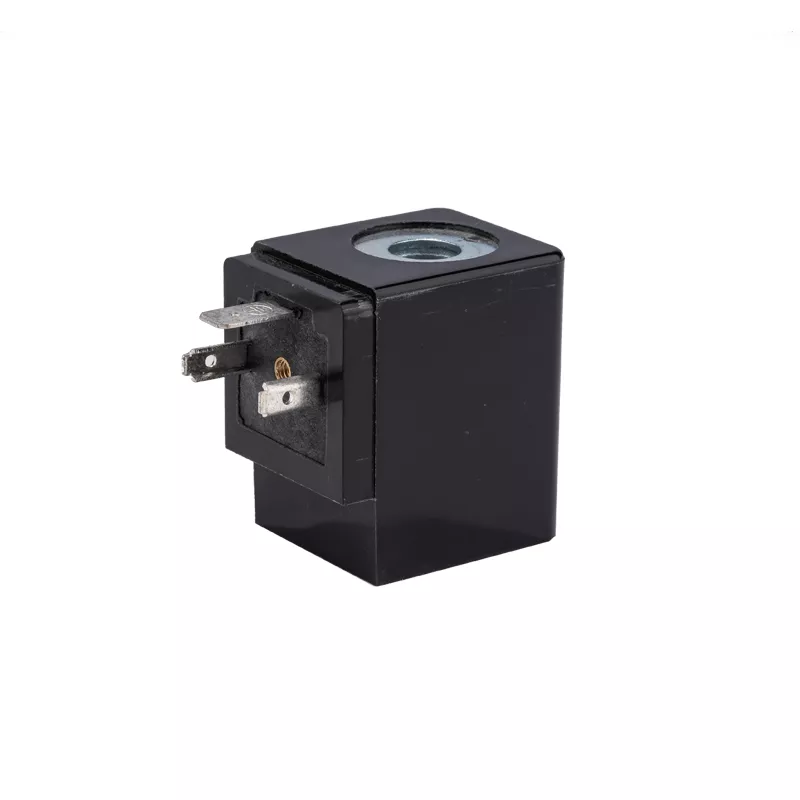

Pneumatic Coil
Pneumatic Coil
Diameter:14.5mm,Height:42mm
UL solenoid coil for drain valve
Solenoid coil for manifold valve
Solenoid coil for SB163 series valve
Product Details
| Normal Voltage | AC220V AC110V DC24V DC12V | |
| Normal Power | AC | 22VA 25VA |
| DC | 12W 14W 20W | |
| Other voltage and power can be customized | ||
| Insulation Class | H | |
| Connection Type | DIN43650A | |
| Diameter | 14.5 mm | |
| Height | 42mm | |

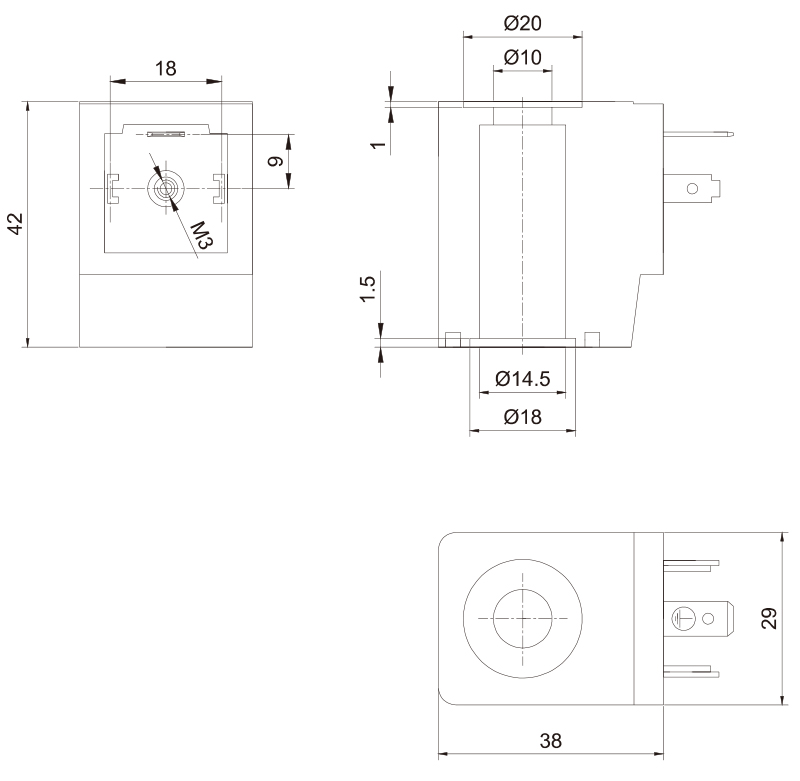

Overall Dimension
