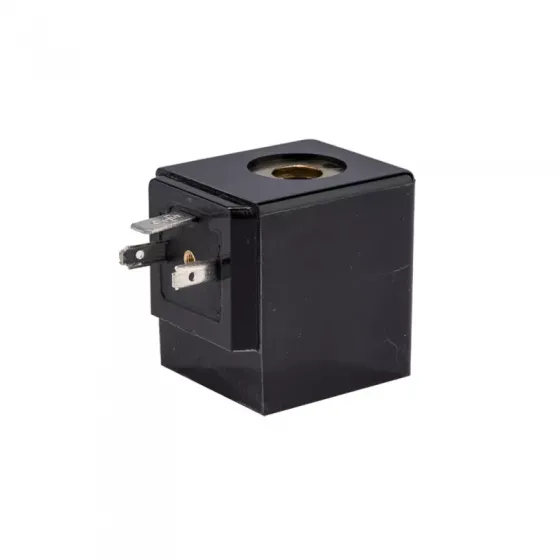

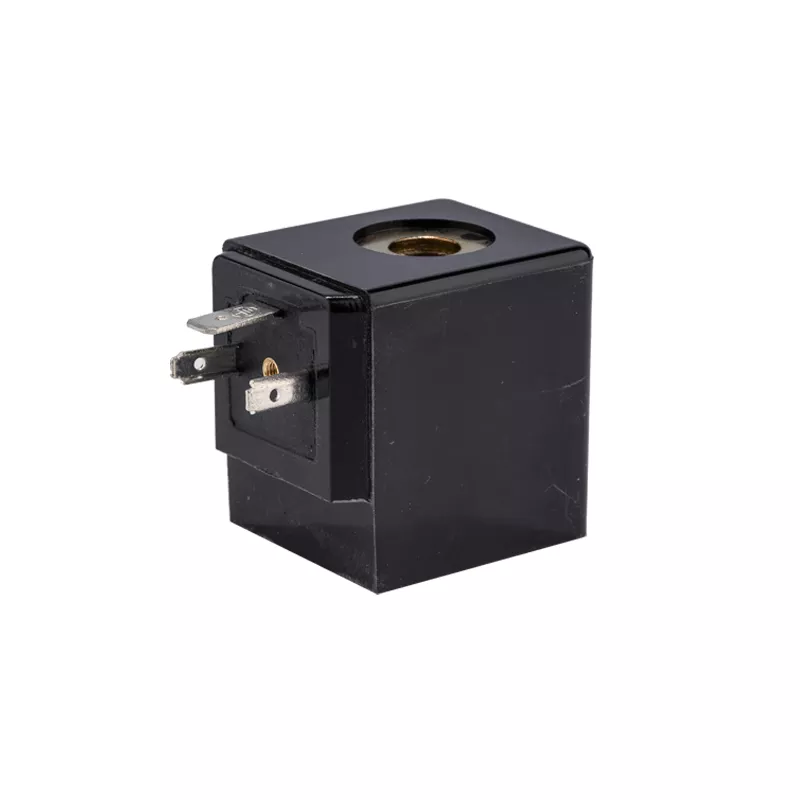

SB257 Pneumatic Coil

  • Diameter:14.5mm,Height:42.5mm

  • 24V DC solenoid coil for drain valve

  • Low voltage coil for drain valve

  • Large force solenoid coil

  • Large inductance soleonoid coil

Product Details

Normal VoltageAC220V AC110V DC24V DC12V
Normal PowerAC28VA
DC14W 18W 20W
Other voltage and power can be customized
Insulation ClassH
Connection TypeDIN43650A
Diameter14.5 mm

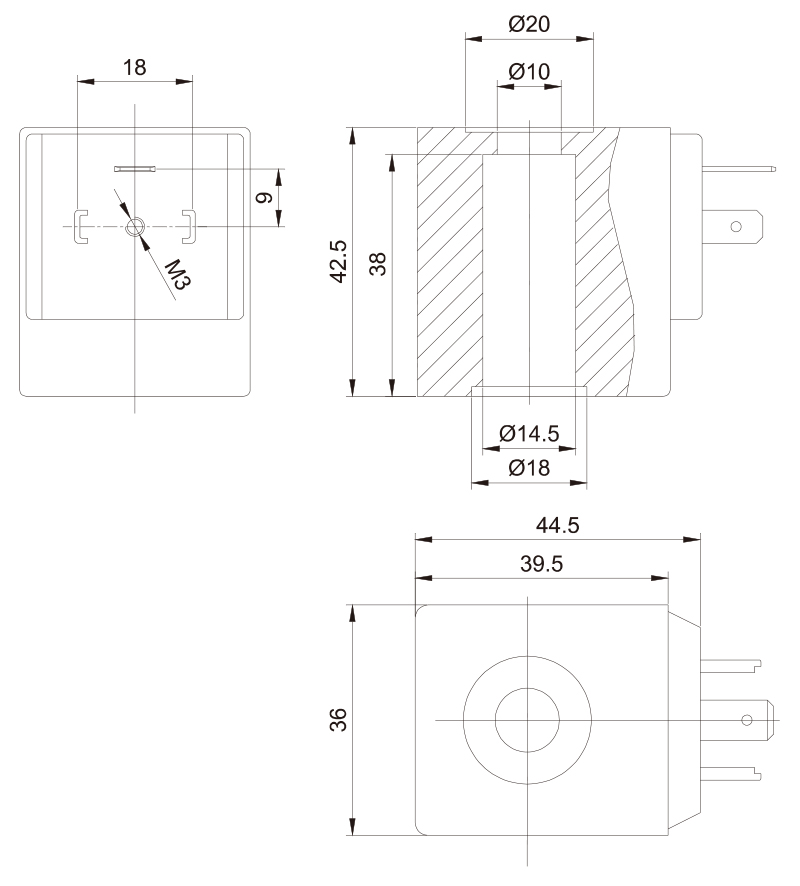

Overall Dimension

SB257 Pneumatic Coil
